WMX WING - Motorized fader expansion wing for WMX1 controllers

Overview
The ADJ WMX WING, powered by WOLFMIX, is a control expansion for the WMX1, WMX1 MK2 and WMX1 MK3 lighting controllers. It adds 8 motorized faders, 8 OLED displays and a 57-button RGB backlit matrix; linked to a WMX1, the two units run as one integrated system with projects synchronized between them, while each keeps WOLFMIX's standalone operation.

Best for
WMX1 owners who want hands-on fader, group and cue list control for live shows, touring rigs, clubs, churches and events.

Highlights

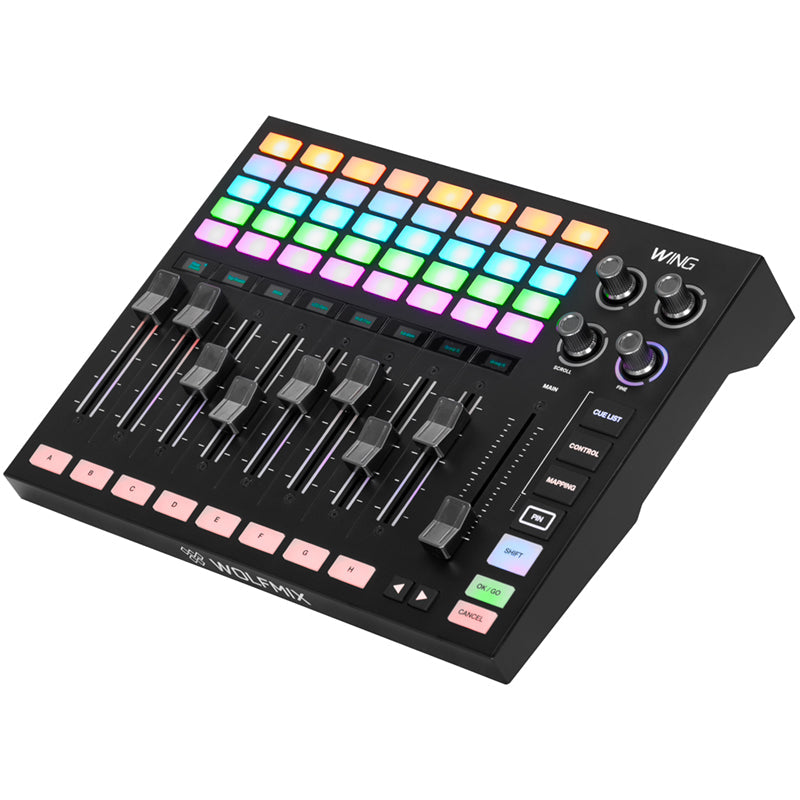

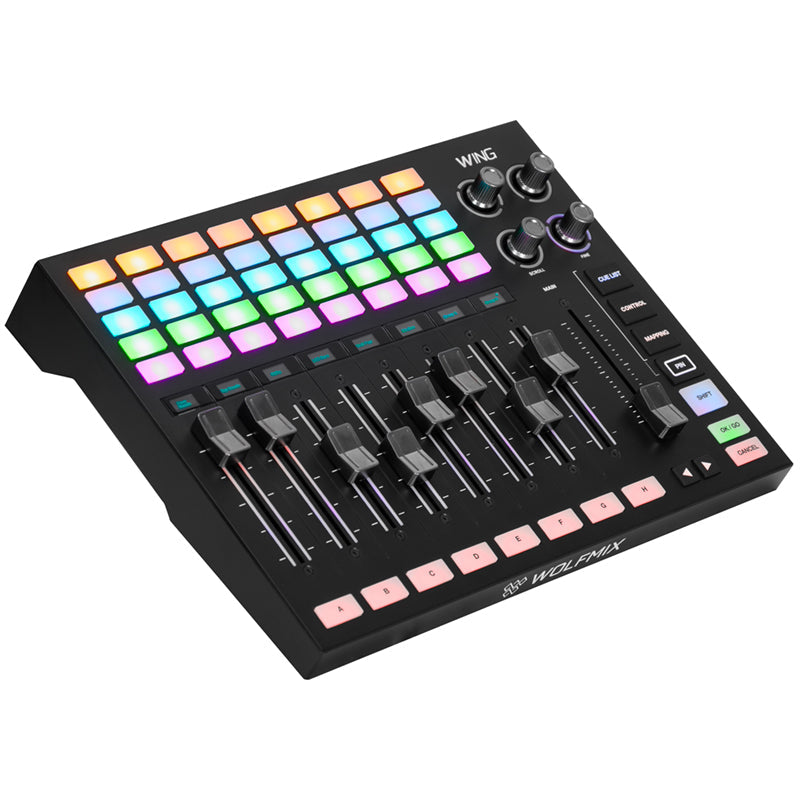

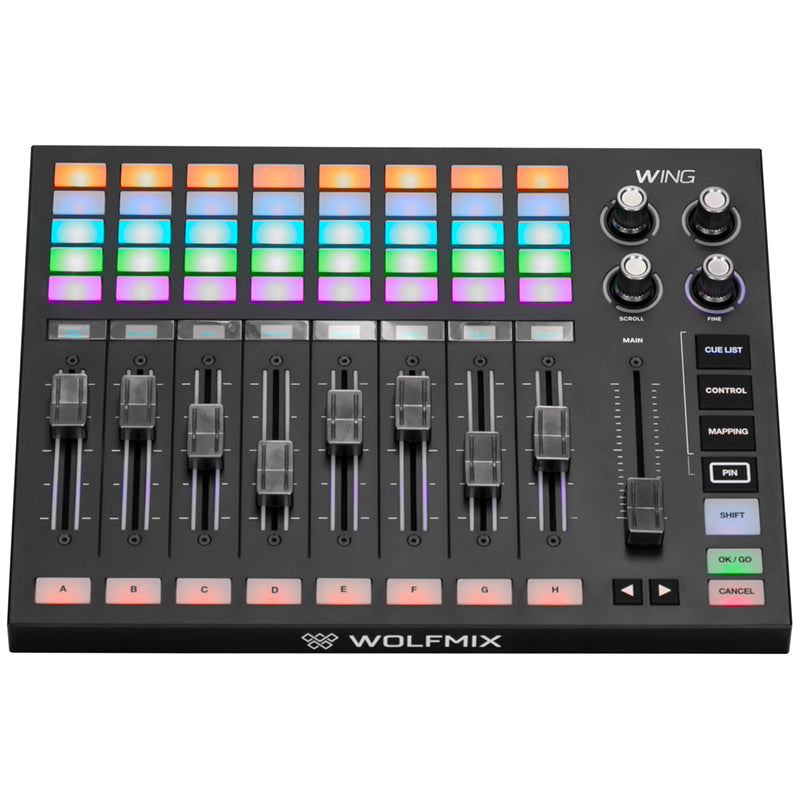

• 8 motorized faders with touch-sensitive caps and RGB lightguides, plus a main fader
• 8 OLED displays and 57 RGB backlit buttons, including an 8 x 5 matrix and 8 group select buttons
• Cue List, Control and Mapping modes; up to 100 cue lists and 5,000 cues with MIDI Time Code support
• 2 DMX universes included (4 with add-on), up to 8 universes / 4,096 channels when fused with a WMX1
• Works as a generic MIDI controller when no project is loaded; 100 mm VESA mount

Key Specs

• Compatible with: ADJ WMX1, WMX1 MK2, WMX1 MK3
• Controls: 8 motorized faders + main fader, 57 RGB backlit buttons, 4 rotary encoders
• Displays: 8 OLED, 64 x 32 pixels each

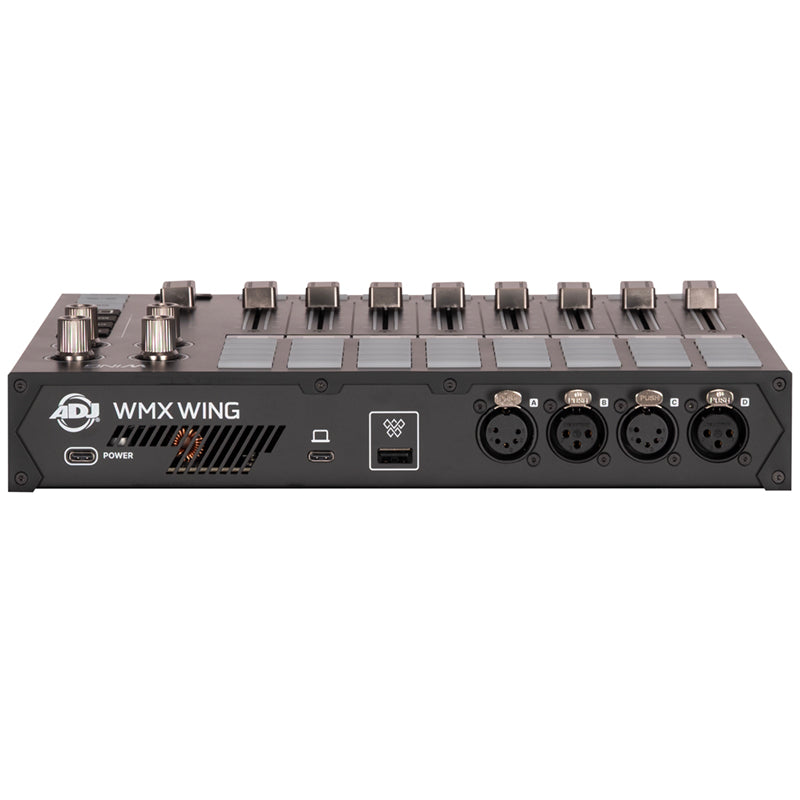

• DMX outputs: 2 x 3-pin XLR, 2 x 5-pin XLR (each assignable to any universe)
• Capacity: up to 680 fixtures, 1,500 beams, 50 fixture types, 100 projects
• Fixture library: 30,000+ profiles available, 3,000+ stored on the controller

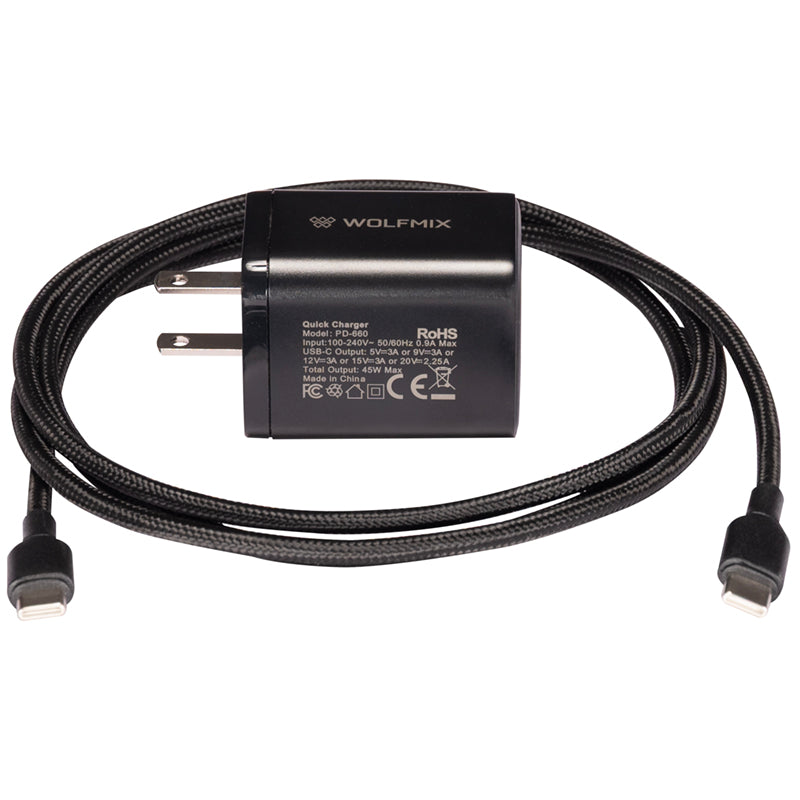

• Connectivity: USB-C power (15 V, 3 A), USB-C data, USB-A (connects and powers a WMX1)
• Construction: ABS housing, powder-coated steel base plate, 100 mm VESA (M4)
• Dimensions: 11.4 x 8.7 x 2.25 in (290 x 220 x 57 mm)
• Weight: 3.4 lb (1.54 kg)
