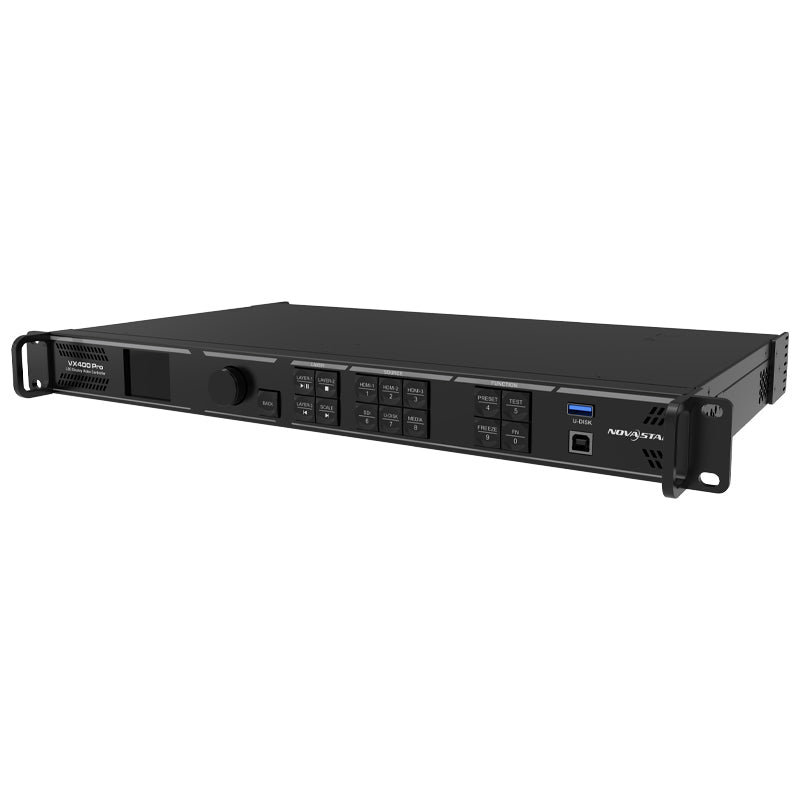

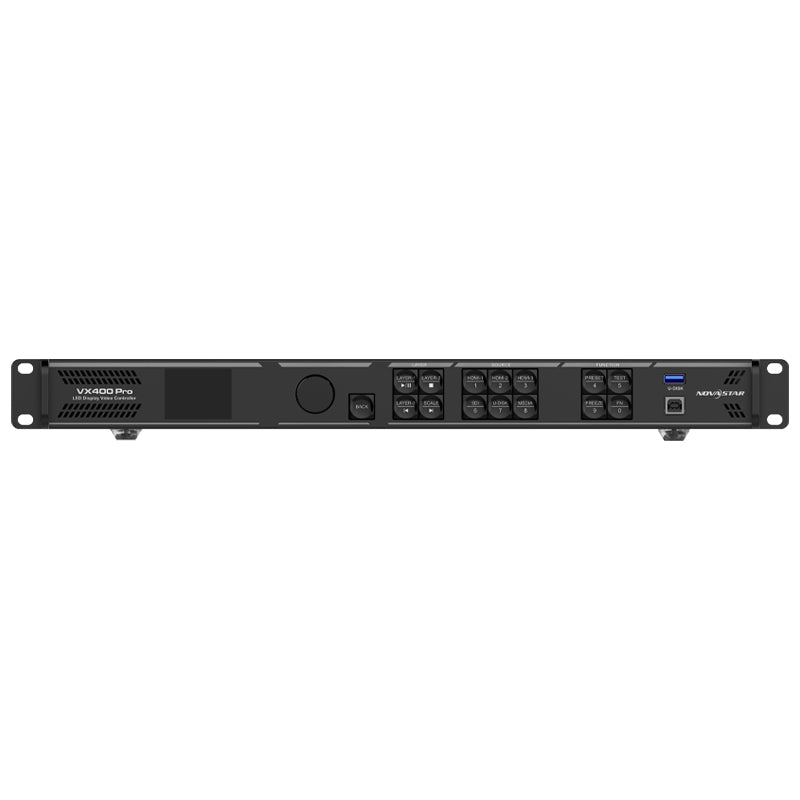

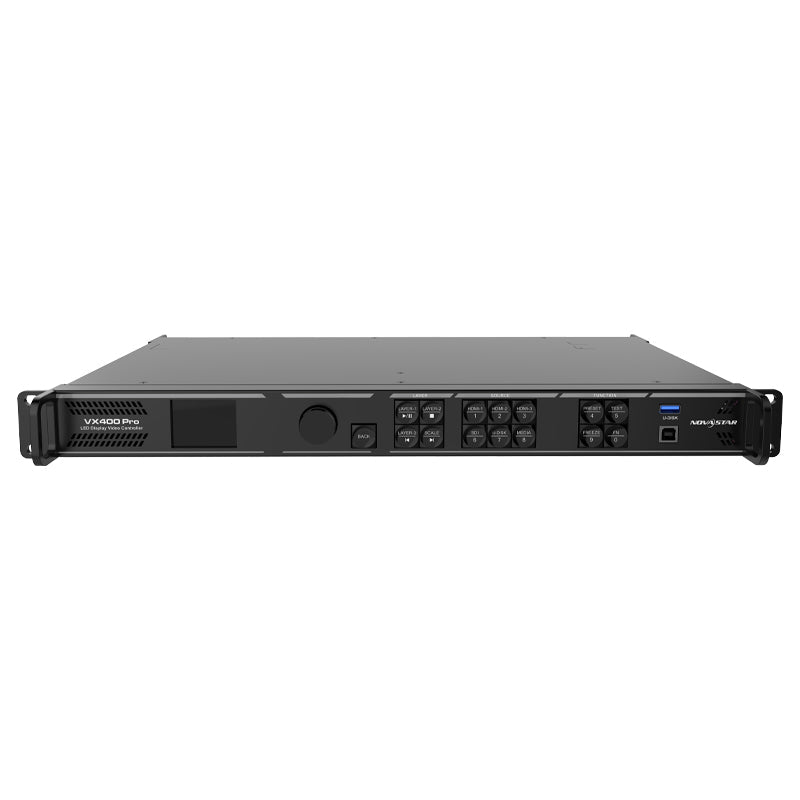

VX400 PRO - Video controller

Overview
The NovaStar VX400 Pro is an all-in-one LED video controller and processor for professional LED displays. It drives up to 2.6 million pixels from 4 Gigabit Ethernet outputs and accepts 4096 x 2160 @ 60Hz signals over HDMI 2.0.

Best for
Live events and installed LED video walls.

Highlights

• Up to 6 layers with adjustable size, position, priority and aspect ratio
• Zero-frame latency option
• USB media playback (JPEG, PNG, BMP, MP4)
• Device, input source and Ethernet port backup
• Control from the front panel, NovaLCT, Unico web interface or VICP app
• 256 presets

Key Specs

• Inputs: 1x HDMI 2.0, 2x HDMI 1.3, 1x 3G-SDI, 1x 10G optical fiber, 1x USB 3.0
• LED outputs: 4x Gigabit Ethernet, 2x optical fiber
• Monitoring output: HDMI 1.3, 1920 x 1080 @ 60Hz
• Pixel capacity: 2.6 million pixels
• Max output size: 10,240 px wide x 8,192 px high
• Video bit depth: 8/10/12-bit
• Color formats: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
• Audio: HDMI embedded, 3.5 mm input/output
