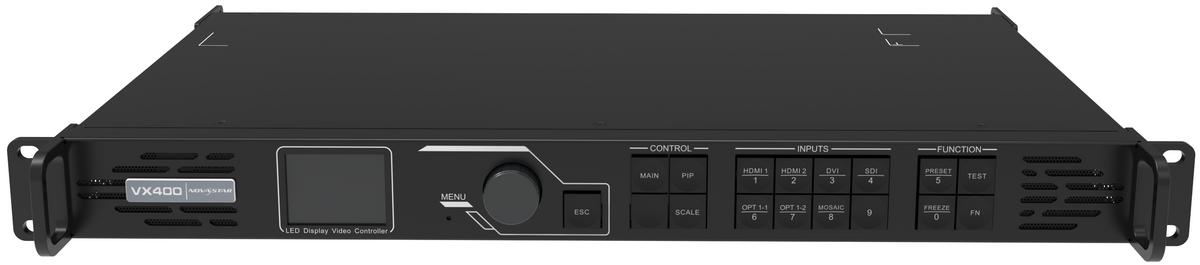

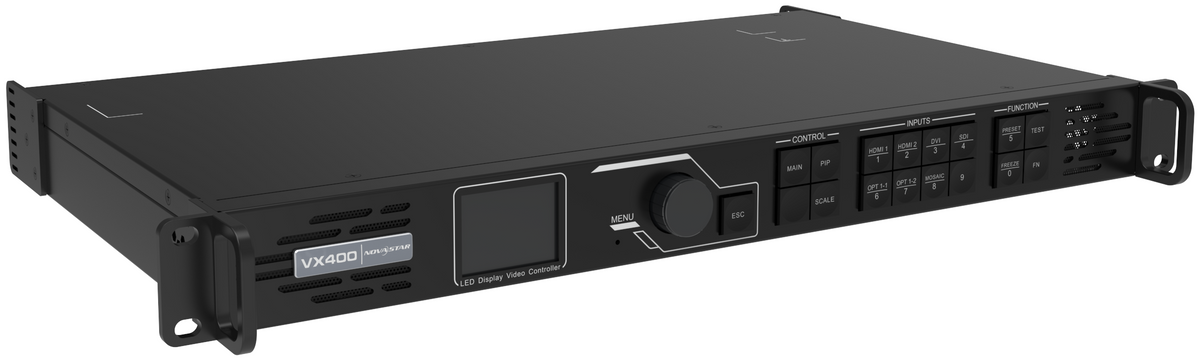

VX400 - Video controller

Overview
The NovaStar VX400 is an all-in-one controller that combines video processing and video control in one unit. It drives up to 2.6 million pixels across 4 Ethernet ports, with output up to 10,240 pixels wide.

Best for
Medium and high-end rental, stage control systems and fine-pitch LED displays.

Highlights

• Video controller, fiber converter and bypass working modes
• Stepless output scaling and low latency (20 lines with bypass mode)
• 2 layers with adjustable size, position and priority
• Pixel-level brightness and chroma calibration
• Up to 10 user presets; cascade up to 4 units
• Configured with NovaStar NovaLCT and V-Can software

Key Specs

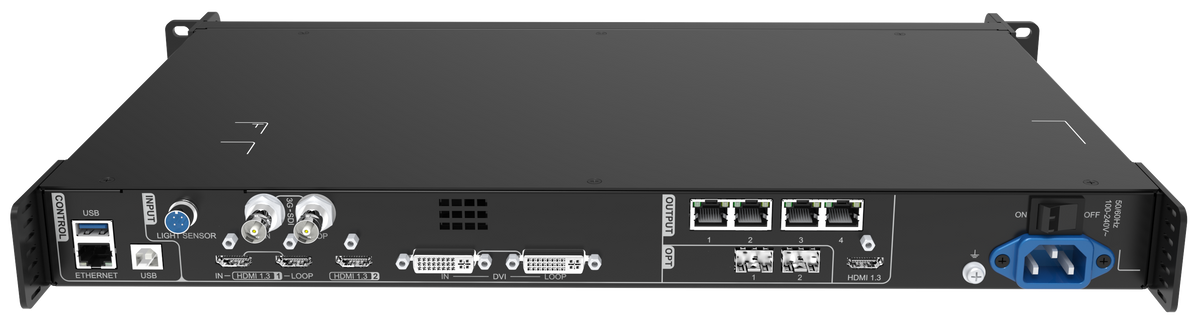

• Inputs: 2x HDMI 1.3 (one with loop), 1x DVI (with loop), 1x 3G-SDI (with loop), 1x optical fiber
• Outputs: 4x Gigabit Ethernet, 2x fiber, 1x HDMI 1.3 (monitoring)
• Pixel capacity: Up to 2.6 million pixels
• Max output size: 10,240 px wide x 8,192 px high
• Power: 100-240V AC, 50/60Hz
• Dimensions: 19.0 x 10.8 x 1.7 in (482 x 275 x 44 mm)
• Weight: approx. 8.8 lb (4 kg)
