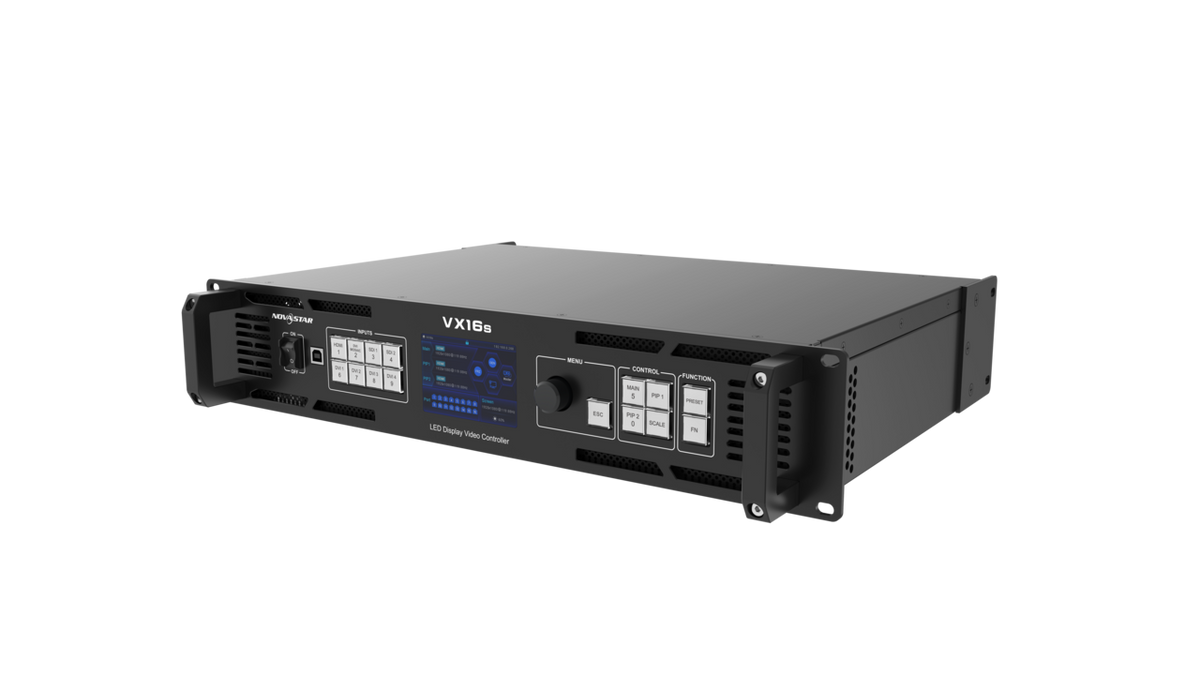

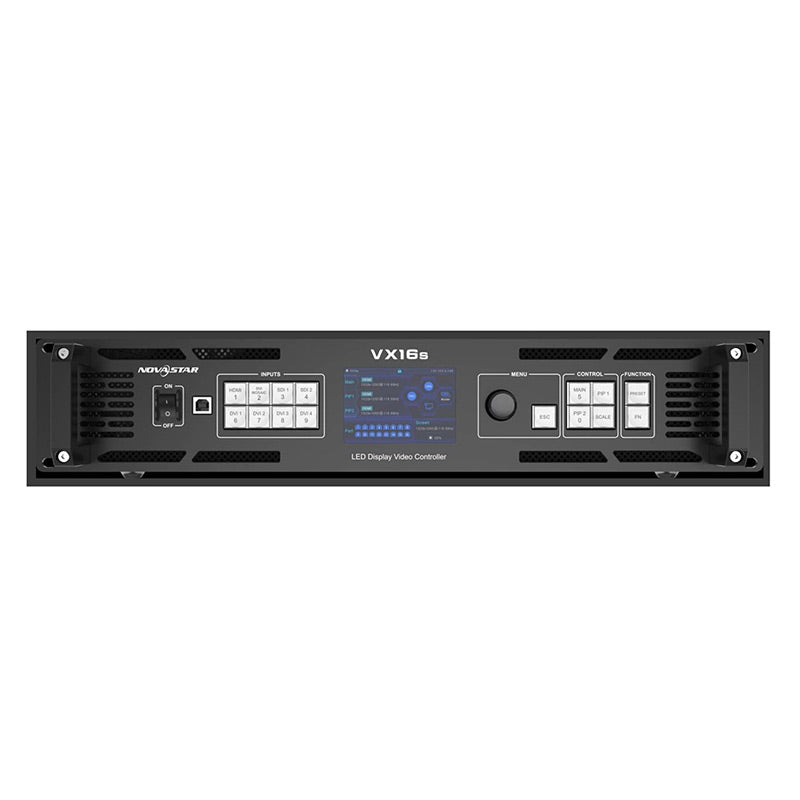

VX16S - LED display video processor

Overview
The NovaStar VX16s is an all-in-one controller that combines video processing, video control and LED screen configuration in one unit. It processes 4K x 2K @ 60Hz video and drives up to 10.4 million pixels from 16 Ethernet outputs.

Best for
Stage control, conferences, events, exhibitions and rental LED displays.

Highlights

• 3 independent layers: one 4K x 2K main layer plus two 2K x 1K PIP layers
• DVI mosaic of up to 4 inputs
• 3D display support
• Output frame rates from 23.98Hz to 119.88Hz
• 10 user presets

Key Specs

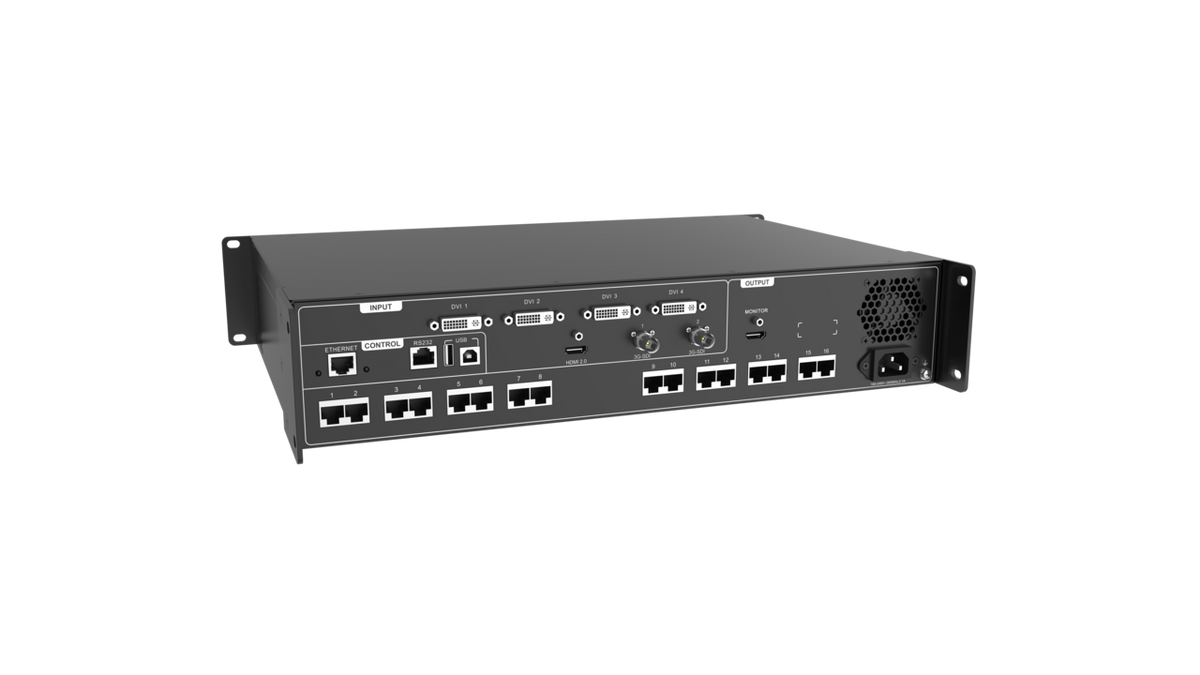

• Inputs: 1x HDMI 2.0, 4x single-link DVI, 2x 3G-SDI
• LED outputs: 16x Ethernet ports
• Pixel capacity: 10,400,000 pixels
• Power: 100-240V~, 50/60Hz, 2.1A; 70W consumption
• Operating temperature: 0°C to 50°C
• Dimensions: 19.0 x 14.7 x 3.7 in (482.6 x 372.5 x 94.6 mm)
• Weight: 13.7 lb (6.22 kg) net, 21.6 lb (9.78 kg) gross
• Package includes: EU, US and UK power cords, Cat5e Ethernet cable, USB cable, DVI cable, HDMI cable, quick start guide
