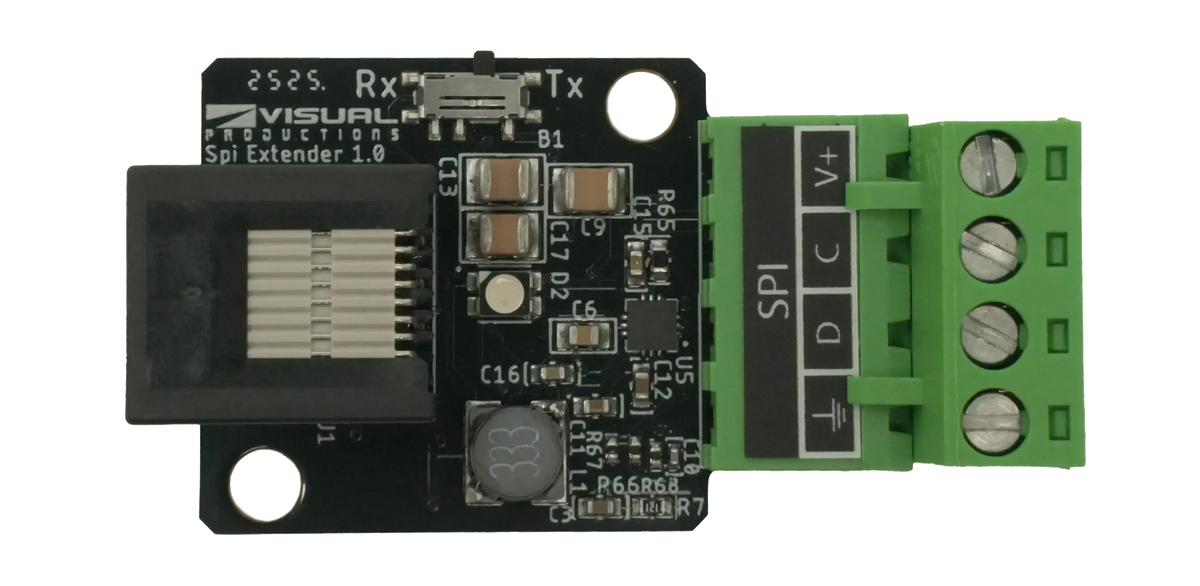

SPI Extender - SPI Protocol extension device

Overview
The SpiExtender from Visual Productions extends SPI pixel installations by converting SPI into a differential signal that can travel long distances over standard CAT5 cable. Two units are used per signal path: one as transmitter at the controller and one as receiver at the LEDs.

Compatible with
SpiNode and third-party SPI pixel controllers.

Highlights

• Extends SPI runs up to 250 m (820 ft)
• Uses standard CAT5 or better cable
• Built-in switch selects transmitter or receiver mode
• Works with SPI with or without clock

Key Specs

• Part Number: VPSPIExtender
• Range: up to 820 ft (250 m)
• Cable: CAT5 or higher
• Signal: SPI with or without clock
• Power: 5-24V DC 100mA
• Operating temperature: -4°F to 122°F (-20°C to +50°C)
• Compliance: CE, RoHS, UKCA
