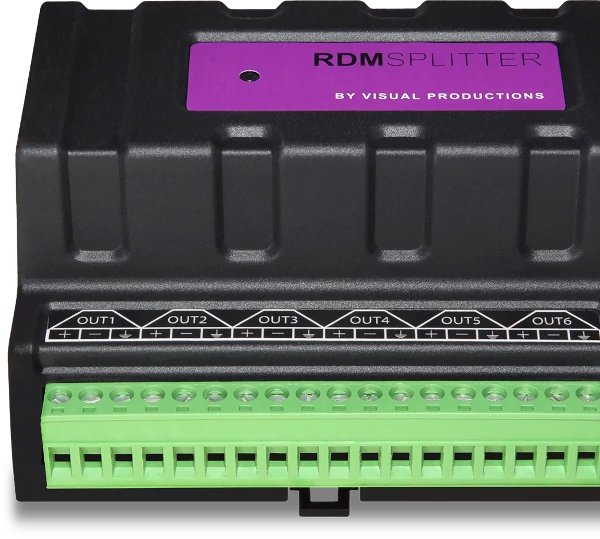

RdmSplitter (RJ45) - DIN rail mounted DMX+RDM splitter/booster
Regular price
$495.00 USD
Sale price
Regular price
Overview
The RdmSplitter from Visual Productions is a DIN-rail mounted DMX/RDM splitter and booster with six individually opto-isolated outputs. It extends a DMX line beyond the 32-device limit, enables star-topology cabling and passes RDM feedback. This version uses RJ45 connectors.
Best for
Installations that need to distribute one DMX/RDM line to multiple fixture runs from a DIN-rail cabinet.
Highlights
- 6 outputs, each individually opto-isolated for ground-loop protection
- Each output drives up to 32 additional devices over cable runs of up to 300 m
- Supports RDM (ANSI E1.20) feedback
- Allows star-topology cabling
- Works with CueCore2, QuadCore, IoCore2, B-Station2 and Kiosc systems
Key Specs
- Part Number: VPRDMSplitter (RJ45)
- Outputs: 6, individually opto-isolated
- Connectors: RJ45
- Standards: USITT DMX512-A (ANSI E1.11), RDM (ANSI E1.20)
- Power: 9-24V DC 500mA (external PSU optional)
- Dimensions: 4.1 x 3.4 x 2.4 in (105 x 86 x 60 mm)
- Weight: 0.26 lb (120 g)
- Mounting: DIN rail
