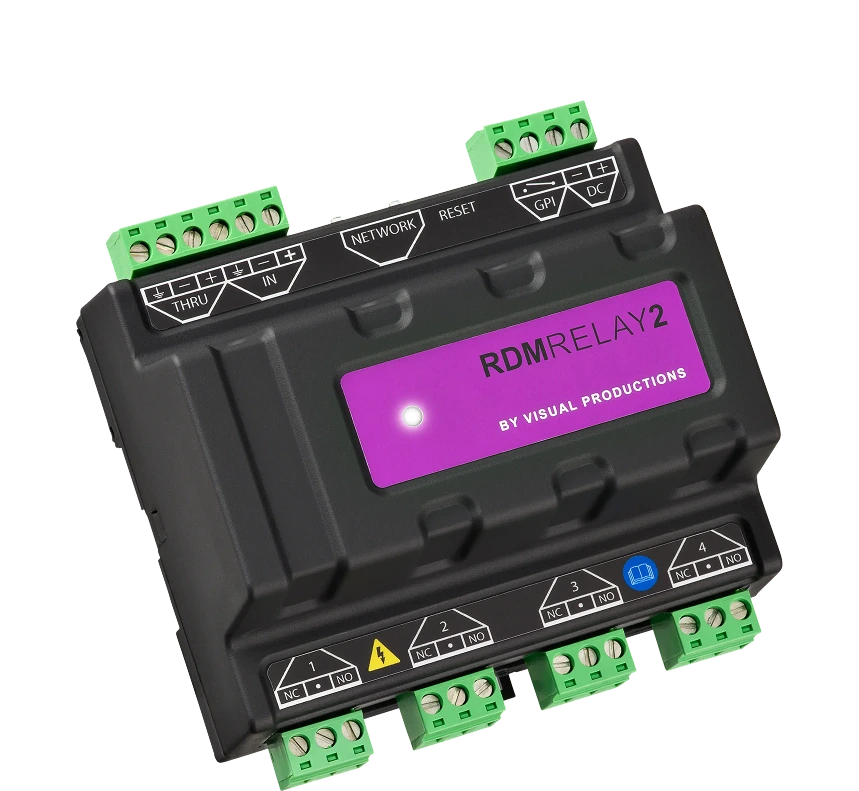

RdmRelay2 - DIN rail DMX/RDM 4-channel relay with power monitoring

Overview
RdmRelay2 from Visual Productions is a networked, DIN-rail 4-channel relay controllable via DMX, RDM and TCP/IP. Its four mains-rated relays switch 110-230 V loads up to 12 A per channel, and built-in current sensors let you monitor each load through the web interface and over RDM.

Best for
Installations where a lighting or show-control system must switch non-DMX equipment or safely power down lighting circuits.

Highlights

• 4 mains-rated relays, 110-230 V up to 12 A per channel
• Control via DMX, RDM, Art-Net, sACN, OSC, UDP and TCP
• Current monitoring on all relays, readable via web interface and RDM
• Web-based configuration and a dedicated API for integration
• Compact DIN-rail form factor

Key Specs

• Part Number: VPRDMRelay2
• Relays: 4; 12 A at 250 V AC / 30 V DC resistive, 6 A inductive
• Protocols: DMX512-A (ANSI E1.11), RDM (ANSI E1.20), Art-Net, sACN, OSC, UDP, TCP
• Power: 9-24 V DC, 5 W (PSU optional)
• Mounting: DIN rail
• Operating temperature: -4 to 122 F (-20 to 50 C)
• Compliance: CE, RoHS, UKCA; UL/CSA pending
