RdmRelay - DIN rail DMX RDM 4-Channel Relay
Regular price
$450.00 USD
Sale price
Regular price
Overview

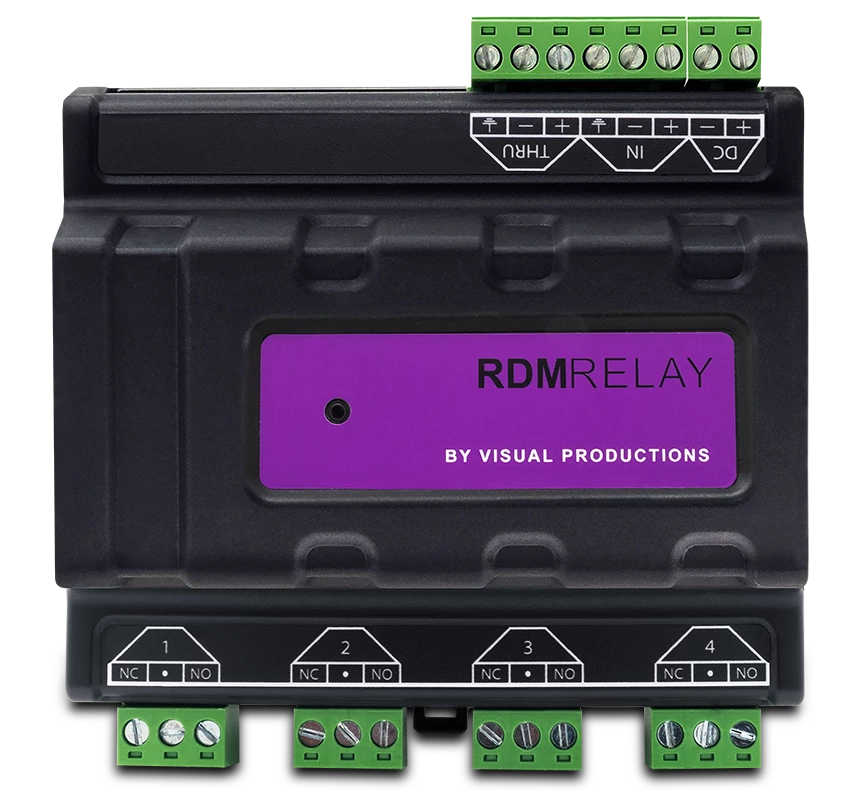

The RdmRelay from Visual Productions is a DIN-rail mounted DMX/RDM 4-channel relay. It lets a DMX lighting controller switch non-DMX equipment and mains loads, such as house lights, motors or power circuits, and can be configured remotely over RDM.
Best for
Installations where a DMX controller must switch mains-powered equipment that has no DMX input.
Highlights
- 4 heavy-duty relays for 110V/230V equipment
- Controlled via DMX512-A with RDM configuration
- Compact DIN-rail form factor for electrical cabinets
Key Specs
- Part Number: VPRDMRelay
- Relays: 4
- Switching capacity: 110V/230V up to 16A (resistive load)
- Control: DMX512-A (ANSI E1.11), RDM (ANSI E1.20)
- Power: 9-24V DC, 5W (PSU optional)
- Mounting: DIN rail
