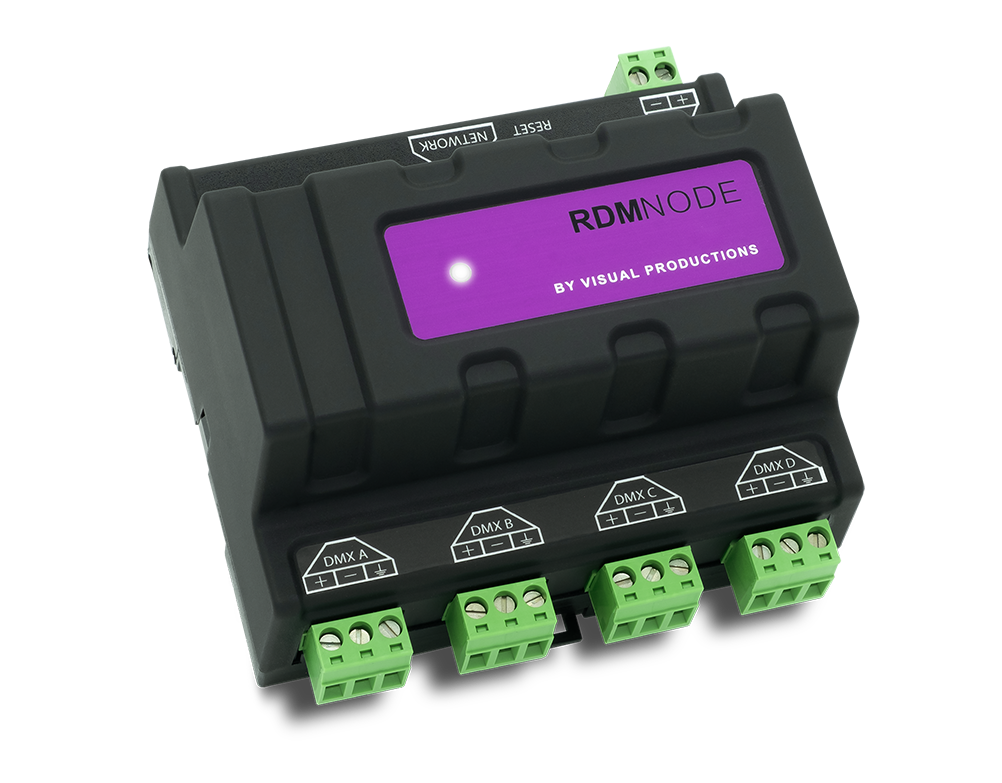

RdmNode - DIN Rail 4Port eDMX converter

Overview
The RdmNode from Visual Productions is a compact 4-port eDMX converter that turns Art-Net and sACN into DMX-512 and back. Each port is opto-isolated and bi-directional, RDM is passed over Art-Net, and conversions are set up in a drag-and-drop web interface.

Best for
System integration and architectural projects that need network-to-DMX conversion, or four extra universes for a CueCore3.

Highlights

• 4 opto-isolated, bi-directional DMX ports
• Art-Net and sACN to DMX conversion in both directions
• RDM over Art-Net for fixture discovery and configuration
• Drag-and-drop web configuration with factory and user presets
• Adds four universes to a CueCore3 system
• Powered by DC supply or PoE

Key Specs

• Part Number: VPRDMNode
• Ethernet: 1 x RJ45
• DMX ports: 4 x DMX512-A (ANSI E1.11), opto-isolated, bi-directional
• Protocols: Art-Net, sACN, RDM over Art-Net
• Power: 9-24V DC 500mA or PoE Class I
• Dimensions: 4.1 x 3.4 x 2.4 in (105 x 86 x 60 mm)
• Operating temperature: -4°F to 122°F (-20°C to +50°C)
• Operating humidity: 10% to 80% non-condensing
• Mounting: DIN rail
• Compliance: CE, RoHS, UKCA
