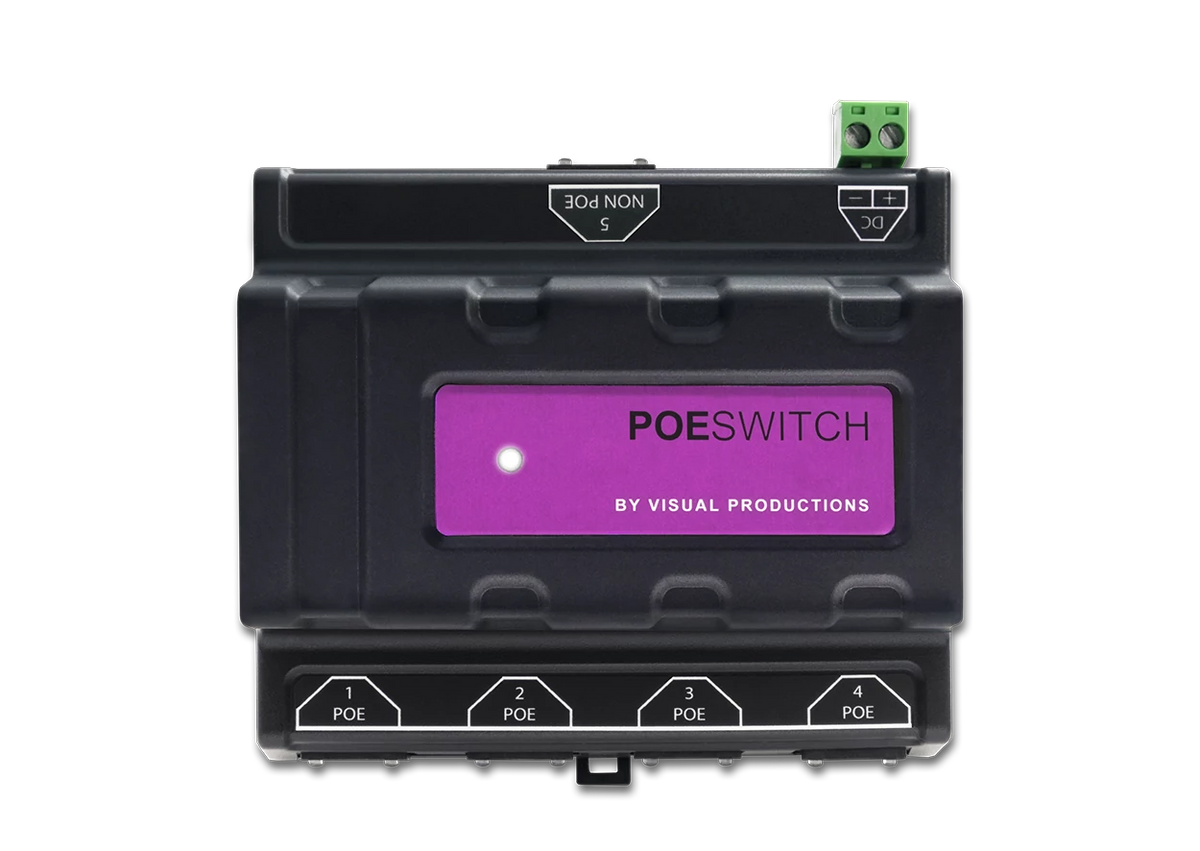

PoE Switch - 4-port POE Network Switch with 1Gbps uplink

Overview
The PoeSwitch from Visual Productions is an unmanaged, DIN-rail mounted network switch with four PoE ports and a 1 Gbps uplink. It powers and connects Visual Productions controllers and panels over a single cable each, with fanless, plug-and-play operation.

Best for
Small to medium Visual Productions systems that need PoE power and networking in a DIN-rail cabinet.

Highlights

• 4 PoE ports plus 1 Gbps uplink
• 60W PoE budget, up to 15.4W per port
• Unmanaged plug-and-play operation
• Fanless, silent design
• DIN-rail mounting

Key Specs

• Part Number: VPPoeSwitch
• Ports: 4 x 10/100 Mbps PoE, 1 x 1 Gbps uplink
• PoE: IEEE 802.3af, 60W budget, 15.4W per port max.
• Power: 48V DC 60W max. (PSU optional)
• QoS: IPv4/IPv6
• Operating temperature: -4°F to 122°F (-20°C to +50°C)
• Operating humidity: 10% to 80% non-condensing
• Mounting: DIN rail
• Compliance: CE, RoHS, UKCA
