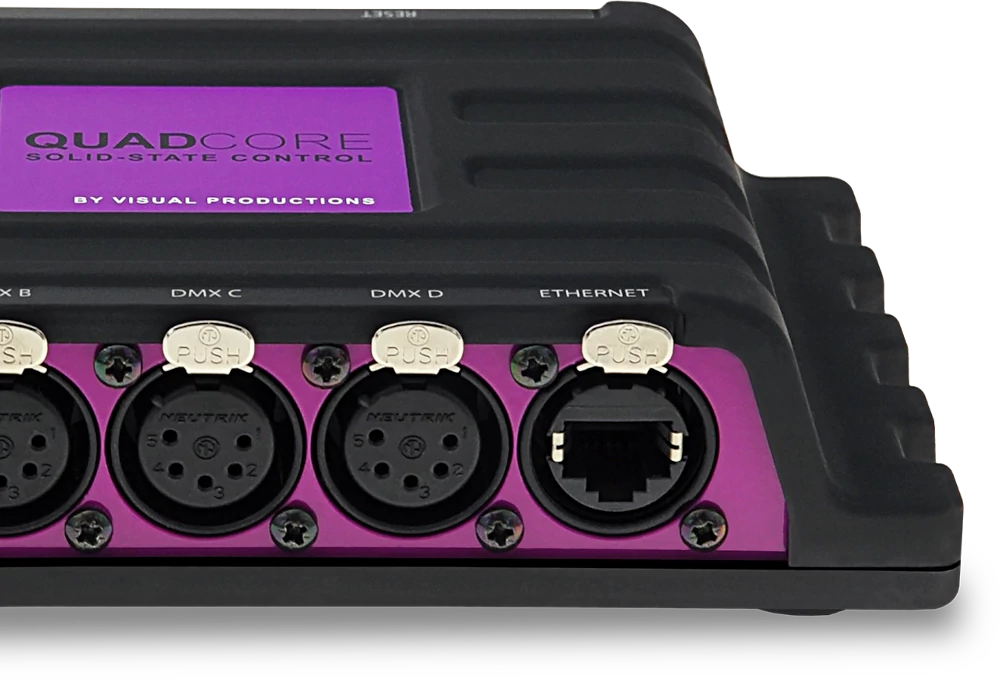

QuadCore - 4-Universe 6 playback Architectural Lighting Controller

Overview
The QuadCore from Visual Productions is a compact, solid-state 4-universe architectural lighting controller for permanent installations and channel-heavy projects such as pixel mapping. With no moving parts it is designed for fit-and-forget operation, running recorded shows and programmed playbacks stand-alone.

Best for
Installations that need four universes of stand-alone playback, such as LED facades, pixel-mapped features and multi-zone architectural lighting.

Highlights

• Four opto-isolated, bi-directional DMX ports
• 6 independent playbacks
• Records external DMX sources with seamless loop creation
• Scheduling with real-time clock, weekdays and sunrise/sunset, plus NTP sync
• Show-control triggers via TCP, UDP and OSC; Kiosc compatible
• Master/slave protocol for synchronizing multiple units

Key Specs

• Part Number: QUADCORE
• DMX ports: 4 x DMX-512, opto-isolated, bi-directional
• Playbacks: 6
• Protocols: Art-Net and sACN (in/out), KiNet (out), TCP (in), UDP and OSC (in/out)
• Timecode: Art-Net timecode
• Power: PoE Class I
• Mounting: desktop or DIN rail; optional 19 in rackmount adapter
• Security: Kensington lock, locked power cable
• Compliance: CE, RoHS, UKCA, EAC, FCC, UL62368-1, CSA C22.2 62368-1:19
