10" Automatic Round Damper (ARD) 220V (CE)

Overview

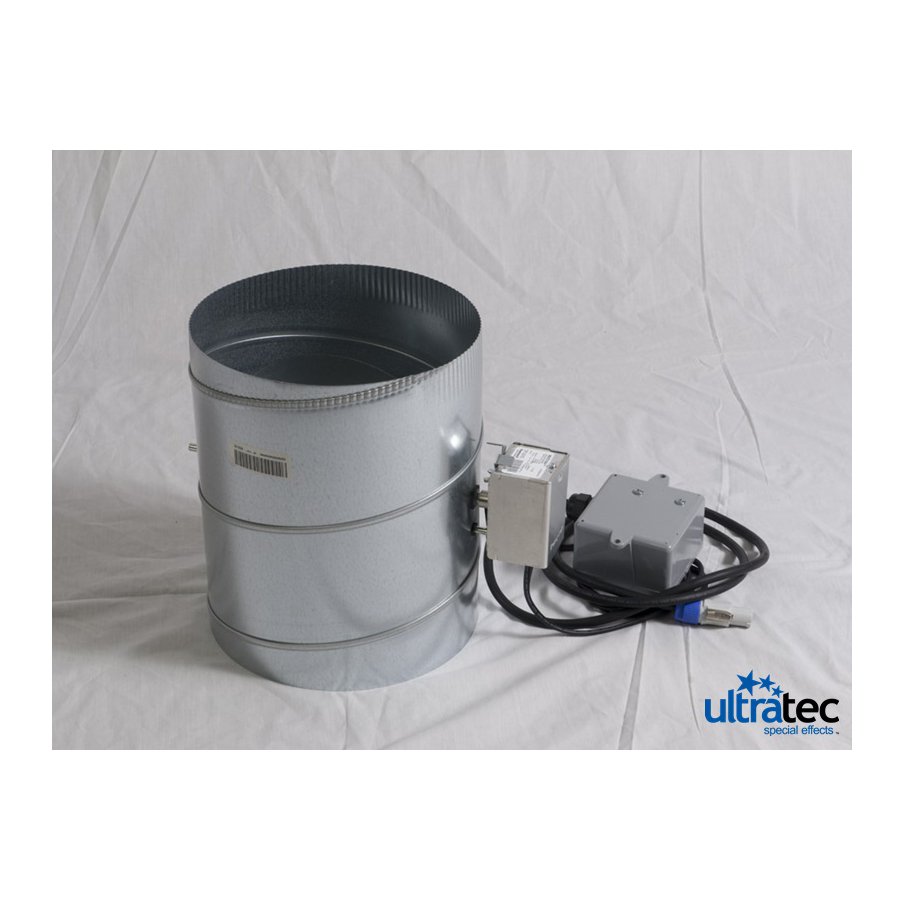

The Ultratec 10 in Automatic Round Damper (ARD) is an electrically operated inline damper that opens and closes 10 in low fog ducting. It fits inside 10 in rigid pipe (held with sheet metal screws) or 10 in flex hose (held with a worm gear clamp), letting you divert fog from an Eclipse to different branches or fog curtain sections. It is spring-return: applying power closes it and removing power opens it.

Compatible with
Ultratec Eclipse Low Fog Generator, Fog Curtain and 10 in ducting; DMX control via the Ultratec DMX Interface Box.

Highlights

• Galvanized steel construction
• Fits inside 10 in rigid pipe or 10 in flex hose
• Spring-return operation: power closes, no power opens
• Grey Neutrik PowerCon connector
• DMX control with optional DMX Interface Box (1 channel)

Key Specs

• Part Number: CLF2986
• Voltage: 220V, 50/60 Hz (CE certified)
• Current draw: 0.5 A
• Diameter: 10 in
• Size: 12 in long x 13.5 in high
• Cable: 6 ft 18/3 with Neutrik PowerCon
• DMX: via DMX Interface Box CLF2943
