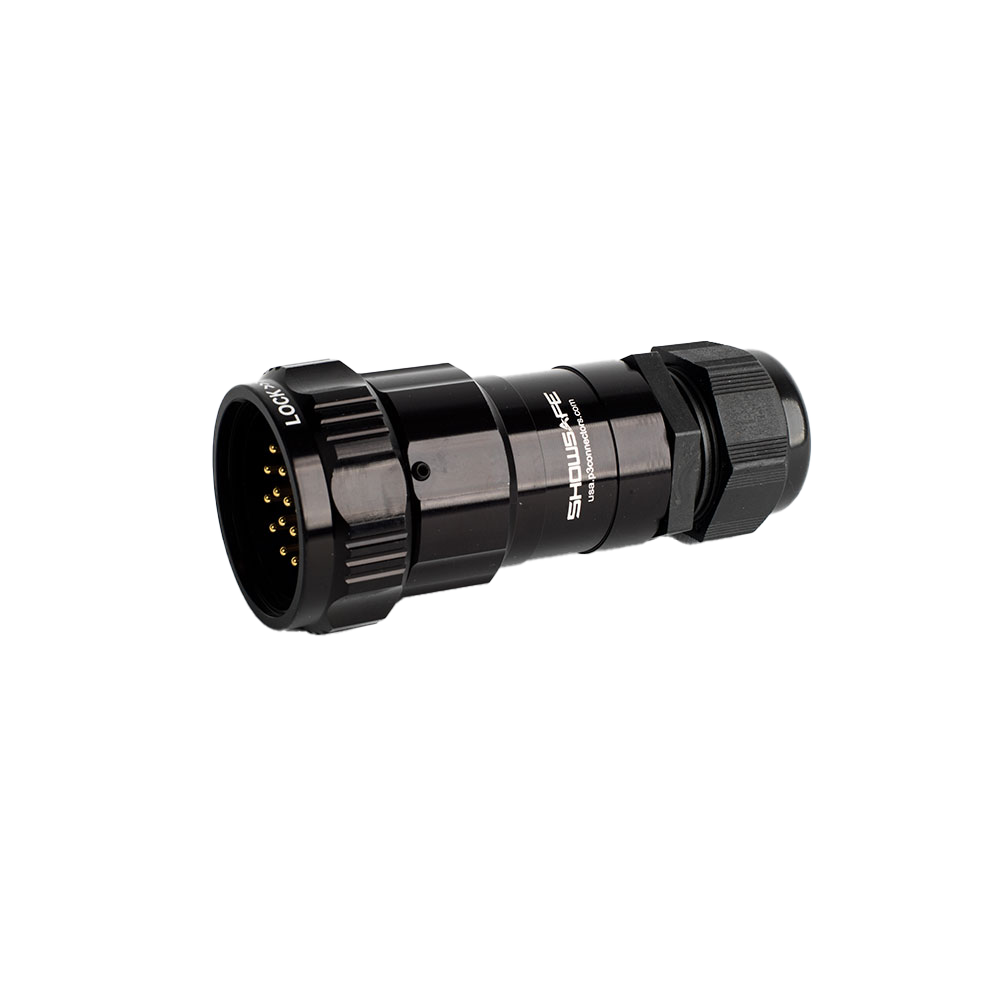

P190151 - Phase 3 19-Pin Male Line/Cable Connector, Solder Termination, Spring Clamp, 6x10mm Max (1.5mm² cable), Black Locking Ring, UL

Overview
Phase 3 Showsafe 19-pin Socapex-compatible multi-pin in-line cable connector, male (plug) with solder contacts and a Spring Clamp, 6x10mm Max (1.5mm² cable) strain relief, black coupling ring. UL listed and made in Great Britain.

Best for
Building and repairing Socapex (SL419-style) 19-pin multicable runs, breakouts and break-ins for 6-circuit lighting distribution.

Key Specs

• Part number: P190151
• Phase 3 part code: P-19.0-L-M-S-SPR-10.0-BK-UL
• Compatible with Socapex SL419-series 19-pin connectors
• Contacts: 19 x 25A, gold-plated multi-point machined contacts
• Gender: Male (pins / plug)
• Mounting: Line/Cable
• Termination: Solder (12-14 AWG / 1.5-2.5mm² wire)
• Cable clamp: Spring Clamp, 6x10mm Max (1.5mm² cable)
• Coupling ring: Black
• Voltage rating: 600V AC / 700V DC max (UL)
• IP67 when mated
• Operating temperature: -55°C to +125°C
• High-impact machined shells with wear-resistant anodised finish
• UL listed (file E483242), RoHS compliant
• Made in Great Britain
