MLCINQUEDRIVE24-TRM-U-120V - CinqueDrive-LED DMX Dimmer - 24VDC 96W Class 2 120 & 277 VAC Terminal Block U-Ground Edison
Regular price
$281.25 USD
Sale price
Regular price
Overview

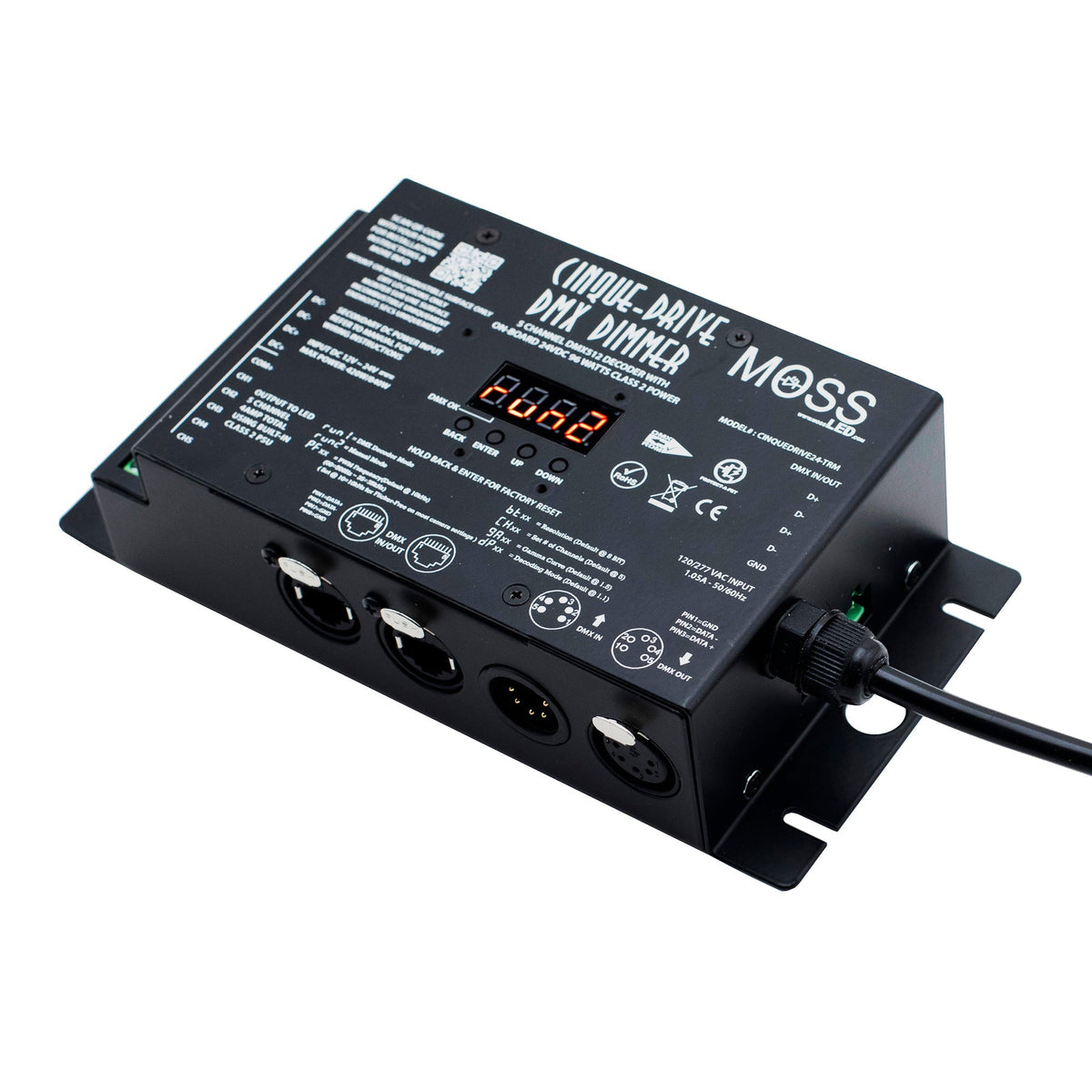

A 5-channel DMX/RDM LED dimmer with a built-in 24VDC 96W Class 2 power supply, fed directly from 120V or 277V AC.
Best for
Installed architectural and theatrical LED tape runs up to 96W
Highlights
- Built-in 96W, 24VDC Class 2 supply (or up to 7A x 5ch with external PSU)
- PWM 500Hz - 35kHz, 8-bit or 16-bit
- Protect-A-Fet short-circuit protection

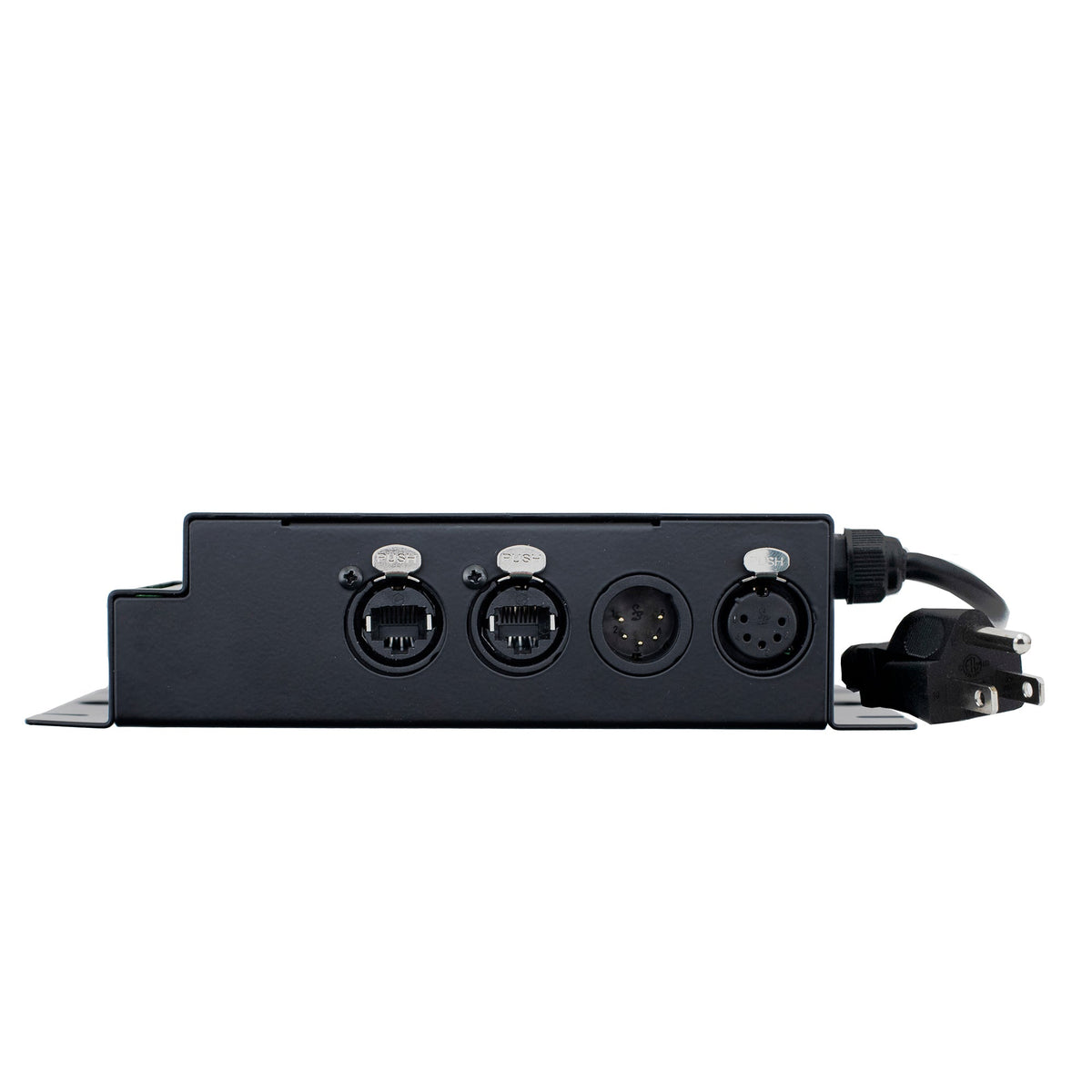

- DMX on 5-pin XLR and etherCON in/out, plus terminal block
- UL, CE and RoHS documentation
Key Specs
- AC input: 105-120VAC or 249-277VAC, 47-63Hz
- Output: 24VDC, 96W (4A total)
- Channels: 5
- Output connector: Terminal block
- Size: 200 x 115 x 48mm
- Weight: 567g
- Rating: Indoor use only
- Part number: MLCINQUEDRIVE24-TRM-U-120V
