WDMX - Transmitter/Receiver

Overview

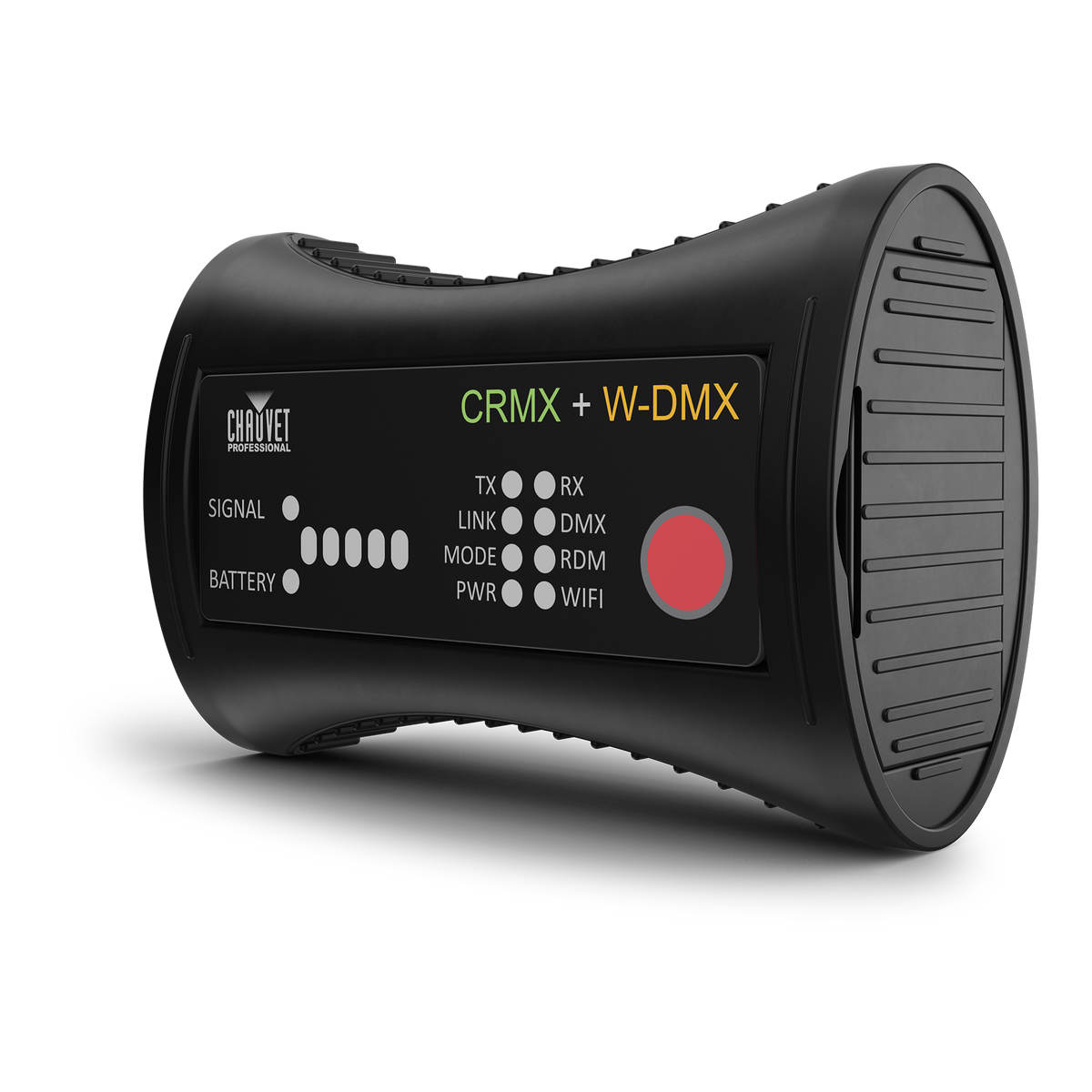

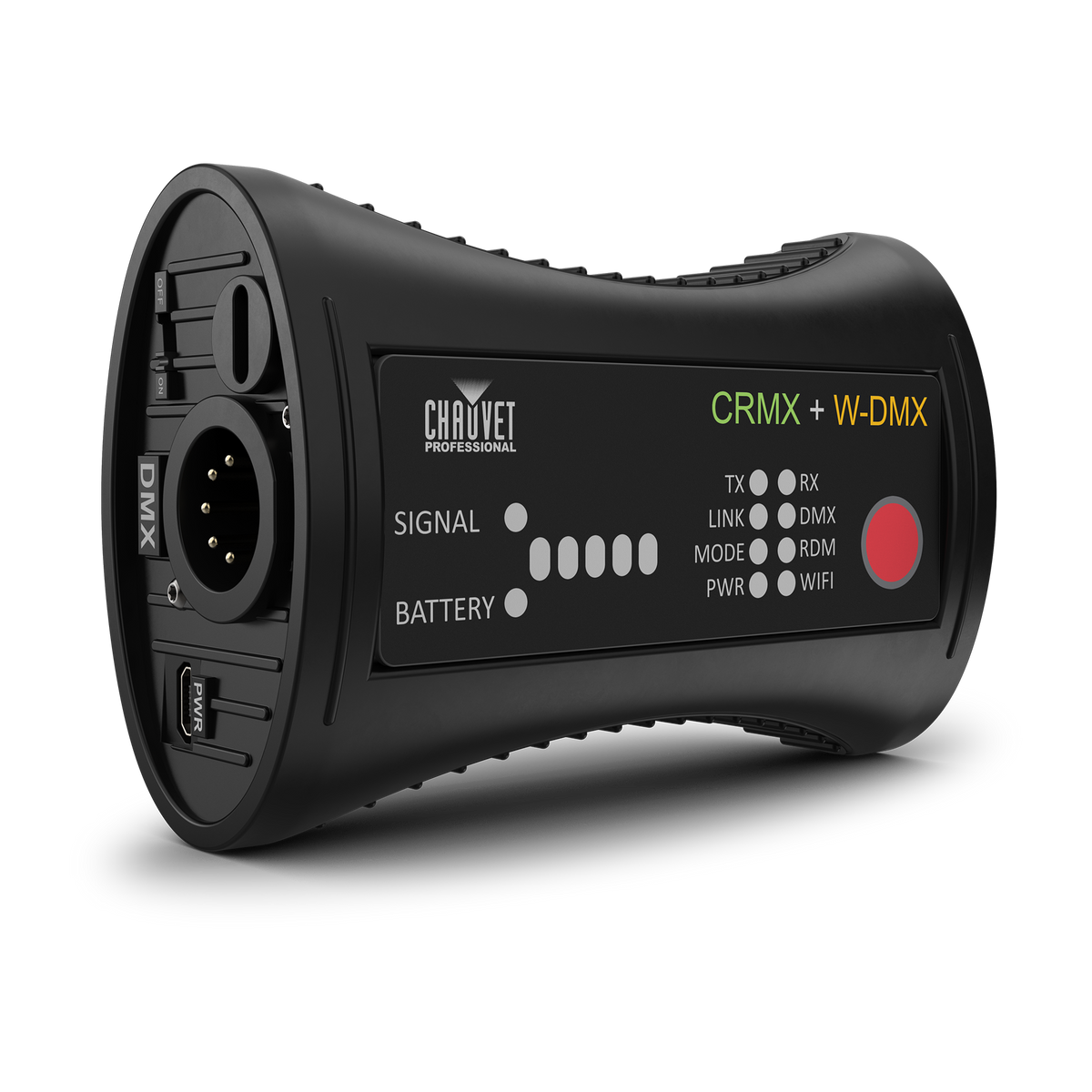

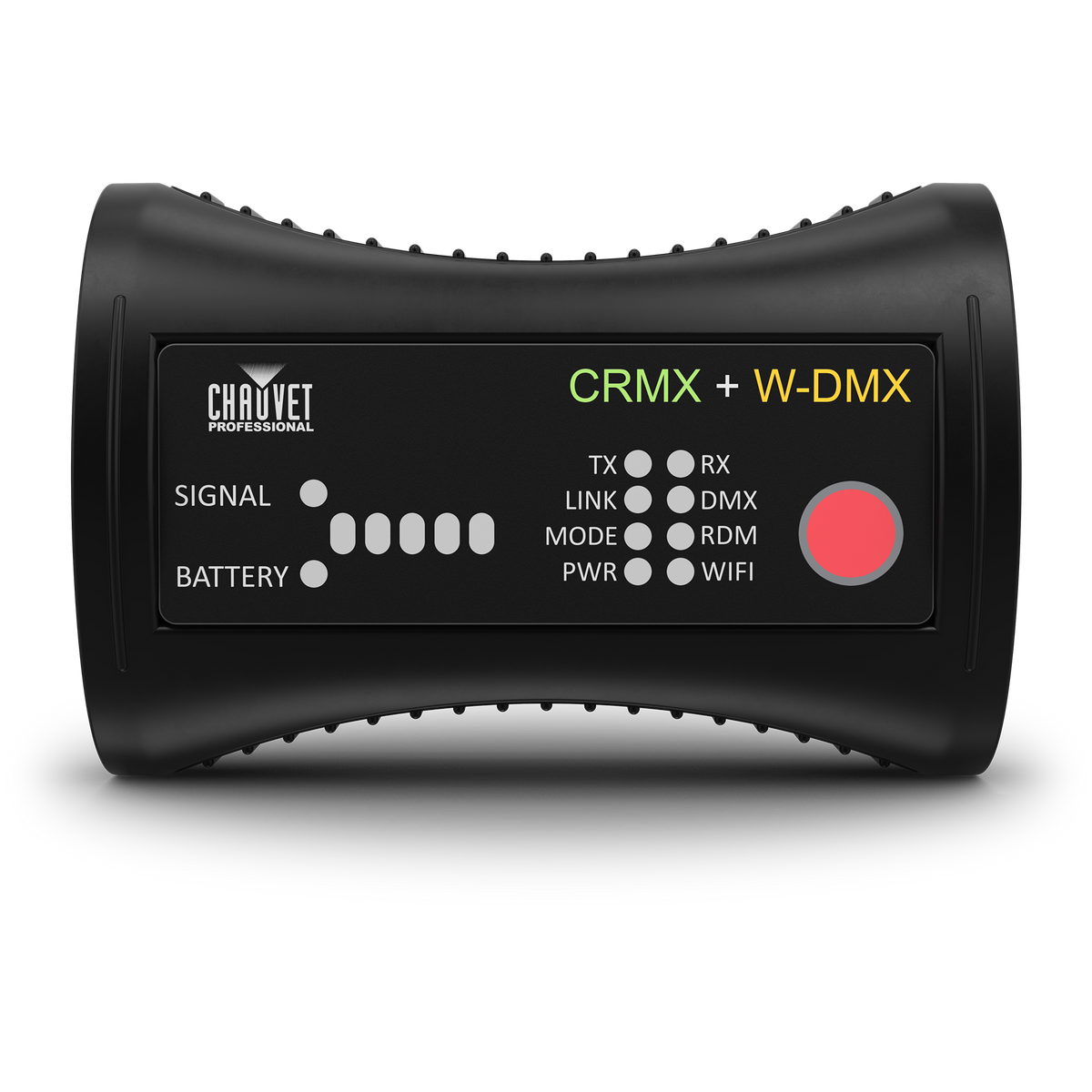

The W-DMX Micro T-1 TRX G6 is a compact, battery- or USB-powered transceiver that transmits or receives wireless DMX and RDM control data over both W-DMX and CRMX protocols, and is backward compatible with earlier G3/G4/G4S/G5 series units.

Best for
Riggers and technicians needing a small, flexible wireless DMX link between a console or node and fixtures where running cable is impractical.

Highlights

• Switchable transmitter or receiver operation
• Supports both W-DMX and CRMX wireless protocols plus RDM
• 2.4 GHz operation with up to 650 ft (200 m) range
• Powered by USB or 4 AAA batteries
• Backward compatible with G3, G4, G4S and G5 series devices

Key Specs

• Protocols: W-DMX, CRMX, RDM
• Range: up to 650 ft (200 m) at 2.4 GHz
• DMX channels: 512 (1 universe per device, up to 16 in coexistence)
• Power: 5V USB or 4 AAA batteries; up to 8 hr battery life (receiver mode)
• Order code: MICROT1TRXG6
• Dimensions: 100 x 40 x 65 mm; Weight: 800 g
