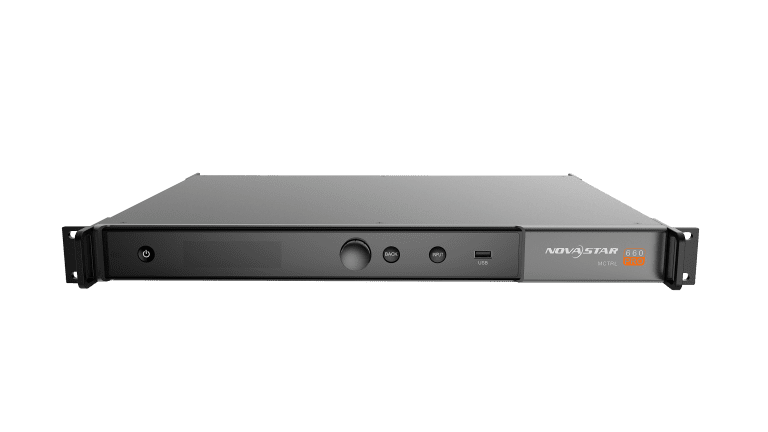

MCTRL660PRO - LED display controller

Overview
NovaStar professional LED controller with a loading capacity of 1920 x 1200 at 60 Hz, six Gigabit Ethernet outputs and two 10G optical outputs. It can work as a sending controller or as a fiber converter.

Best for
Concerts, live events and rental screens, plus fixed LED installs such as sports venues and monitoring centers.

Highlights

• 3G-SDI, HDMI 1.4a and single-link DVI inputs with loop outputs
• 10-bit and 12-bit color depth (RGB and YCbCr)
• Latency under 1 ms
• One-click backup and recovery, image mirroring and automatic screen configuration
• Web-based control, pixel-level brightness and chroma calibration, individual RGB gamma
• Cascading of multiple units

Key Specs

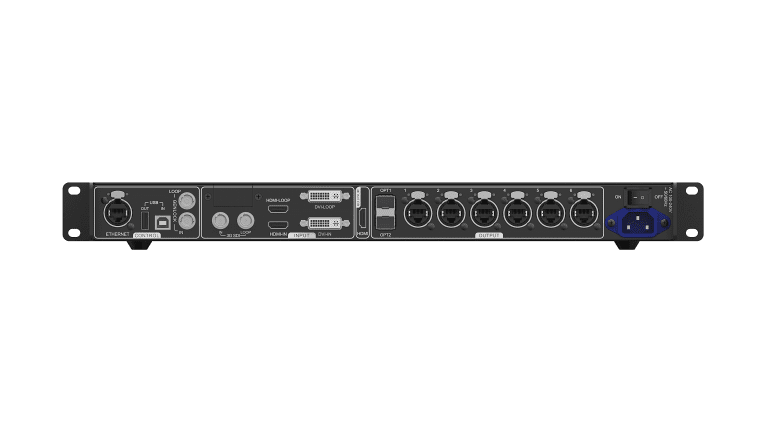

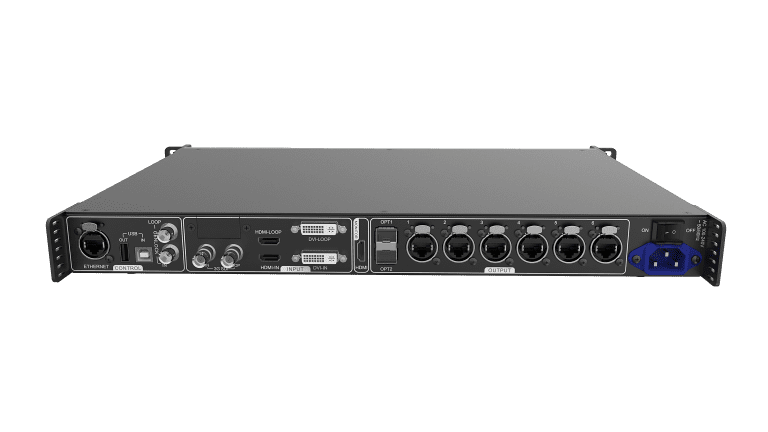

• Inputs: 1 x 3G-SDI, 1 x HDMI 1.4a, 1 x single-link DVI
• Loop outputs: 1 x 3G-SDI, 1 x HDMI 1.4a, 1 x DVI
• Outputs: 6 x Gigabit Ethernet, 2 x 10G optical
• Loading capacity: 1920 x 1200 @ 60 Hz
• Custom resolution: Width up to 3840 px, height up to 2560 px
• Input resolution: Up to 1920 x 1080 @ 60 Hz
• Latency: Under 1 ms
• Working modes: Sending controller or fiber converter
