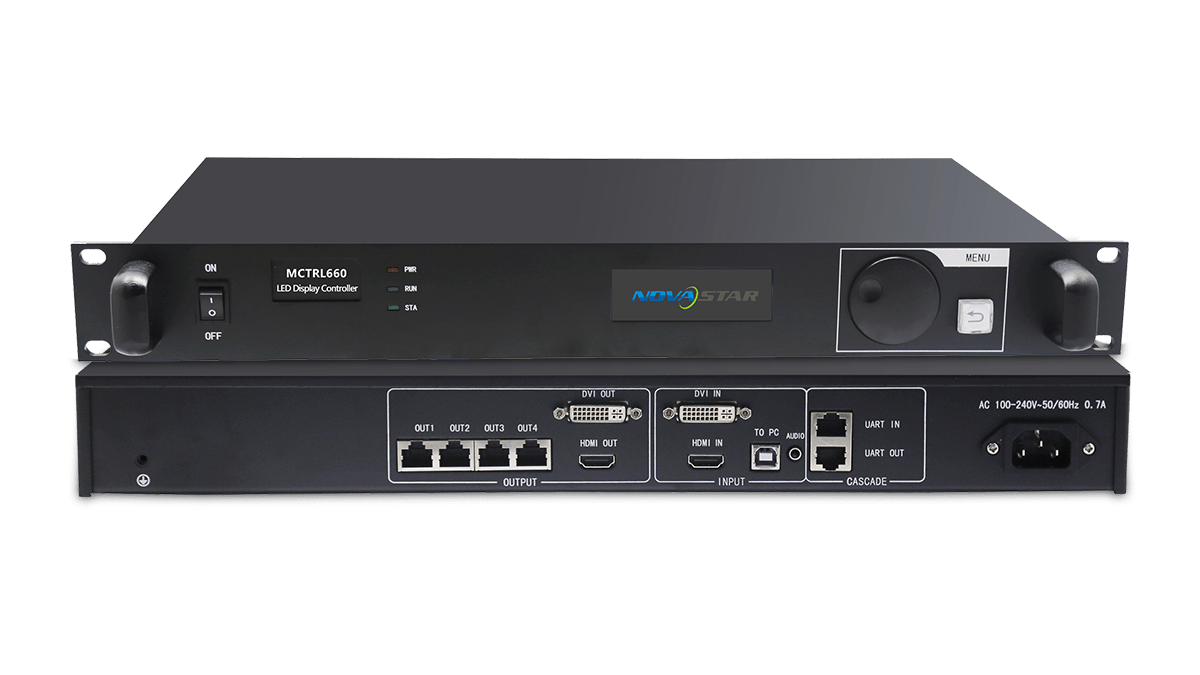

MCTRL660 - LED display controller

Overview
NovaStar independent master controller designed mainly for LED display rental. Screens can be configured without a computer, and brightness can be set directly with the front-panel knob.

Best for
Rental and event LED screens.

Highlights

• Screen configuration without a PC, completed within 30 seconds
• Front-panel knob for direct brightness adjustment
• Nova G4 engine with pixel-by-pixel calibration and white balance adjustment
• HDMI and DVI inputs with loop output for cascading
• HDCP support and 18-bit grayscale processing

Key Specs

• Inputs: HDMI, DVI, external audio
• Outputs: HDMI/DVI loop for cascading
• Max resolution (8-bit): 2048 x 1152, 1920 x 1200 or 2560 x 960 @ 60 Hz
• Max resolution (10/12-bit): 1440 x 900 @ 60 Hz
• Max width or height: 3840 pixels
• Color formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4
• Grayscale processing: 18-bit
• Form factor: 19 in, 1.5U rack mount
