MAR-90721203 - DCE PSU 240 IP
Regular price
$522.00 USD
Sale price
Regular price
Overview

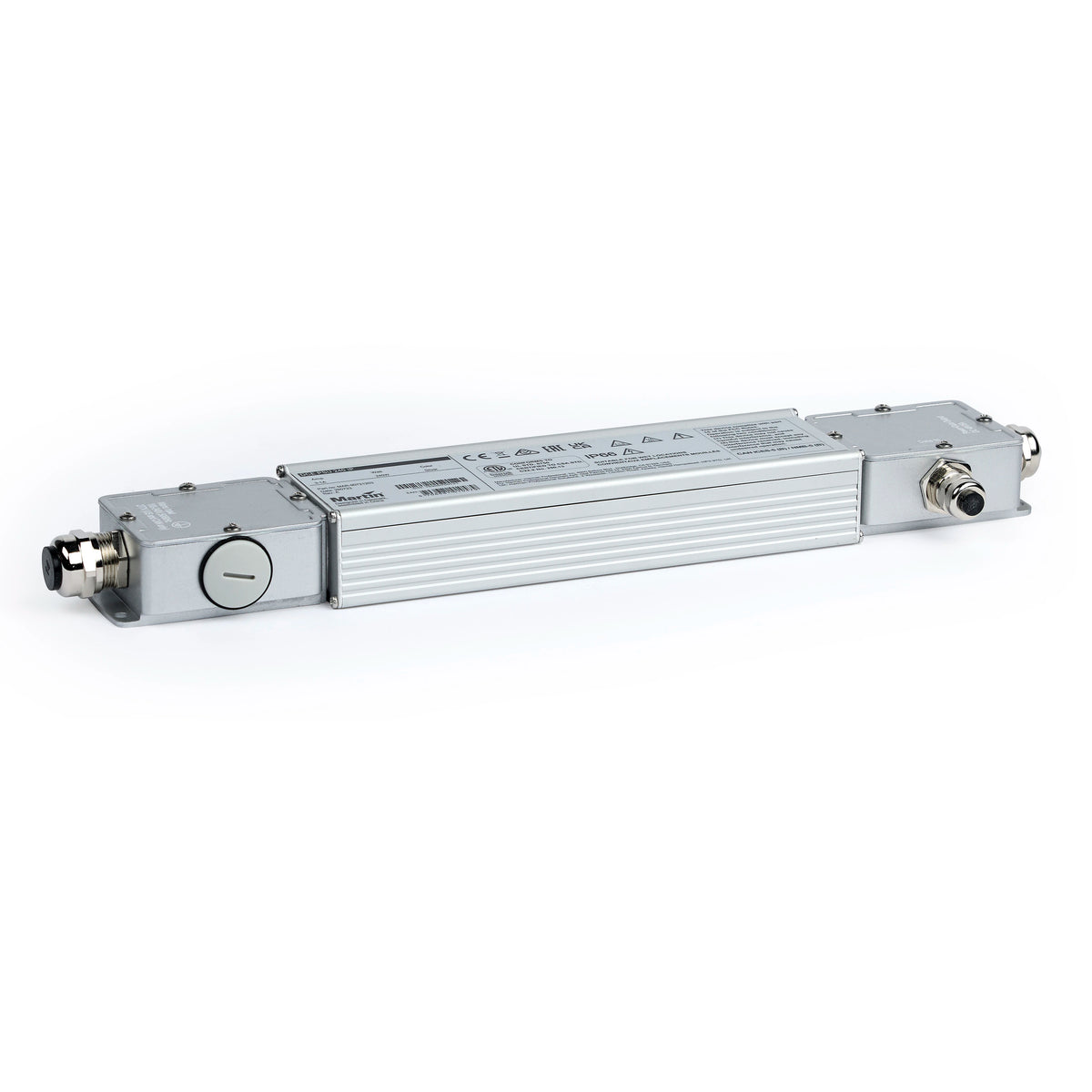

The Martin DCE PSU 240 IP is an indoor/outdoor external power supply that provides 48 VDC power plus data to Martin Creative LED fixtures. It has a clear-anodized extruded aluminium housing and an auto-ranging AC input. Wiring is done on internal terminals, so cables can be cut to length on site.
Best for
Small installed systems with VDO Sceptron XB and Exterior Dot Pro fixtures.
Highlights
- 48 VDC / 5 A (240 W) output with power+data on one output
- IP66 / NEMA 4X aluminium housing, IK08, C5 High corrosion resistance
- Toolless terminal blocks and splice connections with 4 kV surge protection
- Wall-mountable in any orientation, convection cooled
Key Specs
- Output: 48 VDC / 5 A, 240 W
- Input: 100-277 V AC, 50/60 Hz; Ethernet in 100 Mbit (P3, sACN, Art-Net)
- Protection: IP66; -30 to +40 C operating
- Cable glands: M20x1.5
- Dimensions: 420 x 86 x 39 mm (16.5 x 3.4 x 1.5 in)
- Weight: 1.6 kg (3.6 lbs)
