MAR-90721201 - P3 PowerPort 500 IP Rental

Overview

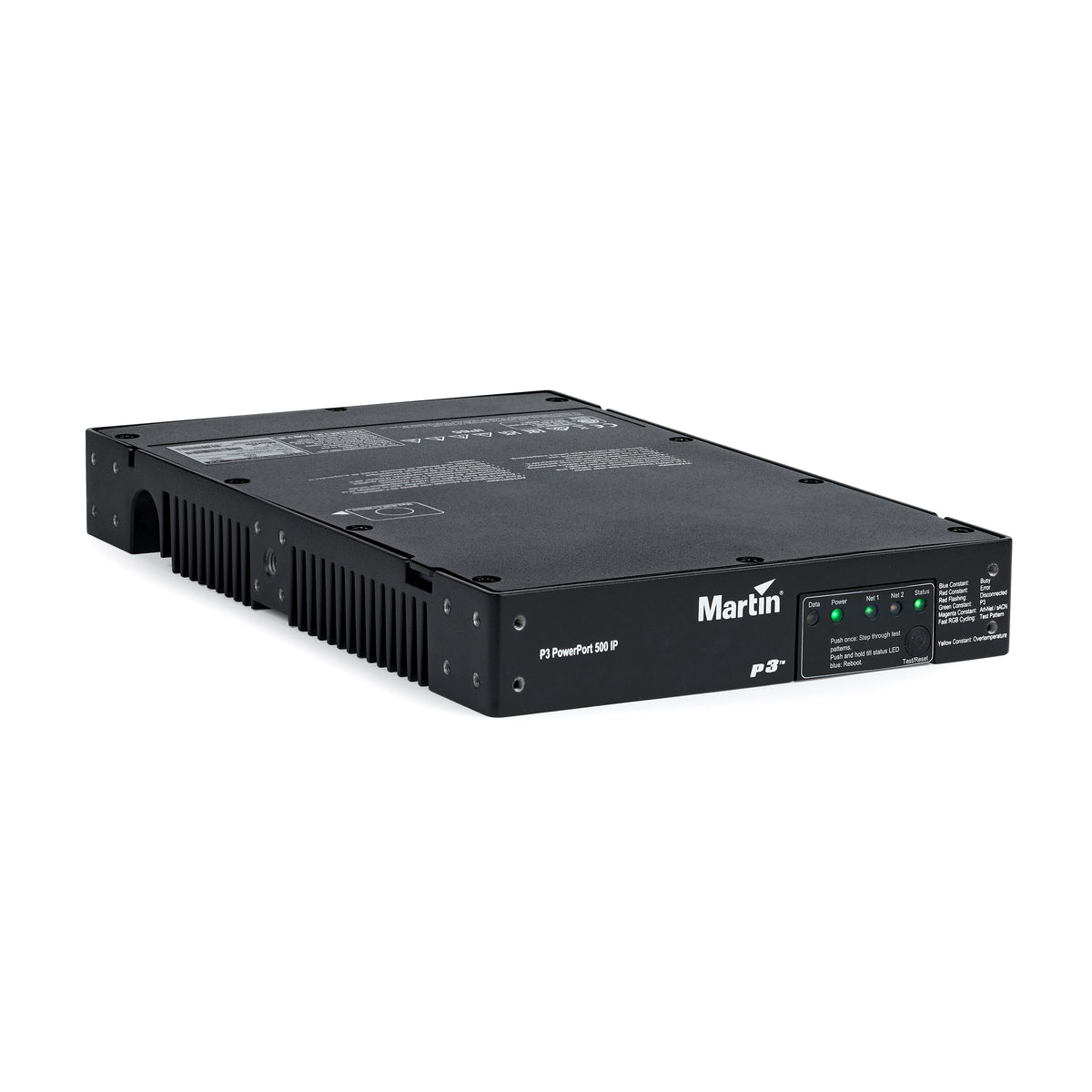

The Martin P3 PowerPort 500 IP Rental is a compact indoor/outdoor power and data unit for Martin Creative LED fixtures in rental use. It delivers 48 VDC at 10 A on one hybrid output and includes a built-in network switch with fail-safe bypass. It accepts Art-Net, sACN and P3.

Best for
Indoor/outdoor rental systems with VDO Sceptron XB and Exterior Dot Pro fixtures.

Highlights

• 1 power+data output on a DCE 7-pin hybrid connector, 48 VDC / 10 A (500 W max)
• IP65 / NEMA Type 3, rated for indoor and outdoor use
• Rack, truss or wall mounting
• Status LEDs and a local test button
• Ethernet In/Thru on two etherCON connectors

Key Specs

• Output: 48 VDC / 10 A, 500 W max
• Input: 100-240 V AC, 50/60 Hz
• Protection: IP65, NEMA Type 3; -30 to +40 C operating
• Protocols: Art-Net, sACN, Martin P3
• Dimensions: 217 x 44.45 x 365 mm (8.5 x 1.75 x 14.4 in), 1U
• Weight: 3.5 kg (7.7 lbs)
