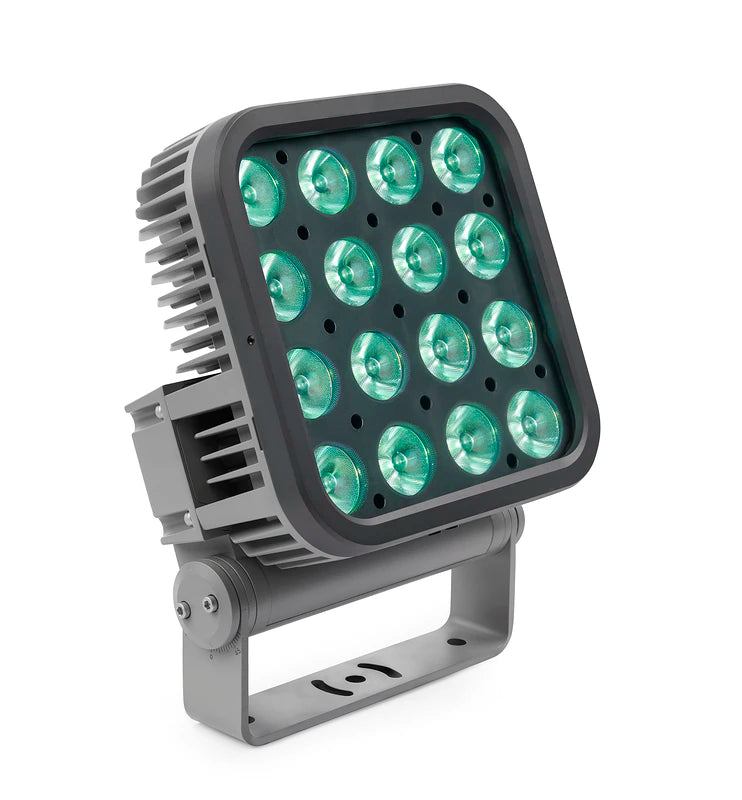

MAR-90590103 - Exterior Wash Pro L QUAD, EU, White

Overview
The Exterior Wash Pro L QUAD is an IP66 outdoor colour wash light in Martin's four-size Exterior Wash Pro family. It uses 16 high-power RGBW LEDs with factory colour calibration and a dedicated colour temperature control channel from 1000 K to 12,500 K. The native beam is 8°, adjustable with optional micro lenses.

Best for
Building facades and large structures in permanent outdoor installations.

Highlights

• Factory-calibrated colour with colour boost: Martin quotes up to 3x brighter saturated and mixed colours
• Native 8° beam; optional micro lenses give 11° / 15° / 30° / 50° / 8°×50°
• Optional baffle snoot for glare and beam control
• DMX512 and RDM with 6/3/7/4 channel modes, plus magnetic-sensor local diagnostics and up to 20 standalone scenes
• Weatherproof cast aluminium housing with a 5-year warranty

Key Specs

• Light source: 16 high-power RGBW LEDs (Osram)
• Output: 7100 lm at full output
• Beam angle: 8° native, 11°-50° with micro lenses
• Power: 150 W max, 100-240 / 277 V, 50/60 Hz
• Dimensions: 165 × 275 × 370 mm (6.5 × 10.83 × 14.57 in.)
• Weight: 12.4 kg (27.3 lbs)
• Protection: IP66, IK08, C5 High corrosion rating
• Housing: cast aluminium, Traffic white RAL 9016

Please note: This is the EU-specification model. Contact us to confirm power and certification requirements for US installations.
