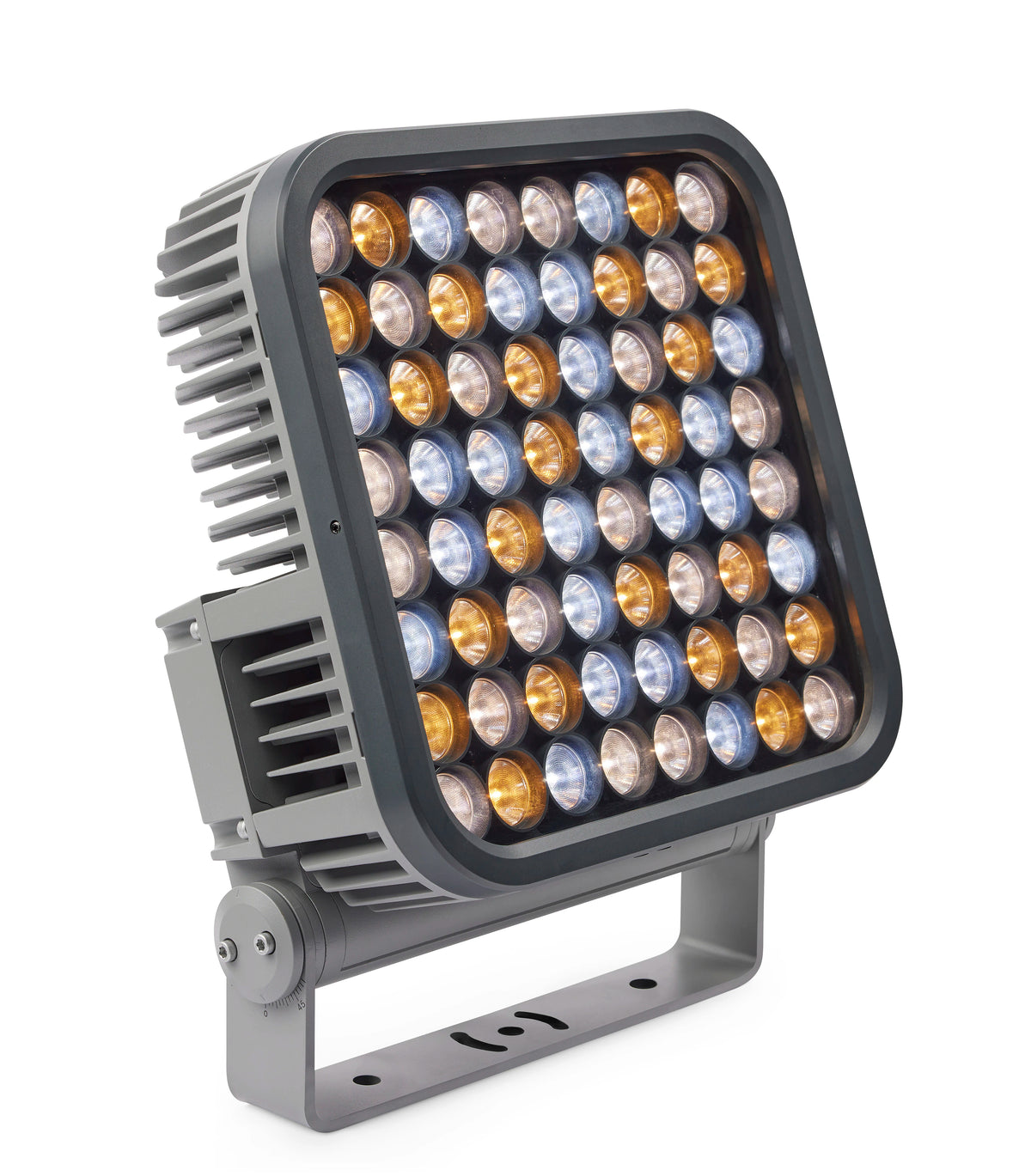

MAR-90590016 - Exterior Wash Pro XL CTC, US, Grey

Overview
The Exterior Wash Pro XL CTC is an IP66 outdoor tunable-white wash light in Martin's four-size Exterior Wash Pro family. It uses 21 × 2400 K, 21 × 4000 K, 22 × 6500 K white LEDs (Cree) for a 2400 K to 6500 K range. The native beam is 7°, adjustable with optional micro lenses.

Best for
Building facades and large structures in permanent outdoor installations.

Highlights

• Tunable white from 2400 K to 6500 K (default 4000 K), efficacy above 60 lm/W
• Native 7° beam; optional micro lenses give 9° / 15° / 30° / 50° / 8°×60°
• Optional baffle snoot for glare and beam control
• DMX512 and RDM with magnetic-sensor local diagnostics and up to 20 standalone scenes
• Weatherproof cast aluminium housing with a 5-year warranty

Key Specs

• Light source: 21 × 2400 K, 21 × 4000 K, 22 × 6500 K white LEDs (Cree)
• Output: 8200 lm @ 2400 K, 17,000 lm @ 4000 K, 13,000 lm @ 6500 K
• Beam angle: 7° native, 9°-50° with micro lenses
• Power: 250 W max, 100-240 / 277 V, 50/60 Hz
• Dimensions: 175 × 351 × 438 mm (6.89 × 13.82 × 17.24 in.)
• Weight: 17.7 kg (39.0 lbs)
• Protection: IP66, IK08, C5 High corrosion rating
• Housing: cast aluminium, Traffic grey RAL 7042
