MAR-90581020 - Exterior Dot-HP Pro V2, Clear Front

Overview

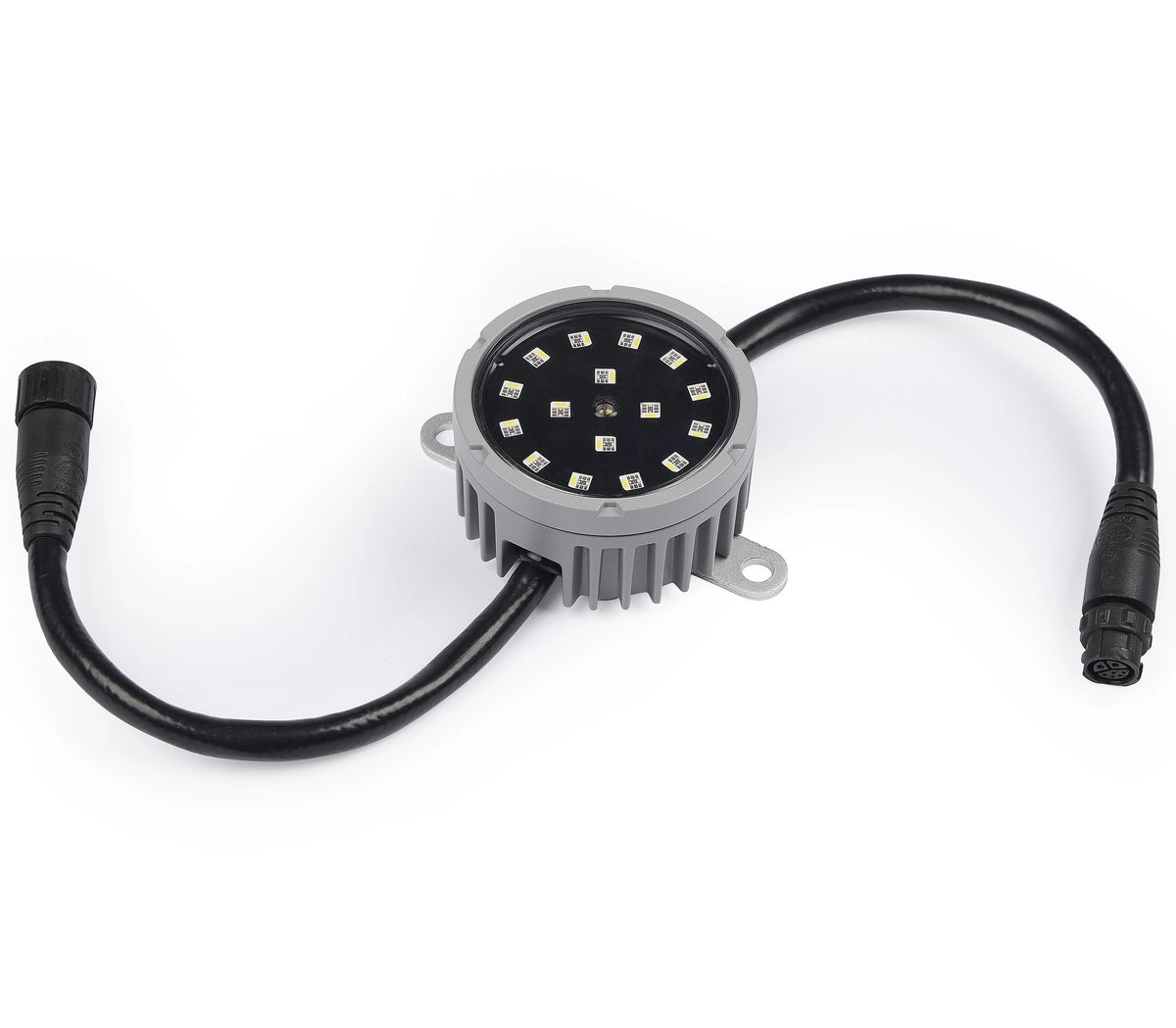

The Exterior Dot-HP Pro is an outdoor-rated, high-output single RGBW LED dot with 16 LEDs in a 78 mm (3.1 in.) round housing. This clear front version has a 150 degree viewing angle and is controlled over Martin P3, Art-Net or sACN.

Best for
Architectural facade, signage and landscape accents where a bright, individually controllable pixel is needed outdoors.

Highlights

• 16 RGBW LEDs per dot (Lumileds) with 16-bit color resolution in P3 mode
• Clear front: 295 lumens and 106 cd at full output, 150 degree viewing angle
• Hot-pluggable hybrid power/data connection using DCE connector cable tails
• Daisy-chain up to 64 dots at full power, or up to 116 in reduced power mode
• Surface mounts directly or on an accessory mounting plate; works in any orientation

Key Specs

• Light source: 16 x RGBW LEDs, 100,000 hour lifetime (to 70% output)
• Output (clear front): 295 lm / 106 cd at full white, 6500 K
• Input: 48 VDC, 6.0 W max per dot (3.2 W in half power mode)
• Protection: IP67, IK08, C5 High corrosion resistance
• Control: Martin P3, Art-Net or sACN with automatic detection, RDM
• Weight: 0.395 kg (0.87 lbs)
• Size: 78 mm (3.1 in.) diameter, 43 mm (1.7 in.) high
