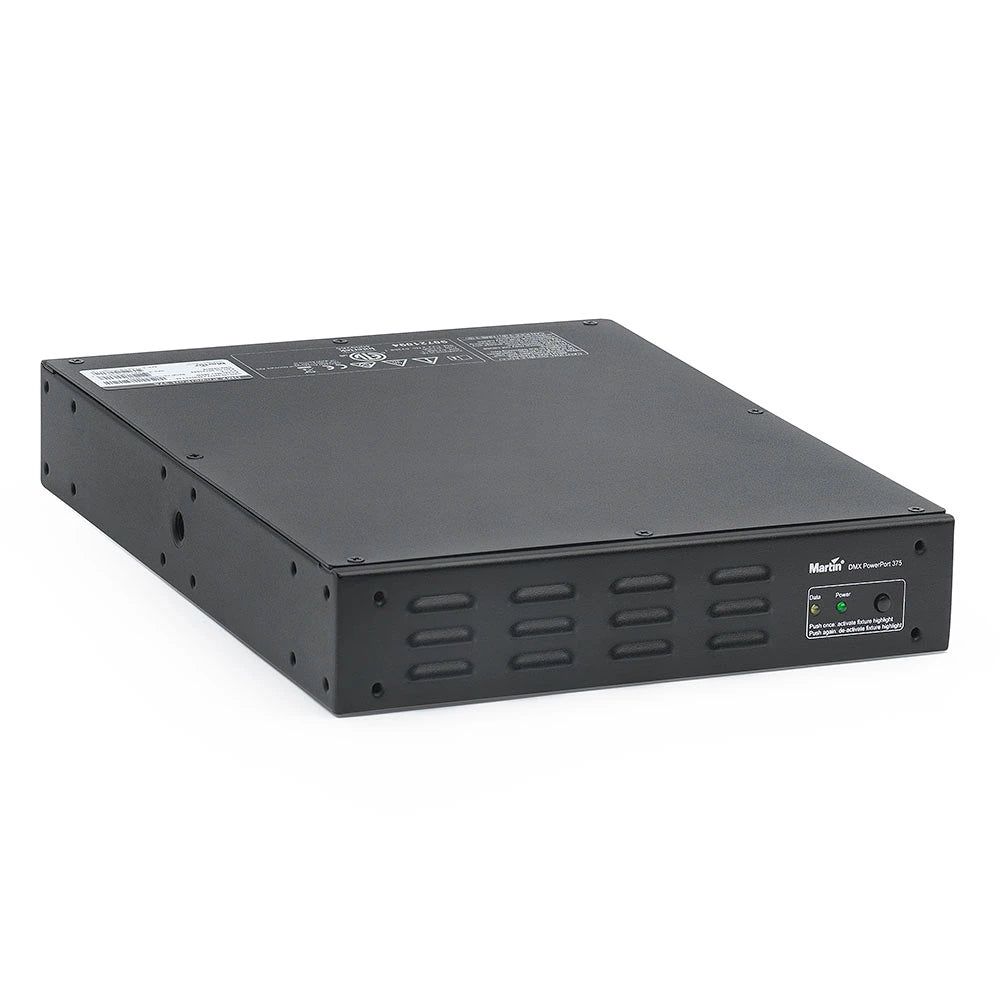

90721094 - DMX PowerPort 375
Regular price
$784.80 USD
Sale price
Regular price
Overview
The Martin DMX PowerPort 375 is a compact 1U power and data unit for Martin Creative LED video products in DMX-controlled setups. It combines 48 VDC power with DMX/RDM on hybrid 4-pin XLR outputs and includes a built-in DMX/RDM splitter with opto-isolated transceivers.
Best for
DMX-controlled VDO, VC-Grid, VC-Strip and VC-Dot systems and Exterior PixLine/Dot-HP.
Highlights
- Built-in DMX/RDM splitter with opto-isolated transceivers
- Combined power/data output on 4-pin female XLR
- DMX/RDM in on 5-pin male XLR, thru on 5-pin female XLR
- Rack (single or dual), truss or wall mounting with supplied ears
- Local test button
Key Specs
- Input: 100-240 V AC, 50/60 Hz via powerCON TRUE1 (in/thru)
- Output: 5.0 A at 100-120 V, 7.5 A at 173-240 V; 450 W max
- Protection: IP20, steel housing
- Dimensions: 220 x 44 x 289 mm (8.7 x 1.7 x 11.4 in), 1U
- Weight: 2.33 kg (5.1 lbs)
