90506525 - Exterior Projection 500 MG, Wide, US

Overview

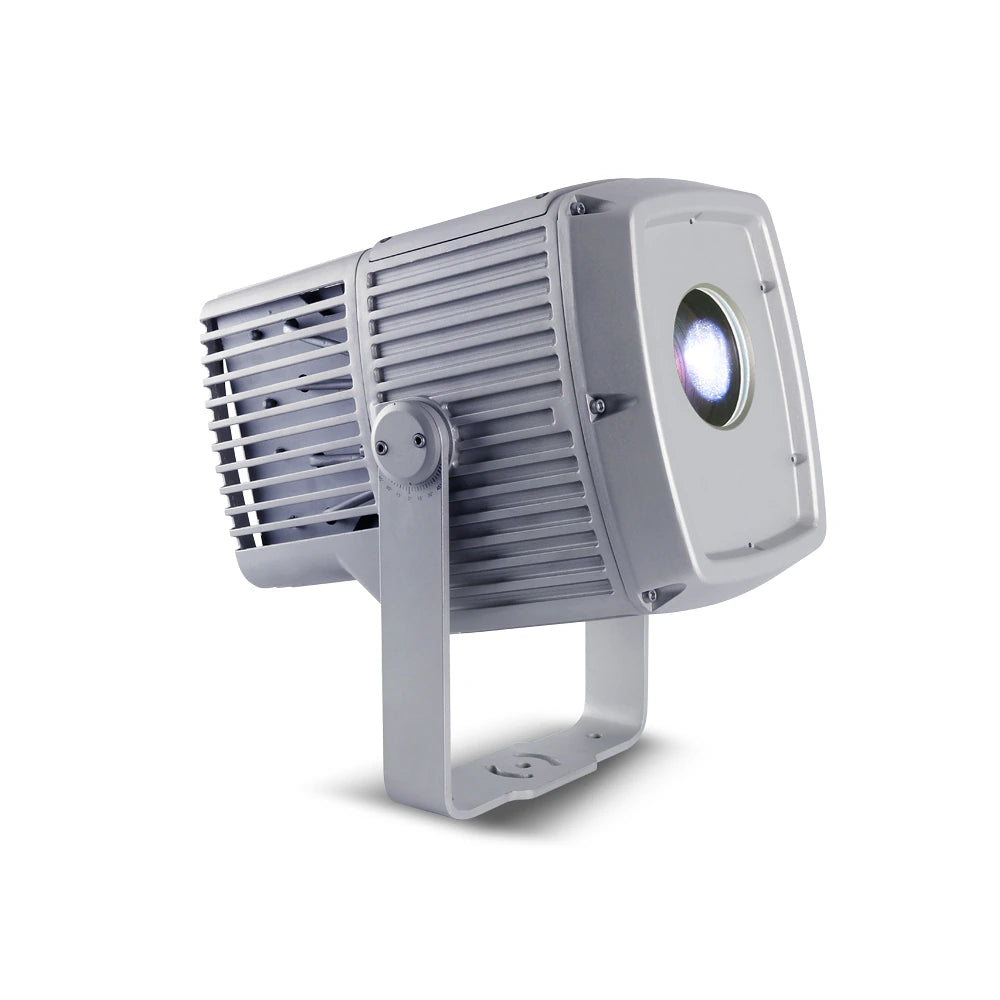

The Exterior Projection 500 is an IP66 outdoor gobo projector with a 230 W white LED engine, built for bright logo projection and precision framing. This wide version has a 37 degree cut-off angle and produces 5,700 lumens. It has a metallic grey anodized finish.

Best for
Outdoor logo and pattern projection on facades, landscapes and signage, at the throw distance matching the wide optic.

Highlights

• 5,700 lumens and 28,000 cd peak at a 37 degree cut-off angle
• Four effect layers: 8-color wheel, 6 rotating gobos plus open, gobo animation, 2 prisms, plus motorized frost
• Motorized focus from 3 m (9.8 ft) to infinity
• Integrated heater for use down to -30 C (-22 F)
• Accepts 30 mm gobos (glass or aluminum); optional framing module

Key Specs

• Light source: 230 W white LED, 8300 K, CRI 72, 20,000 hour lifetime
• Power: 100-240/277 V, 50/60 Hz; about 305-320 W typical
• Protection: IP66, IK08, C5-M marine-grade corrosion resistance
• Control: DMX512-A / RDM, 13 channels, OLED display
• Size: 415 x 293 x 444 mm (16.4 x 11.6 x 17.5 in.)
• Weight: 17.5 kg (38.6 lbs) with mounting yoke

Manufacturer note: Scheduled for end of life and not recommended for new projects.
