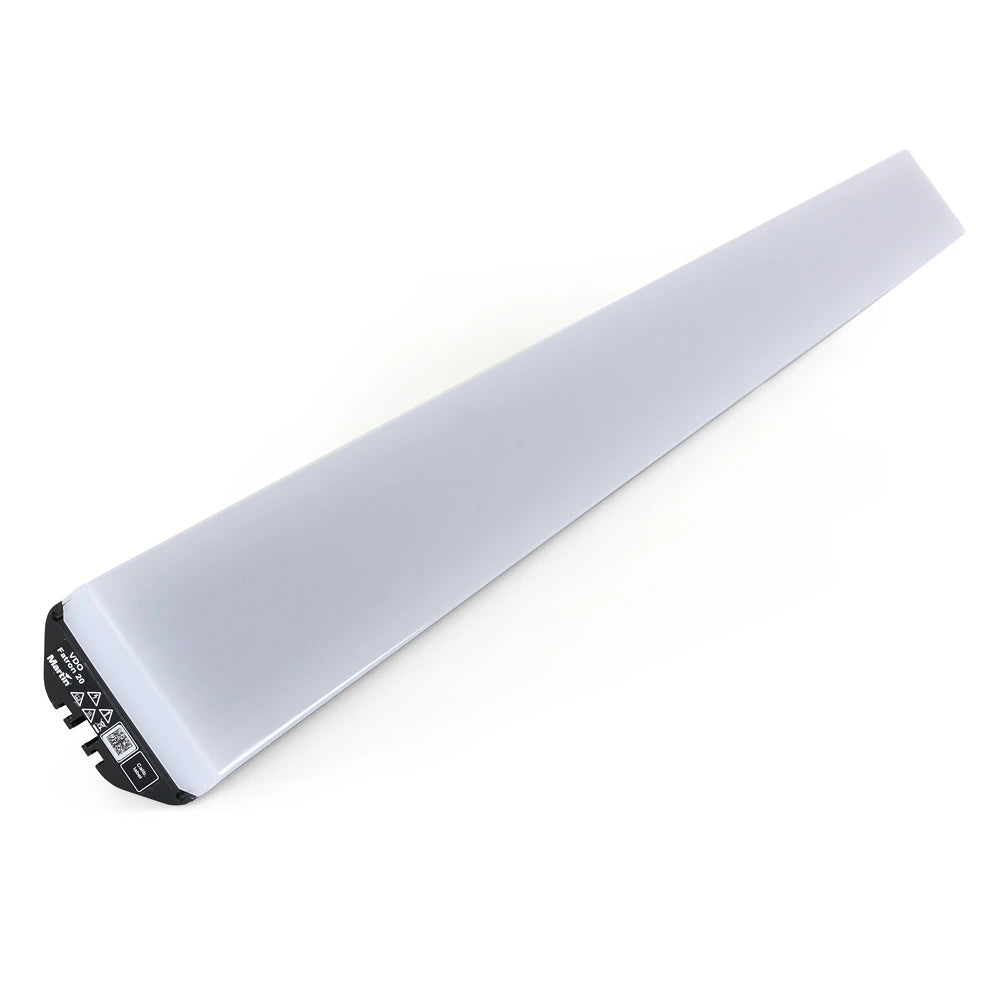

90357692HU - VDO Fatron 20 1000mm in cardboard

Overview
The VDO Fatron 20 is an outdoor-rated LED video batten with a 20 mm pixel pitch and four LEDs across its 80 mm width, giving more output per meter than the narrower Sceptron range. It uses the same range of field-exchangeable optical accessories and works with Martin P3 or DMX control. This is the 1000 mm version, shipped as a single unit in a cardboard carton.

Best for
Rental and touring video, stage and architectural applications that need a weather-resistant LED pixel batten.

Highlights

• 20 mm pixel pitch with a 4 x 50 LED array (1,500 lumens per meter calibrated)
• IP65 rated for outdoor use; IP66-rated connections
• 8 diffuser options plus 1 lens, field-exchangeable
• Pixel-level brightness and colour calibration with 16-bit processing
• Hybrid DMX and Martin P3 control with automatic protocol detection

Key Specs

• Pixel pitch: 20 mm; LED array: 4 x 50
• Output: 1500 lumens per meter and 500 cd per meter (calibrated)
• Viewing angle: 120 x 120 degrees (half-peak)
• Power: 48 V DC; 60 W max
• Dimensions: 1000 mm long x 80 mm wide x 28 mm high (without front)
• Weight: 2.5 kg (5.5 lbs) without front; 2.8 kg with diffuser
• Ingress protection: IP65

Manufacturer note: End-of-life item with limited availability. Contact us to confirm stock before ordering.
