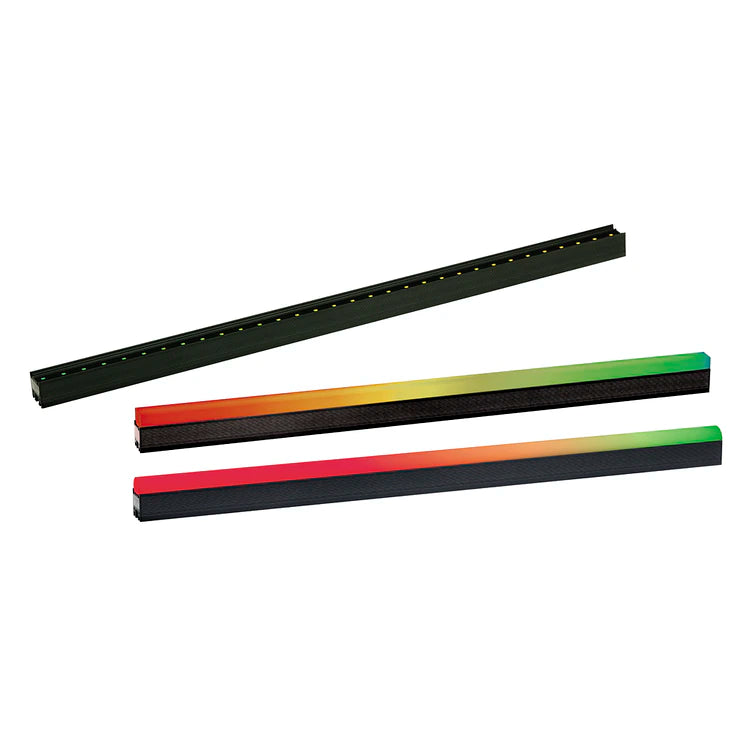

90357665HU - VDO Sceptron 20 1000mm in cardboard

Overview
The VDO Sceptron 20 is an outdoor-rated linear LED video batten with a 20 mm pixel pitch for the rental market. It is driven by the Martin P3 System Controller family and is backwards compatible with DMX for smaller setups, with a wide range of field-exchangeable optical accessories. This is the 1000 mm version, shipped as a single unit in a cardboard carton.

Best for
Rental and touring video, stage and architectural applications that need a weather-resistant LED pixel batten.

Highlights

• 20 mm pixel pitch, 1 x 50 LEDs (375 lumens per meter calibrated)
• IP65 rated for outdoor use
• Field-exchangeable diffusers and lenses plus a full rigging range
• Pixel-level brightness and colour calibration with 16-bit per colour processing
• Martin P3 control with backwards-compatible DMX

Key Specs

• Pixel pitch: 20 mm; LED array: 1 x 50
• Output: 375 lumens per meter and 125 cd per meter (calibrated)
• Viewing angle: 120 x 120 degrees (half-peak)
• Power: 48 V DC; 15 W max
• Dimensions: 1000 mm long x 27 mm wide x 28 mm high (without front)
• Weight: 1.2 kg (2.6 lbs) without diffuser; 1.4 kg with standard diffuser
• Ingress protection: IP65

Manufacturer note: End-of-life item with limited availability. Contact us to confirm stock before ordering.
