90357320HU - VC-Strip 8x1 25 RGB

Overview

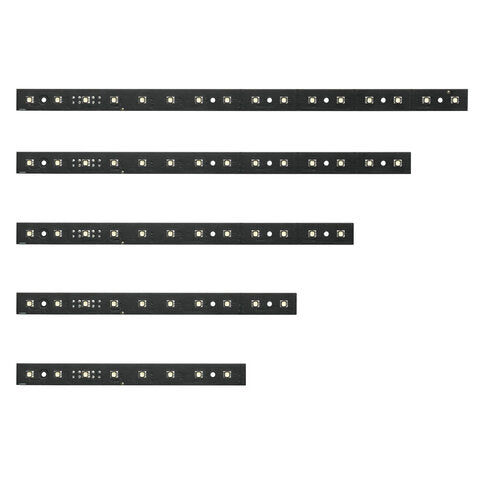

The Martin VC-Strip 8x1 25 RGB is a narrow LED video strip with 8 individually controllable RGB pixels at a 25 mm pitch. It runs from DMX or the Martin P3 system and daisy-chains over hybrid power/data cabling. It is compatible with VC-Grid modules.

Best for
Pixel lines, edge lighting and architectural or set accents.

Highlights

• 8 RGB pixels at 25 mm pitch, 200 mm long
• 4000 nits calibrated brightness, 120 x 120 degree viewing angle
• Control by DMX or Martin P3 with video mapping
• Up to 63 modules per chain

Key Specs

• Power: 48 VDC +/-4%; 3.3 W max
• Protection: IP20; -20 to +45 C operating
• Dimensions: 200 x 20 x 18 mm (7.9 x 0.8 x 0.7 in)
• Weight: 26 g (0.06 lbs)

Manufacturer note: End-of-life item, currently available from manufacturer stock.
