90357060HU - VC-Dot 1 RGB 100mm pitch 100pcs 2m lead-in

Overview

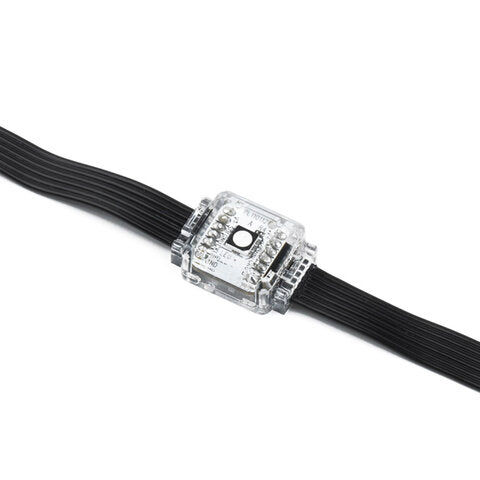

The Martin VC-Dot 1 RGB is a lightweight string of individually controllable RGB pixels (1 RGB LED per pixel) for custom LED video installations. This string has 100 pixels at 100 mm pitch with a 2 m lead-in. It runs on the Martin P3 protocol or DMX512 through a VC-Feeder.

Best for
Custom pixel-mapped designs such as ceilings, set pieces and architectural features, indoors or outdoors.

Highlights

• 100 pixels per string, individually controllable
• Pixel pitch adjustable from 100-1000 mm using VC-Dot splice connectors
• IP67-rated pixels for permanent indoor or outdoor use
• 16-bit control on P3, 8-bit on DMX, 127 degree viewing angle (180 with dome)

Key Specs

• LEDs per pixel: 1 RGB
• String: 100 pixels at 100 mm pitch with 2 m lead-in
• Pixel size: 28 x 23 x 11 mm (1.1 x 0.9 x 0.4 in)
• Operating voltage: 15 VDC (from a VC-Feeder); 0.95 W per pixel peak
• Protection: IP67; -20 to +55 C
• Weight: 1.3 kg (2.9 lbs) for the full string

Manufacturer note: End-of-life item with limited availability. Contact us to confirm stock before ordering.
