90357040 - VC-Feeder with M16 Connector

Overview

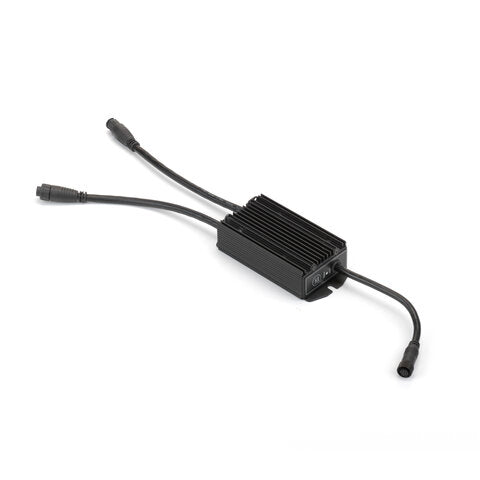

The Martin VC-Feeder is a compact multi-protocol driver box for VC-Dot strings. It converts 48 VDC to 15 VDC for the dots, detects P3 or DMX automatically, and has an IP65 housing. This version has M16 connectors.

Compatible with
Driving and powering VC-Dot 1, VC-Dot 4 and VC-Dot 9 strings.

Highlights

• Automatic P3 / DMX protocol detection
• 48 VDC in, 15 VDC out to the VC-Dot string
• Multi-protocol: P3 or DMX with RDM
• IP65 housing (IP67 on output connectors)

Key Specs

• Input: 48 VDC (M16 connector version) from P3 PowerPort 1500 / 1000 IP, DMX PowerPort 375 or IP66 PSU 240W; 135 W max
• Output: 15 VDC on an 8-pin VC-Dot connector
• Operating temperature: -20 to +55 C
• Dimensions: 164 x 68 x 36 mm (6.5 x 2.7 x 1.4 in) including ears
• Weight: 590 g (1.3 lbs)

Manufacturer note: Not recommended for new designs. Martin recommends the VC-Feeder with BBD Connector (90357041) instead.
