90357010HU - VC-Grid 8x8 25 RGB

Overview

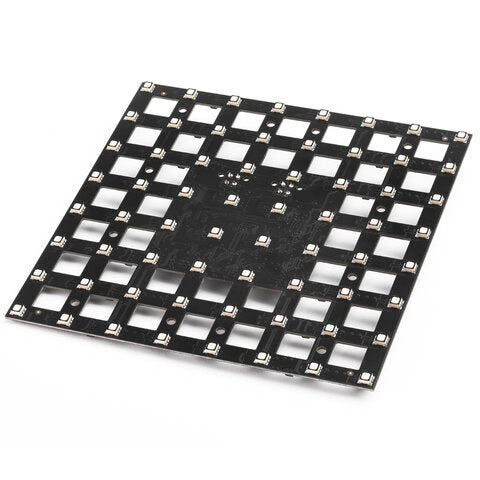

The Martin VC-Grid 8x8 25 RGB is a thin 200 x 200 mm LED video module with 64 individually controllable RGB pixels at a 25 mm pitch. It runs from DMX or the Martin P3 system and daisy-chains over hybrid power/data cabling.

Best for
Stage design, set elements and creative installations.

Highlights

• 64 individually controllable RGB pixels (8x8) at 25 mm pitch
• 4000 nits calibrated brightness
• Control by DMX or Martin P3; 16-bit colour processing per channel
• Up to 12 modules per daisy-chain; 50,000 hour LED life to 70% output

Key Specs

• Power: 48 VDC +/-4%; 25 W at full intensity
• Protection: IP20; -20 to +45 C operating, convection cooled
• Dimensions: 200 x 200 x 18 mm (7.9 x 7.9 x 0.7 in)
• Weight: 140 g (0.3 lbs)

Manufacturer note: End-of-life item with limited availability. Contact us to confirm stock before ordering.
