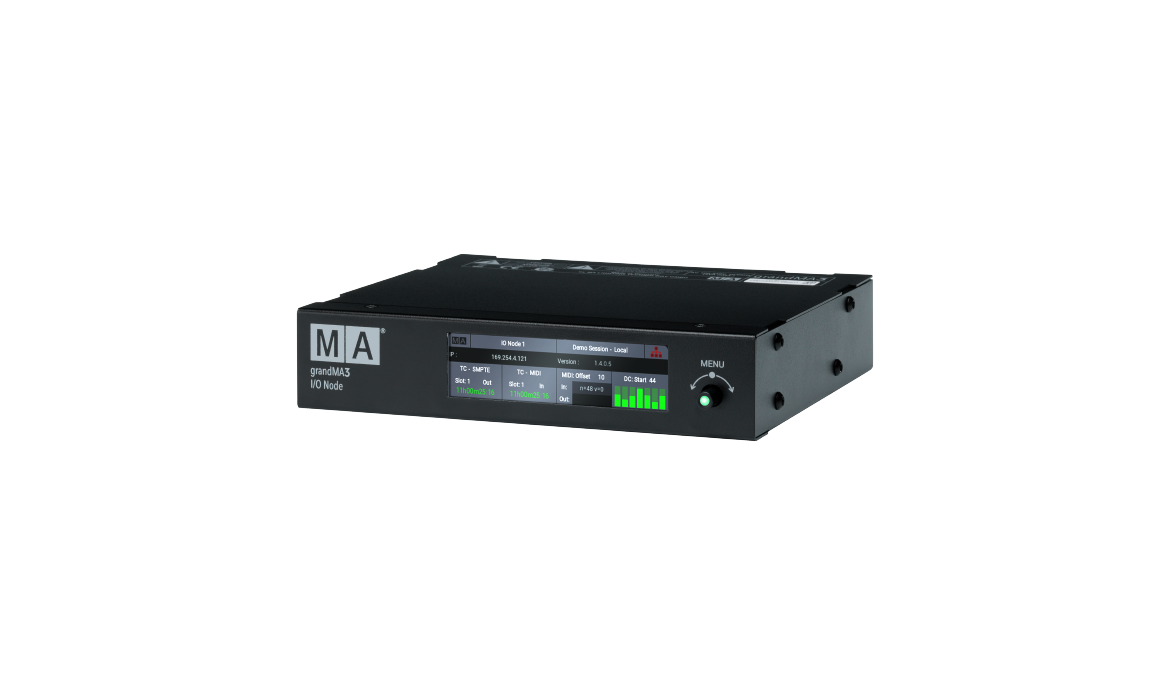

grandMA3 I/O Node PoE

Overview
The grandMA3 I/O Node PoE from MA Lighting is a signal distribution unit that brings external MIDI, timecode and DC remote (GPI) signals into a grandMA3 system. Once added as a session member, received signals are available on all connected consoles and onPC stations; it has a 3.9 in color display and can run on PoE.

Best for
Integrating timecode, MIDI and contact-closure triggers anywhere on a grandMA3 network.

Highlights

• MIDI in/out, linear timecode and GPI (DC remote) inputs on the network
• Signals shared with all consoles and onPC stations in the session
• 3.9 in color display
• Compact 9.5 in 1RU housing
• Powered by mains or PoE (IEEE 802.3af)

Key Specs

• Part Number: MA4023577-1
• Power: AC 100-240 V, 50/60 Hz or PoE (IEEE 802.3af, 48 V DC, max. 12 W); max. 15 VA
• Connectors: 1 x powerCON TRUE1, 1 x etherCON/RJ45, 1 x MIDI in, 1 x MIDI out (5-pin DIN), 1 x LTC (3-pin XLR female), 1 x GPI (DE9 female), 1 x USB 2.0
• Dimensions (W x D x H): 9 x 8 x 2 in (207 x 184 x 43 mm)
• Net weight: 5 lb (2 kg)
• Operating temperature: 32-104 °F (0-40 °C)
