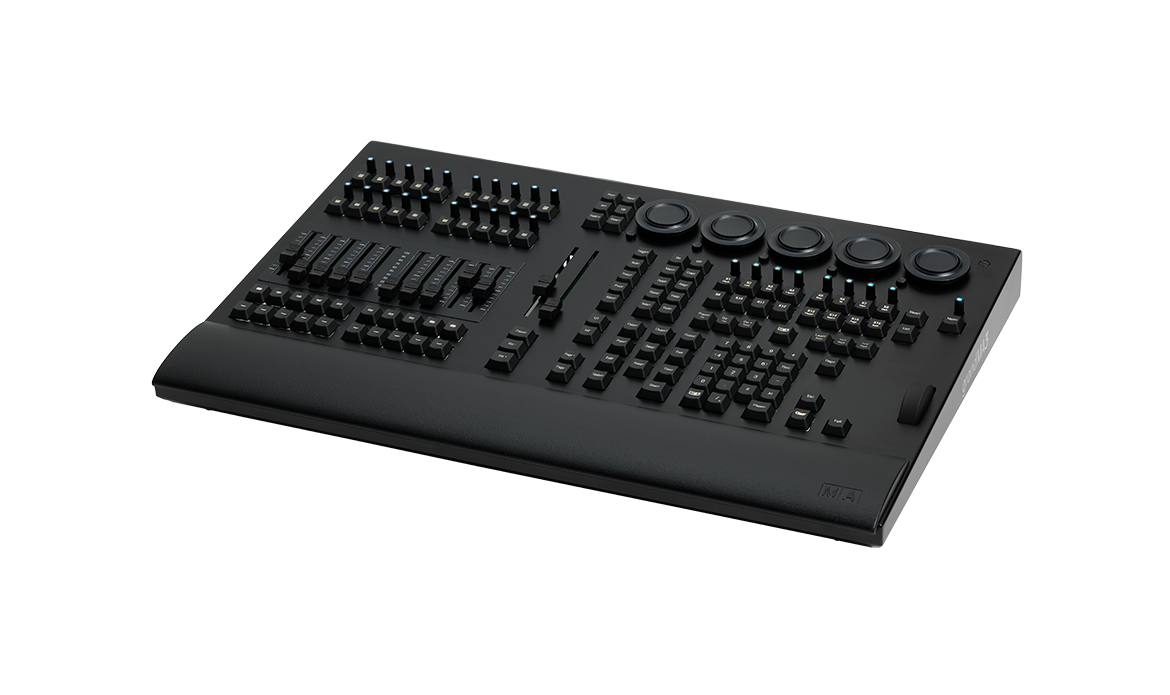

grandMA3 onPC command wing XT

Overview
The grandMA3 onPC command wing XT from MA Lighting combines the onPC command wing surface with a built-in MA motherboard running pre-installed grandMA3 onPC software. With a touchscreen monitor connected it controls 4,096 parameters directly and gives a real console feel with the same feature set as the larger grandMA3 consoles.

Best for
Small and medium theatres, installations, TV studios and houses of worship that want a standalone grandMA3 console without a separate PC.

Highlights

• Built-in computer with grandMA3 onPC pre-installed
• 40 separate playbacks and 16 assignable x-keys
• 29 rotary RGB backlit encoders, 5 dual encoders and 1 level wheel
• 10 motorized 60 mm faders plus 2 motorized 100 mm A/B faders
• Supports up to 4 external monitors

Key Specs

• Part Number: MA4010519
• Parameters: 4,096 (HTP/LTP)
• Power: AC 100-240 V, 50/60 Hz, max. 100 VA (IEC C14 inlet)
• DMX: 2 x DMX512-A out (5-pin XLR female), 1 x DMX512-A in (5-pin XLR male)
• Network: 2 x RJ45
• Other I/O: MIDI in/out, LTC (3-pin XLR), audio in/out (3.5 mm), GPI (DE9), 4 x DisplayPort 1.2, 2 x USB 2.0, 2 x USB 3.0, LED desk light (4-pin XLR)
• Dimensions: 25 x 17 x 5 in (620 x 427 x 112 mm)
• Net weight: 27 lb (12 kg)
• Operating temperature: 32-104 °F (0-40 °C)
