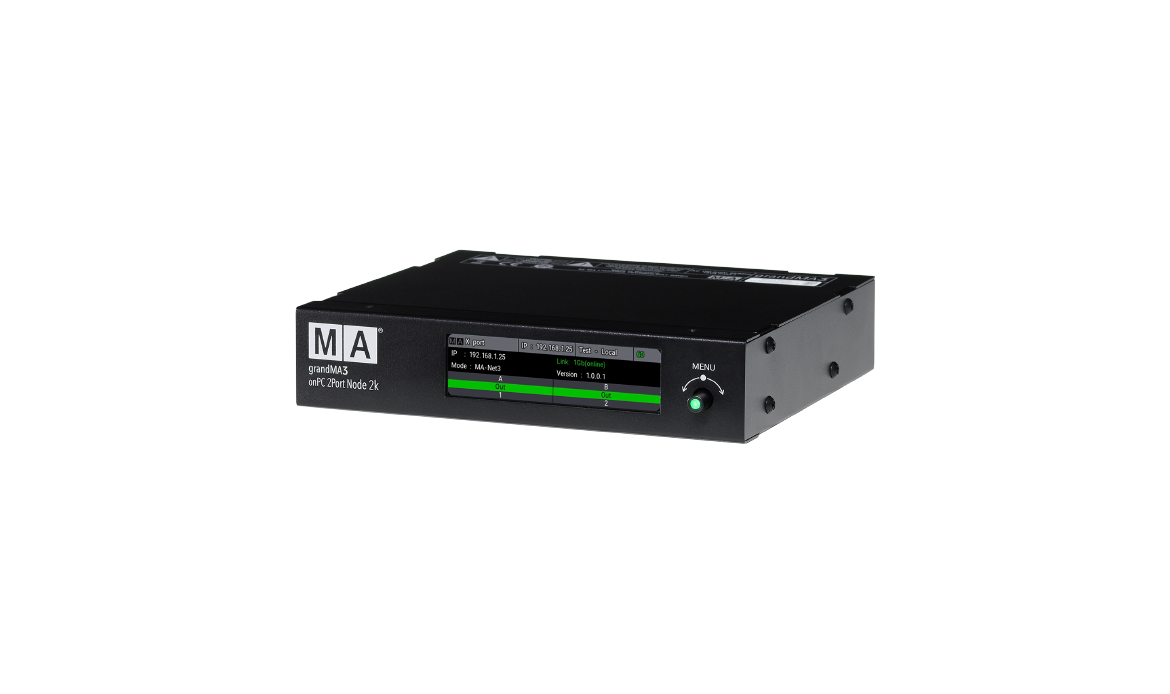

grandMA3 onPC 2Port Node PoE (Expands 1,024 parameters in Mode2)

Overview
The grandMA3 onPC 2Port Node PoE from MA Lighting synchronously outputs two DMX universes in any grandMA3 system. It also serves as an entry point for grandMA3 onPC, enabling 4,096 parameters directly, and can be powered by mains or PoE.

Best for
Distributing DMX lines in venues and installations, or as a compact output and parameter unlock for grandMA3 onPC.

Highlights

• 2 DMX universes out
• Synchronous DMX output in any grandMA3 system
• Enables 4,096 parameters for grandMA3 onPC directly
• Handles MA-Net3, MA-Net2, sACN and Art-Net
• High-performance processor and 1 Gb/s Ethernet
• Powered by mains or PoE (IEEE 802.3af)

Key Specs

• Part Number: MA4010512-1
• Parameters (grandMA3 onPC): 4,096 (HTP/LTP); Mode2: 1,024
• Power: AC 100-240 V, 50/60 Hz or PoE (IEEE 802.3af, 48 V DC, max. 12 W); max. 15 VA
• Connectors: 1 x powerCON TRUE1, 1 x etherCON/RJ45, 2 x DMX512-A out (5-pin XLR female), 1 x USB 2.0
• Dimensions (W x D x H): 9 x 8 x 2 in (207 x 184 x 43 mm)
• Net weight: 5 lb (2 kg)
• Operating temperature: 32-104 °F (0-40 °C)
