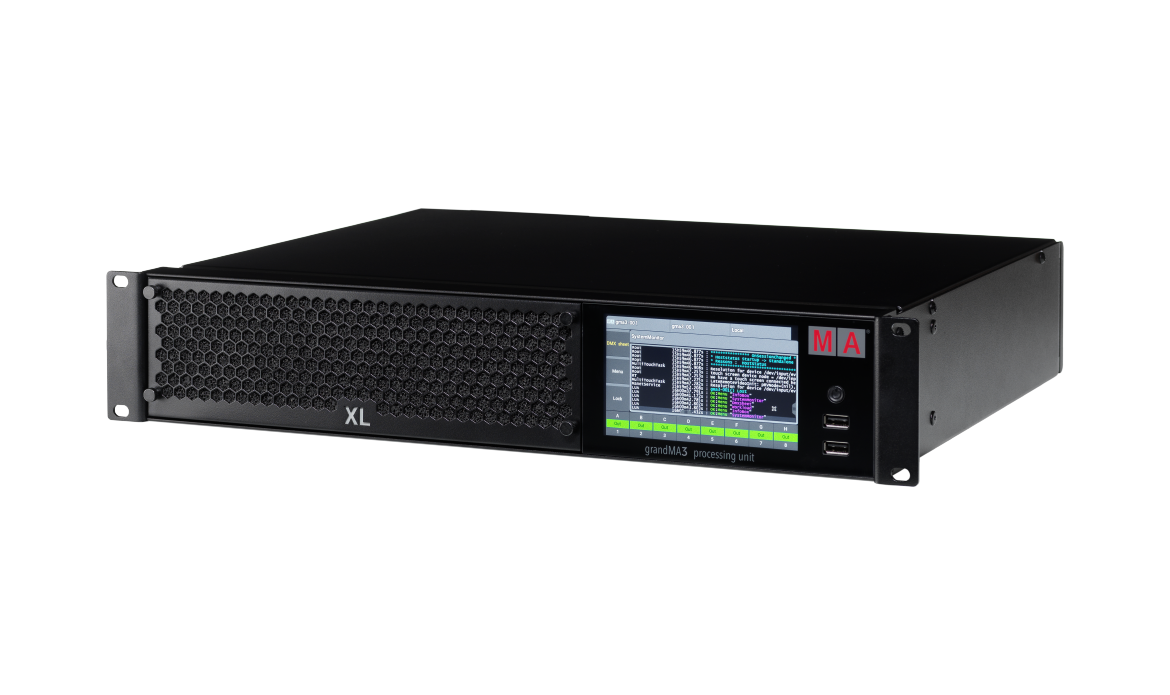

grandMA3 processing unit XL - 16,384 parameter processor

Overview
The grandMA3 processing unit XL from MA Lighting is a 2RU parameter expansion unit for grandMA3 systems. It adds 16,384 parameters with frame-synchronous calculation and provides eight DMX outputs for frame-synchronous DMX output throughout the network, with an integrated touchscreen for system monitoring.

Best for
Expanding the parameter count of grandMA3 consoles and onPC systems on tours and in large installations.

Highlights

• Adds 16,384 parameters to a grandMA3 system
• Frame-synchronous processing and DMX output
• 8 DMX outputs
• Integrated touchscreen for system monitoring
• Compact 2RU rack-mount housing
• Mode2 support for expanding existing grandMA2 systems

Key Specs

• Part Number: MA4010508
• Parameters: 16,384 (HTP/LTP); Mode2: 4,096
• Power: AC 100-240 V, 50/60 Hz, max. 200 VA
• DMX: 8 x DMX512-A out (5-pin XLR female)
• Network: 2 x etherCON/RJ45
• USB: 3 x USB 2.0 (type A)
• Power connector: powerCON TRUE1 (mating connector included)
• Size: 2RU; 19 x 15 x 4 in (482 x 372 x 87 mm)
• Net weight: 12 lb (5 kg)
• Operating temperature: 32-104 °F (0-40 °C)
