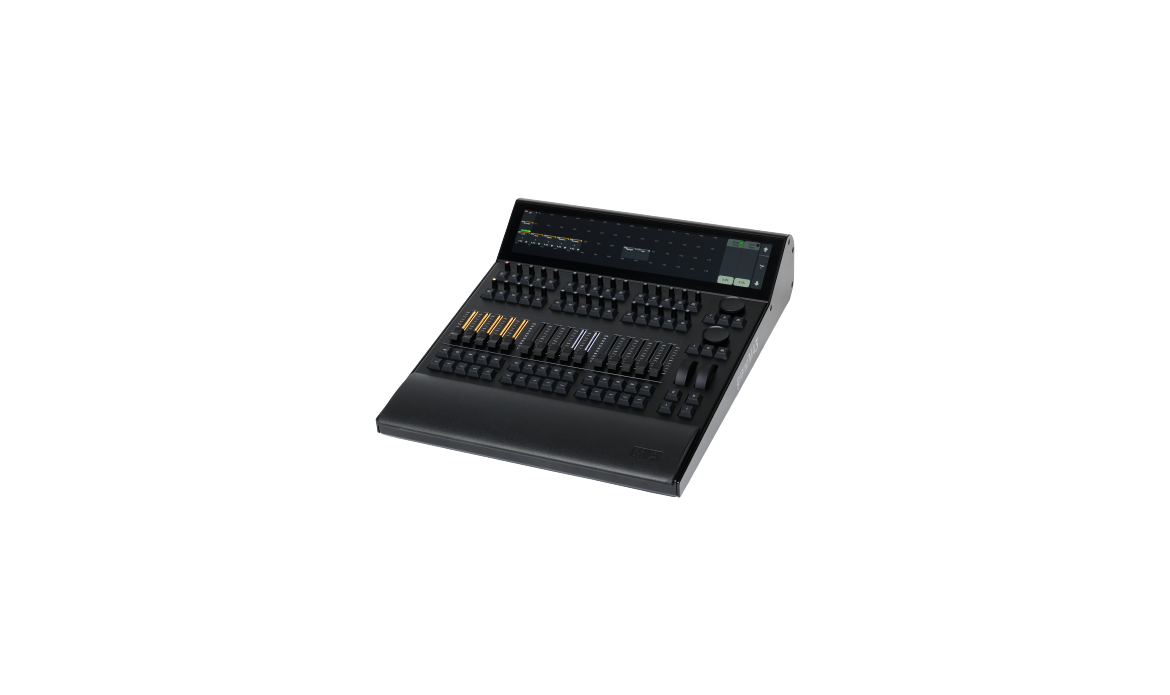

grandMA3 extension

Overview
The grandMA3 extension from MA Lighting adds 60 remote playbacks on a small footprint to any grandMA3 console, replay unit or onPC system. It connects via Ethernet and includes an integrated letterbox touchscreen, motorized faders and RGB backlit encoders.

Best for
Adding playbacks to a grandMA3 system, or as a remote surface for follow spot, key light or media server operators.

Highlights

• 60 separate playbacks
• 15 backlit motorized 60 mm faders
• 30 rotary RGB backlit encoders plus 2 single encoders
• 1 internal letterbox multi-touch screen
• Connects to the grandMA3 system via Ethernet

Key Specs

• Part Number: MA4010504
• Power: AC 100-240 V, 50/60 Hz, max. 75 VA
• Connectors: 1 x powerCON TRUE1, 1 x etherCON/RJ45, 1 x LED desk light (4-pin XLR female)
• Dimensions: 17 x 22 x 7 in (409 x 537 x 169 mm)
• Net weight: 25 lb (11 kg)
• Operating temperature: 32-104 °F (0-40 °C)
