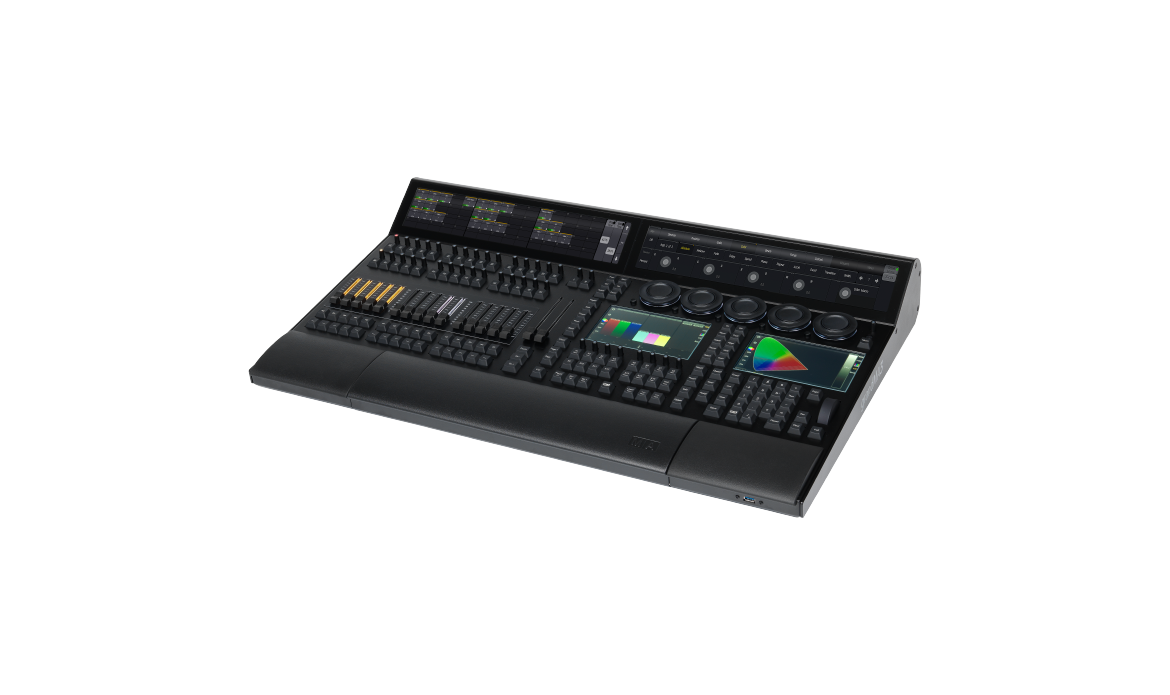

grandMA3 light CRV - 16,384 parameter console

Overview
The grandMA3 light CRV (Control Room Version) from MA Lighting is a low-profile version of the grandMA3 light without foldable monitors. It offers 16,384 parameters, 60 physical playbacks, 16 assignable x-keys and a dedicated master area, with two additional external monitor ports for third-party touchscreens.

Best for
Control rooms and production positions with restricted sightlines that use external touchscreen monitors.

Highlights

• Low-profile design for control rooms with challenging sightlines
• 2 letterbox and 2 command multi-touch screens; up to 4 external screens
• 60 separate playbacks and 16 assignable x-keys
• 41 rotary RGB backlit encoders, 5 backlit dual encoders
• 15 motorized 60 mm faders plus 2 motorized 100 mm A/B faders
• Scales to 250,000 parameters when combined with grandMA3 processing units

Key Specs

• Part Number: MA4010503
• Parameters: 16,384 (HTP/LTP); Mode2: 4,096
• Power: AC 100-240 V, 50/60 Hz, max. 300 VA
• DMX: 6 x DMX512-A out, 1 x DMX512-A in
• Network: 3 x etherCON/RJ45
• External displays: 4 x DisplayPort 1.2
• Other I/O: MIDI in/out, timecode, audio, GPI, 2 x S/PDIF, 6 x USB, 2 x LED desk light
• Dimensions (drawer closed): 811 x 539 x 169 mm
• Net weight: 56 lb (25 kg)
• Operating temperature: 32-104 °F (0-40 °C)
