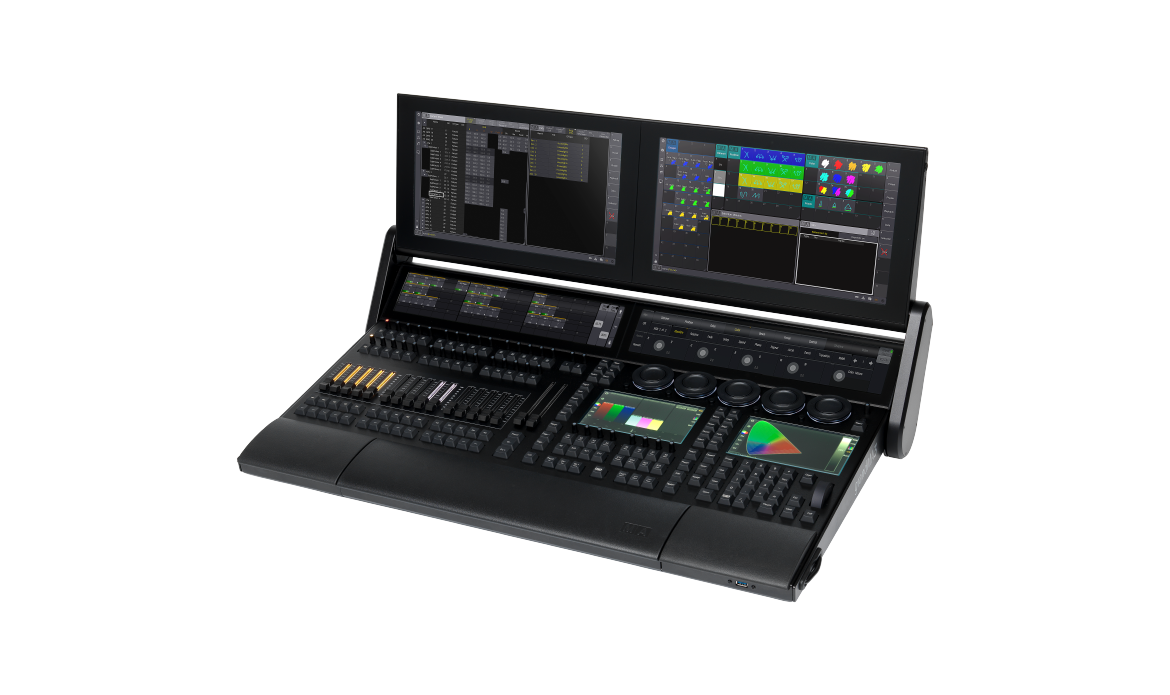

grandMA3 light - 16,384 parameter console

Overview
The grandMA3 light is the work-horse of the MA Lighting grandMA3 range, combining full grandMA3 power with a smaller footprint. It provides 16,384 parameters as standard, 60 physical playbacks, 16 assignable x-keys and a dedicated master area, with two foldable multi-touch monitors, two letterbox and two command screens.

Best for
Touring, theatre, corporate and broadcast productions that need full-size capability in a smaller console.

Highlights

• 60 separate physical playbacks, 16 assignable x-keys and a dedicated master area
• 2 internal foldable multi-touch monitors, 2 letterbox and 2 command multi-touch screens
• 41 rotary RGB backlit encoders and 5 backlit dual encoders
• 15 motorized 60 mm faders plus 2 motorized 100 mm A/B faders
• Scales to 250,000 parameters when combined with grandMA3 processing units
• Runs grandMA3 software and can also run grandMA2 software (Mode2) to expand existing grandMA2 systems

Key Specs

• Part Number: MA4010502
• Parameters: 16,384 (HTP/LTP); Mode2: 4,096
• Power: AC 100-240 V, 50/60 Hz, max. 300 VA
• DMX: 6 x DMX512-A out, 1 x DMX512-A in (5-pin XLR)
• Network: 3 x etherCON/RJ45
• Other I/O: MIDI, LTC timecode, audio in, GPI, 2 x DisplayPort 1.2, S/PDIF, USB
• Power connector: powerCON TRUE1
• Dimensions (folded): 34 x 22 x 8 in (854 x 539 x 181 mm)
• Net weight: 73 lb (33 kg)
• Operating temperature: 32-104 °F (0-40 °C)
