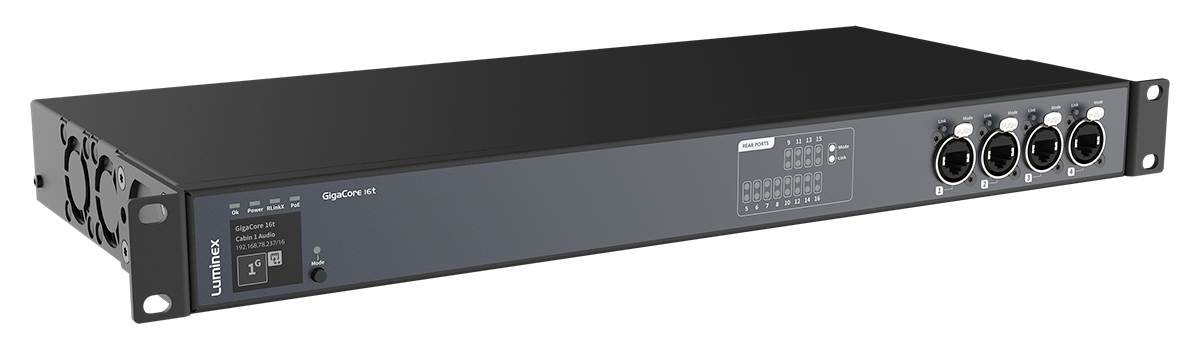

LU0100097-1G-P500 - Luminex GigaCore 16t (1Gb) - 16x1G - PoE++
Regular price
$3,555.00 USD
Sale price
Regular price
Overview
Rugged 19" touring Ethernet switch with 16 Gigabit copper ports, with PoE++ on all copper ports. Pre-configured for ProAV lighting, audio and video networks.
Best for
Touring and rental racks, converged lighting/audio/video networks
Highlights
- 8x etherCON (4 front, 4 rear) and 8x RJ45 (rear), all 1 Gbps
- PoE++ (802.3af/at/bt) on all copper ports
- Dedicated RPSU 5580 connection for redundant power or extra PoE budget
- Managed via built-in web UI or Araneo, with pre-configured Groups (VLANs), RLinkX link redundancy and MultiLinkX link aggregation
Key Specs
- Copper ports: 8x etherCON + 8x RJ45, 1 Gbps
- PoE: PoE++ (802.3af/at/bt) on all copper ports
- Power: 1x powerCON TRUE1 in/out, 100-240 VAC, 50-60 Hz; max 510 W
- Switching capacity: 32 Gbps
- Dimensions (W x D x H): 482 x 204.1 x 44 mm (19", 1U)
- Weight: 4 kg
- Part number: LU0100097-1G-P500
