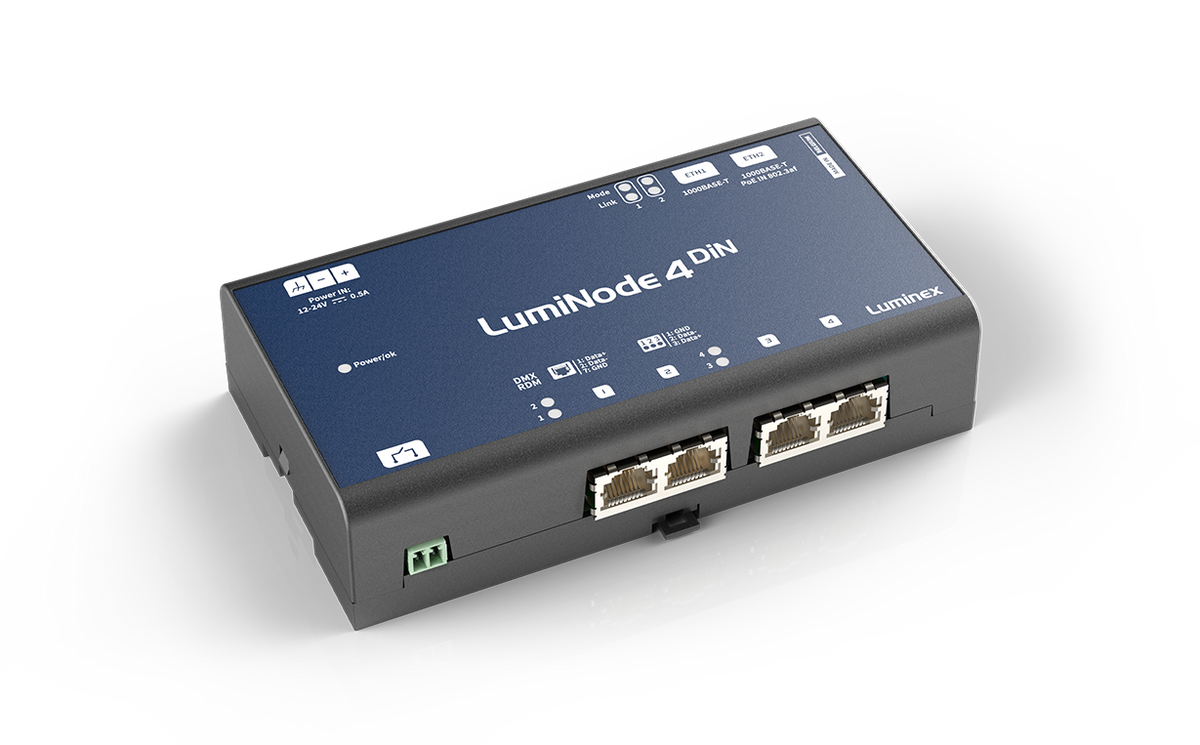

LU0100082-RJ4 - Luminex LumiNode 4 DIN RJ45 (6 Processing engines & 4 DMX ports)
Regular price
$1,057.50 USD
Sale price
Regular price
Overview
DIN-rail Ethernet-to-DMX node with 4 RJ45 DMX/RDM ports and 6 process engines, for fixed installations.
Best for
Electrical cabinets, architectural and fixed installs
Highlights
- 4x RJ45-DMX/RDM ports
- Optical and galvanic isolation per port
- 2x Gigabit RJ45; second port daisy-chains to another node
- 12-24 VDC terminal block and PoE power inputs for redundancy
- Merge modes HTP, LTP, Backup, Switch, X-Fade and Custom, plus soft patch, triggers and snapshots
Key Specs
- Process engines: 6
- DMX/RDM: 4x RJ45-DMX
- Ethernet: 2x RJ45, 10/100/1000 Mbps
- Protocols: Art-Net 1-4, sACN, RTTrPL (BlackTraX), KiNET v1/v2
- Power: 12-24 VDC or PoE (802.3af Class 0); max 10 W
- Mounting: DIN rail (IEC/EN 60715)
- Dimensions (W x D x H): 156.3 x 86 x 35.8 mm
- Part number: LU0100082-RJ4
