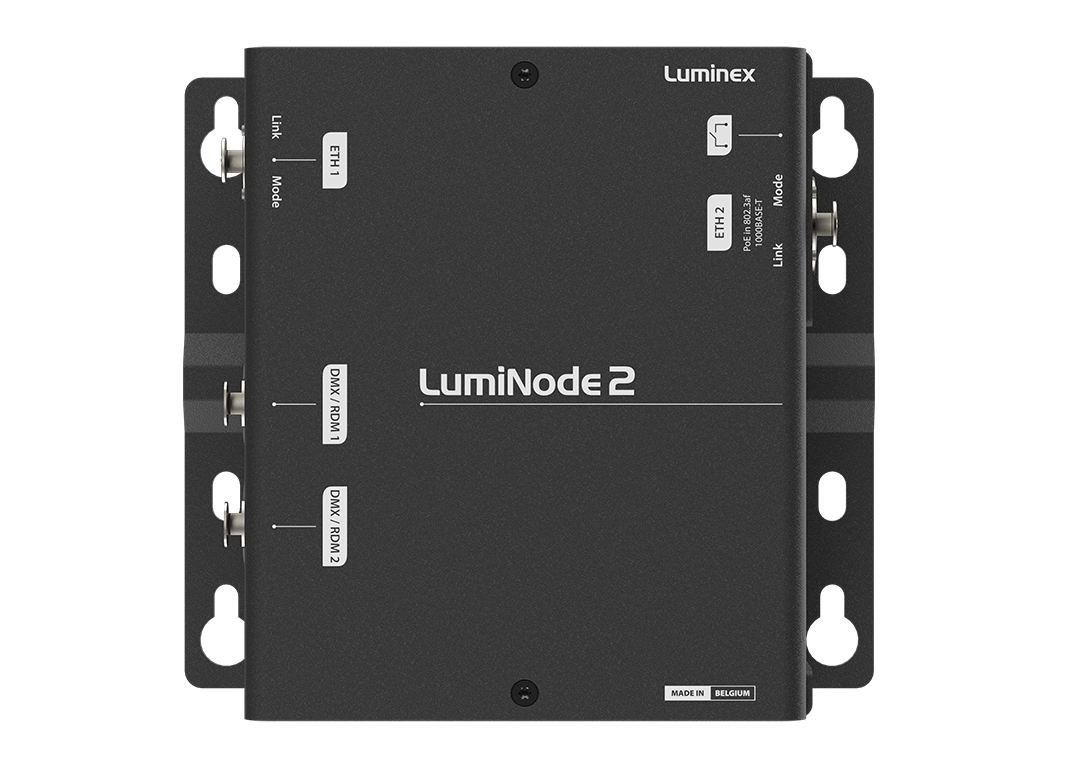

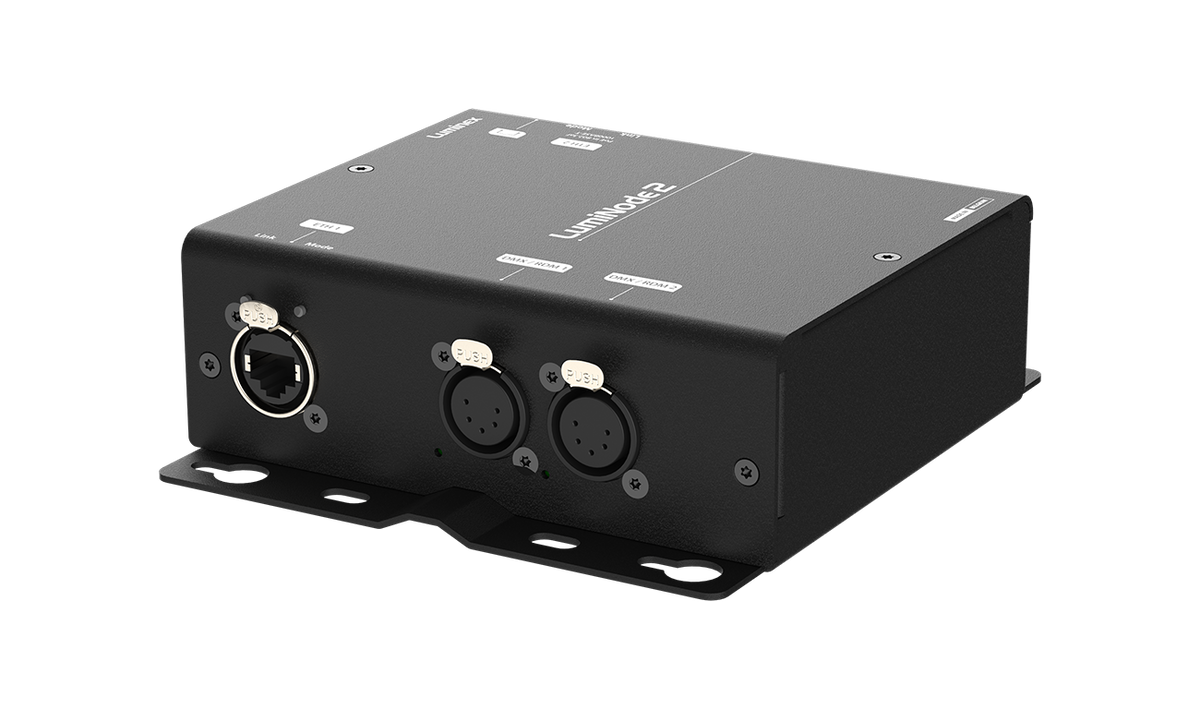

LU0100070 - Luminex LumiNode 2 (4 Processing engines & 2 DMX ports)
Regular price
$1,089.00 USD
Sale price
Regular price
Overview
PoE-powered Ethernet-to-DMX node with 2 DMX/RDM ports and 4 process engines in an all-metal housing for fly bar or wall mounting.
Best for
Theatre fly bars, studio installs, live performance DMX distribution
Highlights
- 2x 5-pin XLR DMX/RDM ports, each configurable as input or output
- Optical and galvanic isolation per port
- 2x Gigabit etherCON ports
- 4 process engines for merging and routing
- Merge modes HTP, LTP, Backup, Switch, X-Fade and Custom, plus soft patch, triggers and snapshots
Key Specs
- Process engines: 4
- DMX/RDM: 2x Neutrik 5-pin XLR female
- Ethernet: 2x etherCON, 10/100/1000 Mbps
- Protocols: Art-Net 1-4, sACN, RTTrPL (BlackTraX), KiNET v1/v2
- Power: PoE (802.3af Class 0); max 8.5 W
- Mounting: truss/fly bar or wall
- Dimensions (W x D x H): 158 x 146 x 50.5 mm; 0.9 kg
- Part number: LU0100070
