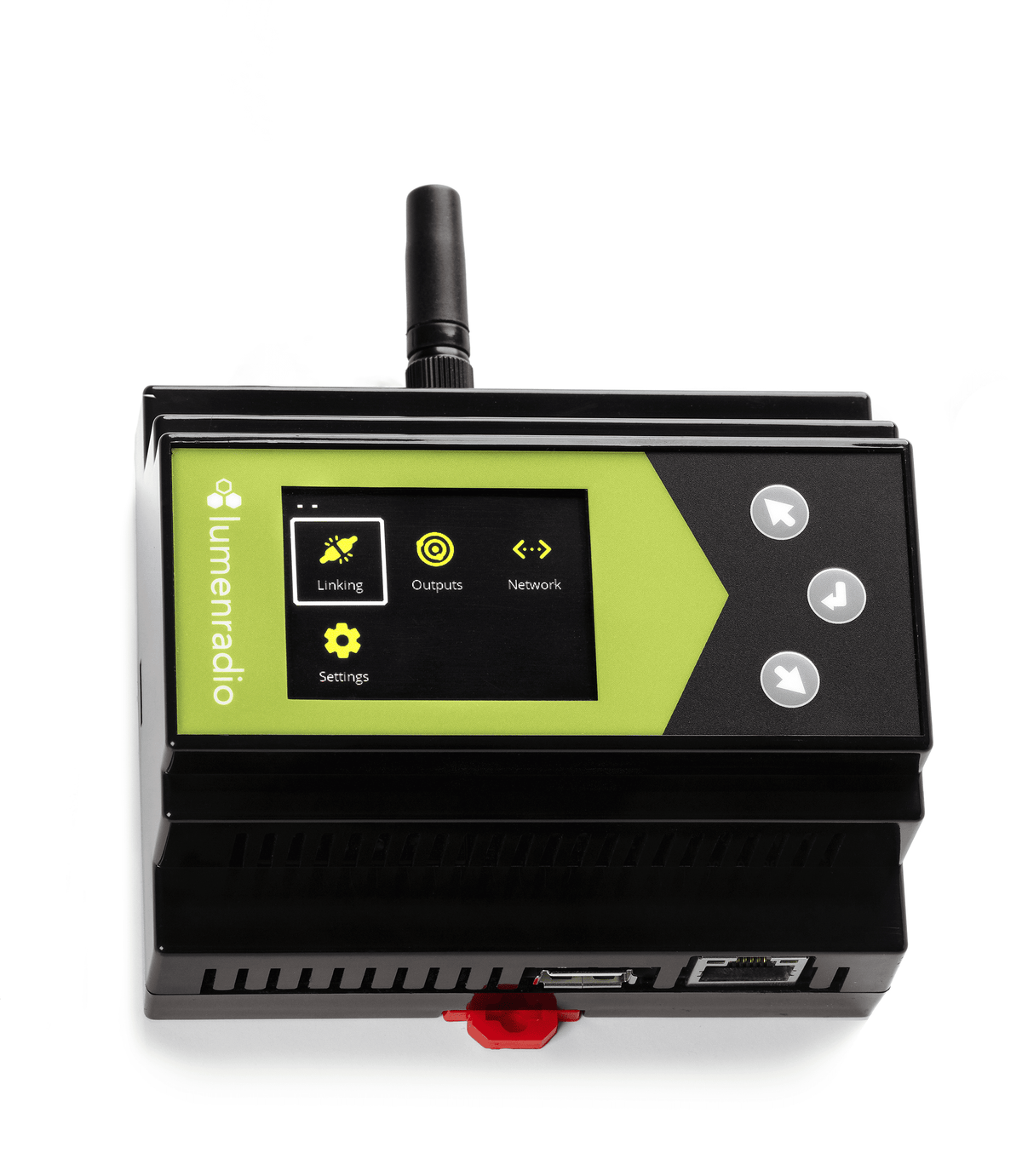

LR800-2313 - Galileo MAX

Overview
Galileo MAX is a two-universe CRMX wireless DMX transmitter in a DIN-rail form factor for architectural and installation lighting. It accepts Art-Net and sACN over Ethernet and is configured through a built-in web interface.

Best for
Permanent indoor or outdoor architectural lighting installations

Highlights

• Transmits two universes wirelessly; links to an unlimited number of receivers
• Art-Net and sACN input over Ethernet with PoE
• Browser-based setup, monitoring and health checks
• 5 ms fixed latency and 128-bit encryption
• Mounts in DIN-rail cabinets or IP65-or-better enclosures

Key Specs

• Protocols: Art-Net, sACN, DMX512-A, RDM; RF: CRMX, CRMX2, W-DMX G3/G4S
• Frequency: 2402-2480 MHz, 5170-5330 MHz, 5490-5590 MHz
• Max RF output: 100 mW at 2.4 GHz (280 mW in the US), 50 mW at 5 GHz
• Antenna connector: RP-SMA
• Power: 12-24 VDC or PoE (IEEE 802.3af), 8.5 W max
• Ethernet: 10/100 Mbps RJ45
• Dimensions: 107 x 93 x 58.7 mm; weight 195 g
• Operating temperature: -20 to +55 °C
• Part number: LR800-2313
