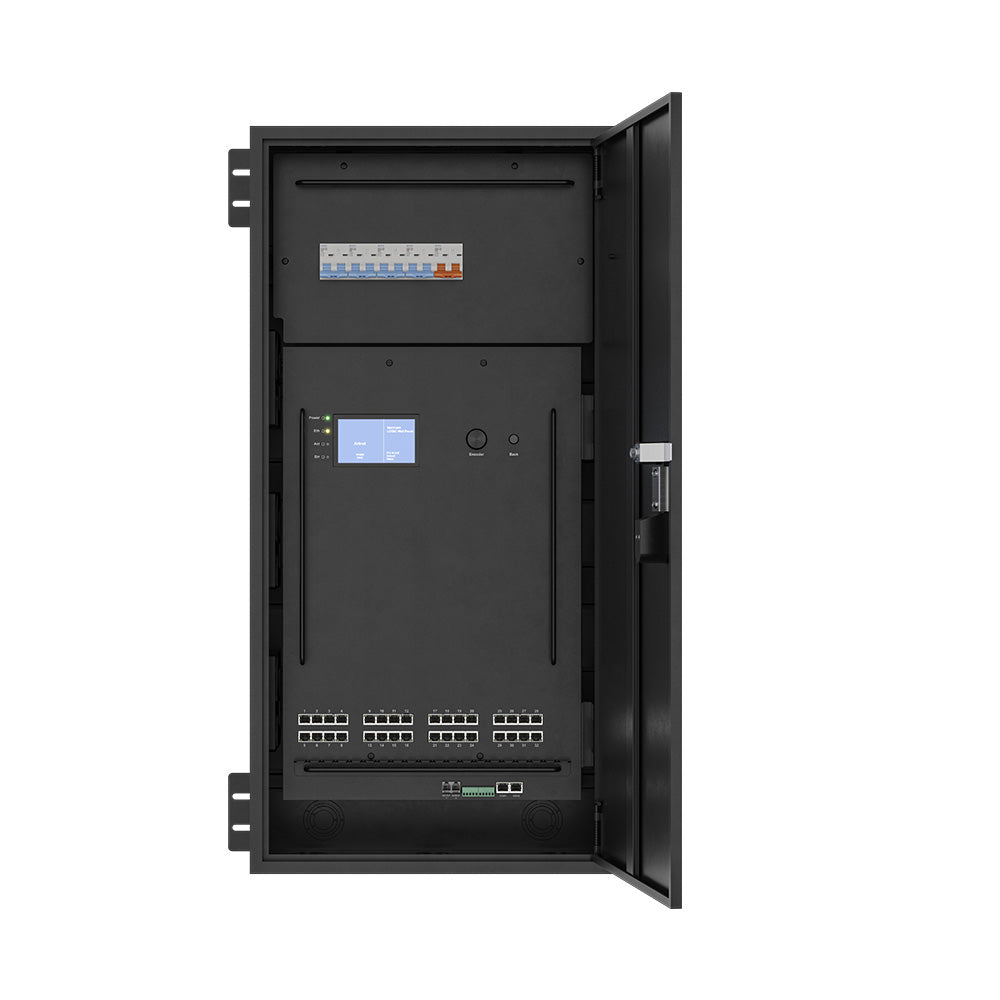

LOGIC Wall Panel - 16 Port
Regular price
$6,030.50 USD
Sale price
Regular price
Overview
The LOGIC Wall Panel is a 16-port rack-mounted Power over Ethernet hub that feeds power and DMX/Art-Net/sACN control to remote LOGIC fixtures, expandable up to 32 ports with LOGIC WP Expansion Kits.
Compatible with
LOGIC architectural fixtures and up to 32 LOGIC Wall Controllers, in installations requiring centralized rack-mounted power and control.
Highlights
- 16 POE++ output ports, expandable to 32 with expansion kits
- Integrated webserver and REST API
- Supports DMX, Art-Net and sACN protocols
- 20U rack-mount chassis
Key Specs
- Ports: 16 (expandable to 32)
- Power per port: 92.5W max; total 4,000W
- Protocol: POE++ (IEEE 802.3bt)
- Weight: 75 lb (34 kg)
- Cabling: CAT6/A shielded required
