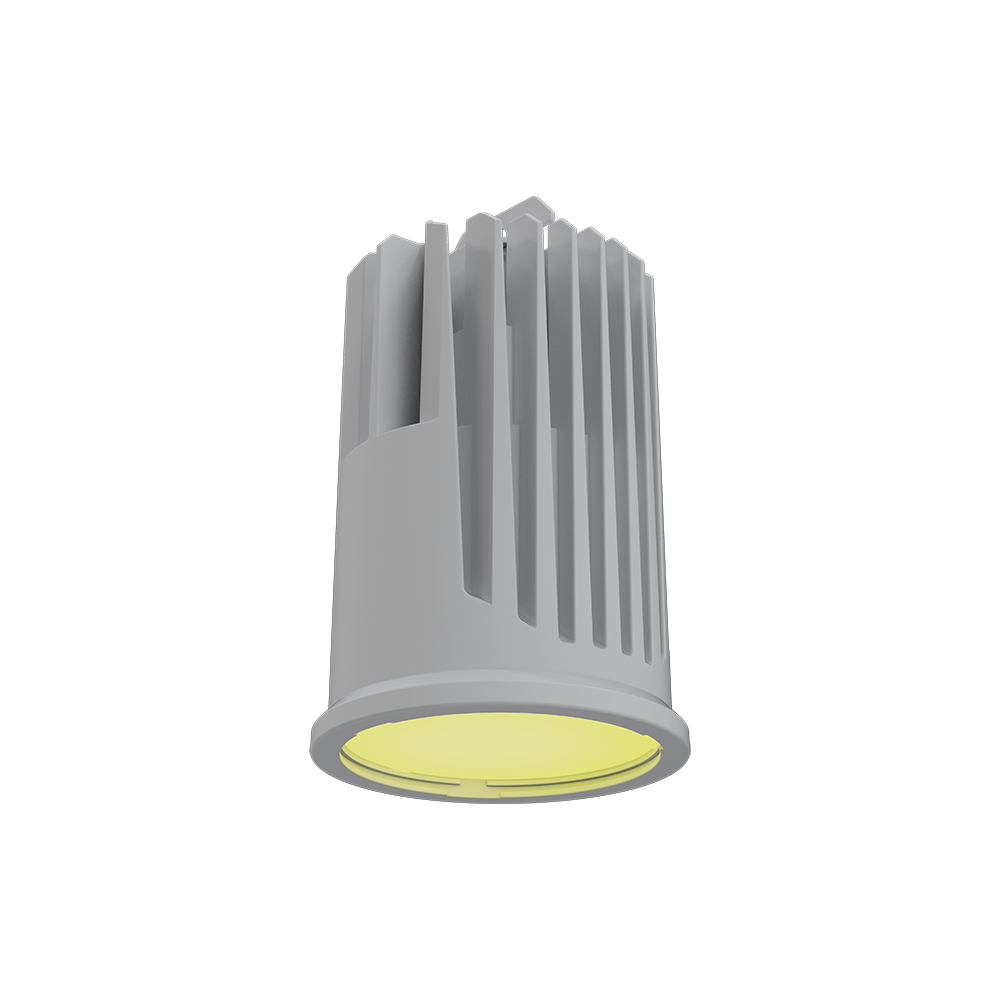

LOGIC AR111 Downlight Medium

Overview
The LOGIC AR111 Downlight M is an architectural recessed downlight built around a single 45W quad-color RGBW LED engine. It runs on Power over Ethernet, combining saturated color mixing with tunable white output over a single Ethernet cable run.

Best for
Architectural and hospitality interiors that need clean, dimmable accent or general lighting without separate low-voltage power runs.

Highlights

• Single quad-color RGBW LED source rated for 50,000 hours
• Powered entirely over Ethernet (POE++), eliminating separate line-voltage wiring
• DMX, RDM, Art-Net and sACN control, plus calendar scheduling via LOGIC Drive 2X
• Works with the AR111 trim ring, honeycomb filter, and pendant/yoke mounting kits

Key Specs

• Light source: 1 quad-color RGBW LED, 45W
• Output: 1,187 lm native beam (572–1,272 lm with optics)
• Beam angle: 11.4° native (10.7°–60.5° with filters/optics)
• Color temperature: 1,800K–10,000K presets
• Control: DMX, RDM, Art-Net, sACN via POE++
• Weight: 2.38 lb (1.08 kg)
