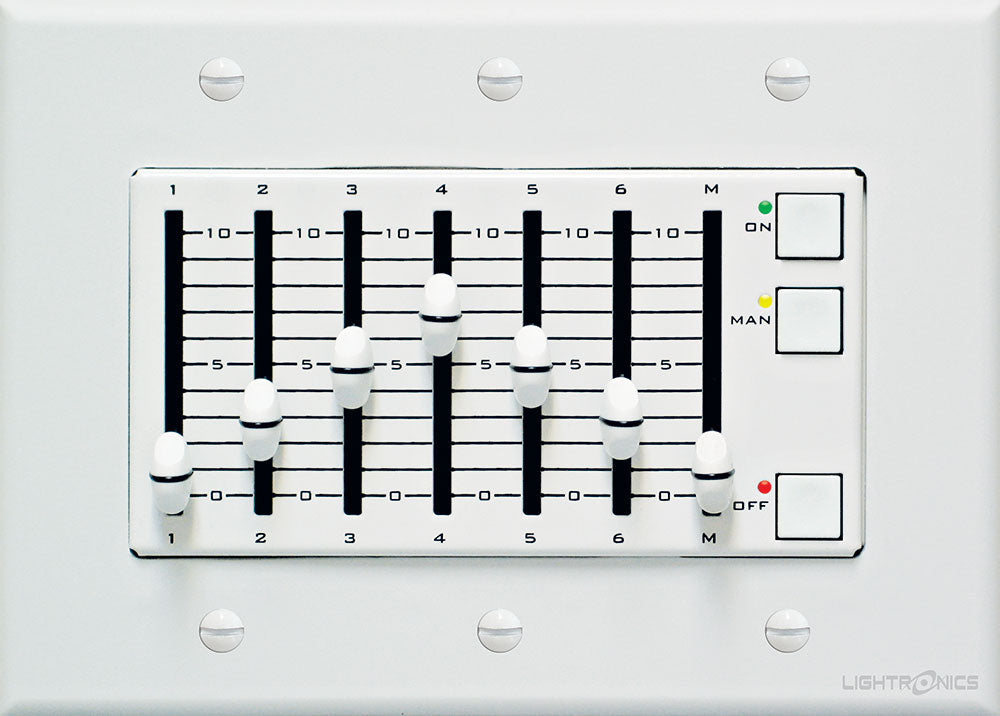

AF3107 - 6-Scene Fader Station with Master, 3-Gang, White

Overview
The AF3107 is a 6-scene fader remote station with a master fader for Lightronics Unity Architectural lighting control. It communicates over RS-485 with the centrally stored scenes.

Best for
Churches, schools, corporate spaces, performance stages, and event venues.

Highlights

• 6 individually adjustable scene faders
• Master intensity fader
• ALL ON and ALL OFF (blackout) functions
• Status LEDs for feedback
• Multiple stations can share a Unity system

Key Specs

• Scenes: 6 with master
• Control protocol: Unity Architectural (LitNet) over bidirectional RS-485
• Power: hardwired low voltage
• Mounting: wall gang box (3-gang)
• Dimensions: 5.43 x 4 x 2.5 in
• Weight: 0.6 lbs (0.27 kg)
• UL listing: N/A

Please note: This station does not switch loads itself. It needs a Unity Architectural enabled Lightronics dimmer or ballast controller on the RS-485 bus.
