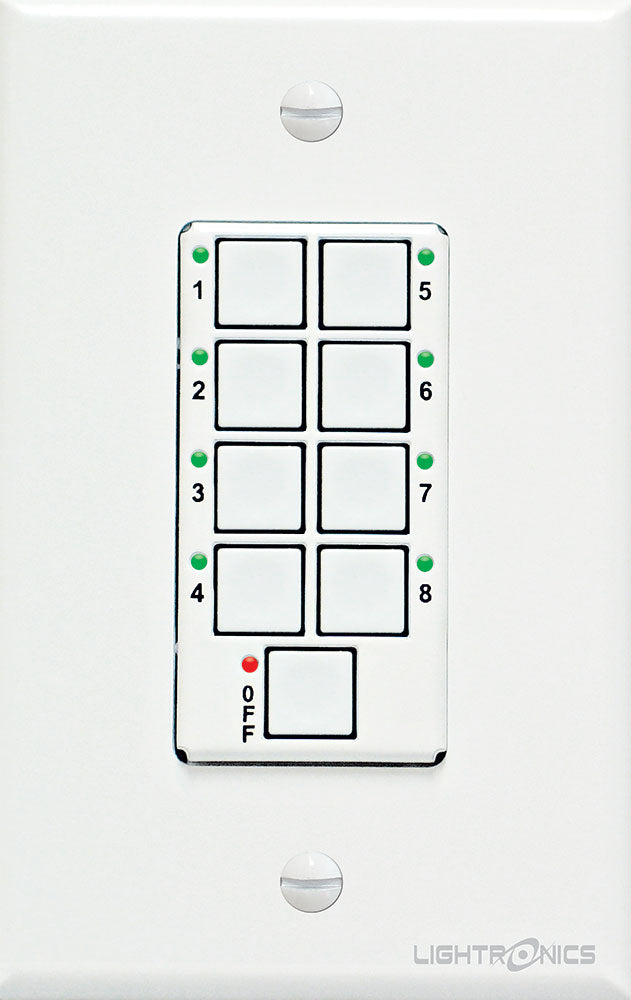

AC1109 - 8-Scene Button Station, 1-Gang, White

Overview
The AC1109 is an 8-scene pushbutton remote station with a dedicated blackout button for Lightronics Unity Architectural lighting control. It recalls scenes stored in the system and does not switch loads directly.

Best for
Churches, schools, corporate spaces, performance stages, and event venues.

Highlights

• 8 scene pushbuttons with LED indicators
• Dedicated blackout button
• Low-voltage wall station using bidirectional RS-485
• Recalls scenes stored in Unity Architectural dimmers and ballast controllers
• Multiple stations can share a Unity system for distributed control
• Fits a standard wall gang box

Key Specs

• Scenes: 8
• Control protocol: Unity Architectural (LitNet) over bidirectional RS-485
• Power: hardwired low voltage from the Unity system
• Mounting: wall gang box (1-gang)
• Dimensions: 4 x 2 x 1.5 in
• Color: White
• Weight: 0.25 lbs (0.11 kg)
• UL listing: N/A

Please note: This station does not switch loads itself. It needs a Unity Architectural enabled Lightronics dimmer or ballast controller on the RS-485 bus to store and play the scenes.
