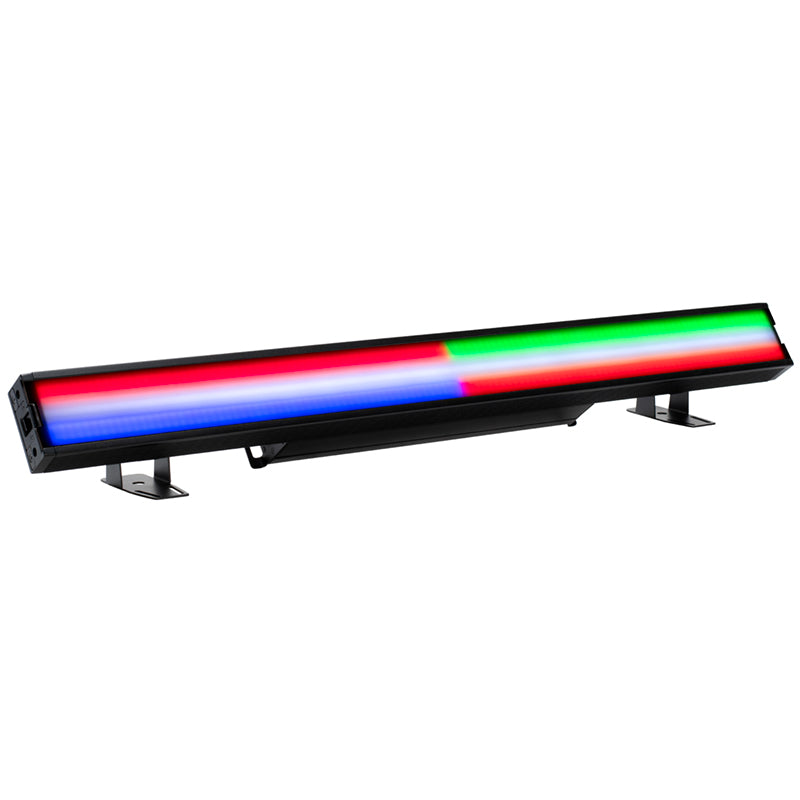

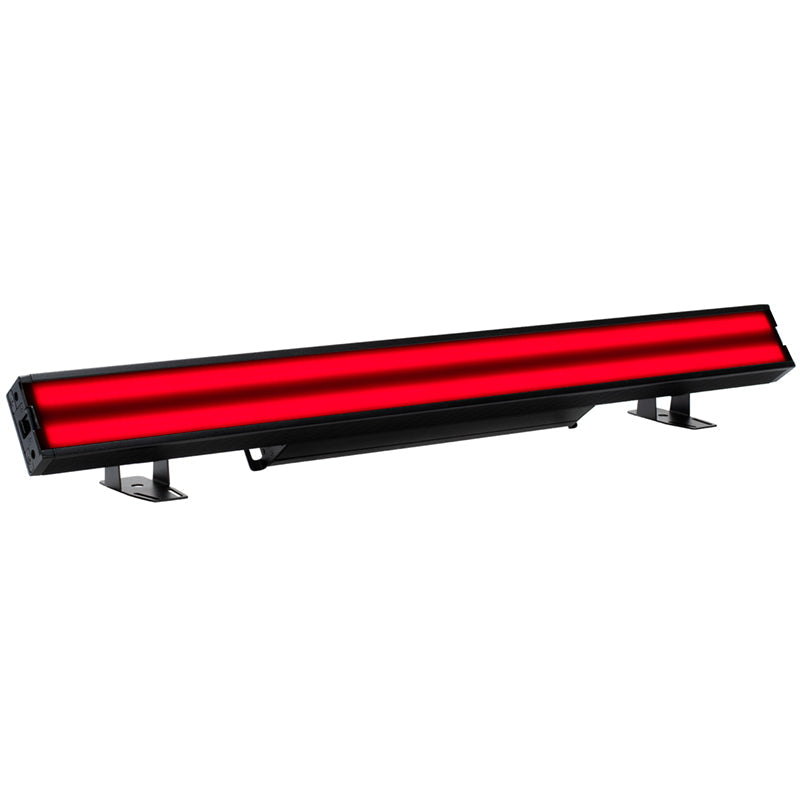

Jolt Bar FX2 - IP20 RGBCW LED

Overview
A 1 m linear LED fixture with a central strip of cool white strobe LEDs surrounded by RGB color-mixing LEDs in independently controlled zones. It covers strobe, wash and chase effects from one unit.

Best for
Concert productions, festival stages, rental inventories and nightclub installations.

Highlights

• 448 RGB SMD LEDs and 112 x 5W cool white SMD LEDs
• 32 RGB zones and 16 white zones for pixel chases and strobe effects
• Ramp up/down, lightning and random strobe effects
• DMX, RDM and built-in Aria X2 wireless
• 180° variable brackets for floor or hanging use; frost filter included

Key Specs

• Light source: 448 x 0.5W RGB SMD + 112 x 5W cool white SMD LEDs
• White LEDs: 7400K typical, CRI 86
• Beam angle: 76.6° (field 92°)
• DMX channels: 17 modes from 6 to 129 channels
• Strobe rate: 0.35-25Hz
• Power consumption: 214W @120V; 208W @230V
• Power linking: 5 units @120V; 11 units @230V
• IP rating: IP20
• Dimensions: 39.4" x 4.07" x 3.98" (1000 x 103.5 x 101 mm)
• Weight: 13 lb (5.9 kg)
