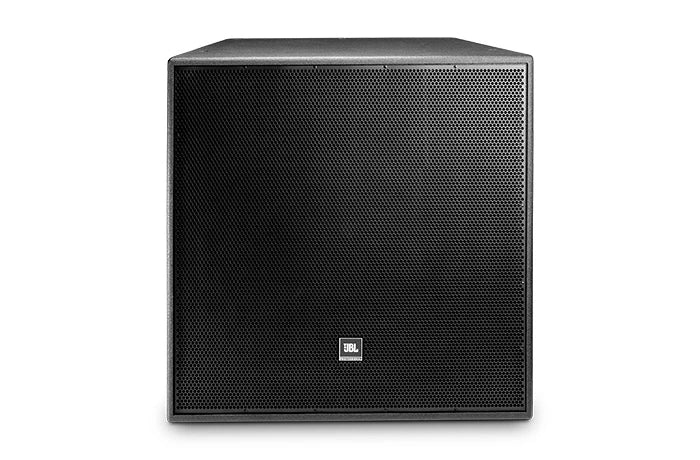

PD544 - JBL 15" 2-way full-range, 40 X 40
Regular price
$4,680.00 USD
Sale price
Regular price
Overview
A 15-inch horn-loaded two-way full-range loudspeaker from the JBL PD500 series with 40 x 40 degree coverage.
Best for
Sports facilities, auditoriums, houses of worship, performance spaces
Highlights
- Large Progressive Transition waveguide with rotatable orientation
- Switchable bi-amp/passive crossover
- Weather-resistant WRC/WRX variants available
Key Specs
- Drivers: JBL 2031H 15 in LF, JBL 2432H 1.5 in HF
- Frequency response: 90 Hz - 17 kHz (+/-3 dB)
- Coverage: 40 deg x 40 deg
- Sensitivity: 106 dB (1 W, 1 m)
- Max SPL: 133 dB continuous / 139 dB peak (passive)
- Power: 500 W (2 hr) / 300 W (100 hr) passive
- Dimensions: 30.8 x 30.8 x 26.4 in (782 x 783 x 670 mm)
- Weight: 152 lb (69 kg)
- Part number: PD544
