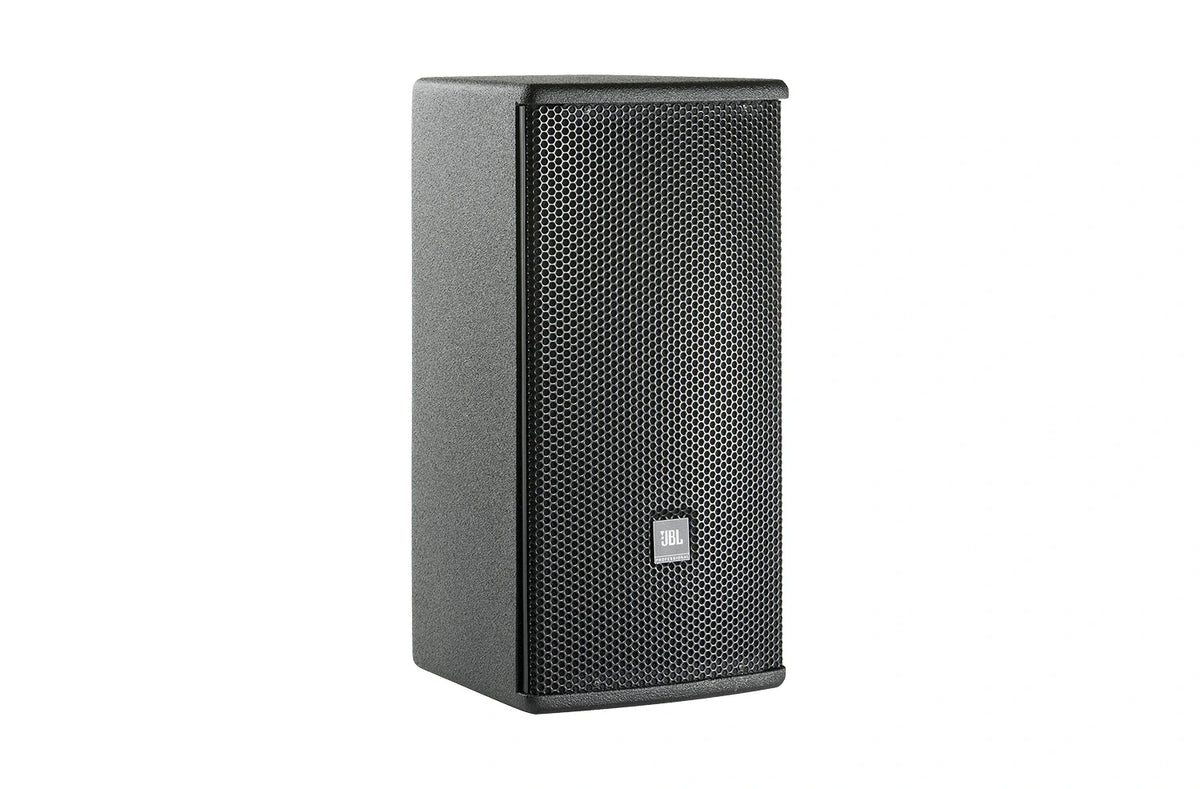

AC18/26 - JBL Compact 2-Way Loudspeaker with 1 x 8" LF. 120° x 60° Coverage, Passive

Overview
The AC18/26 is a compact 2-way loudspeaker with an 8 in woofer and a rotatable waveguide, from the JBL AE Series.

Best for
Fixed installations such as theaters, houses of worship, auditoriums, clubs, sports venues and themed venues

Highlights

• 120 x 60 degree coverage (rotatable waveguide also allows 90 x 50)
• 8 in low-frequency driver with 1 in exit compression driver
• FIR tuning for consistent phase and coverage
• Dual Neutrik NL4 connectors plus screw terminal
• Mounting points for U-bracket, OmniMount-type brackets and stands

Key Specs

• Part number: AC18/26
• Model: AC18/26
• Finish: black
• Frequency range (-10 dB): 52 Hz - 20 kHz
• Frequency response (+/-3 dB): 63 Hz - 19 kHz
• Sensitivity (1 W @ 1 m): 92 dB
• Max SPL: 116 dB
• Power rating: 375 W AES
• Impedance: 8 ohms
• Coverage: 120 x 60 degrees
• Dimensions (H x W x D): 18.5 x 9.4 x 10.0 in (470 x 238 x 254 mm)
• Net weight: 28.2 lb (12.8 kg)
