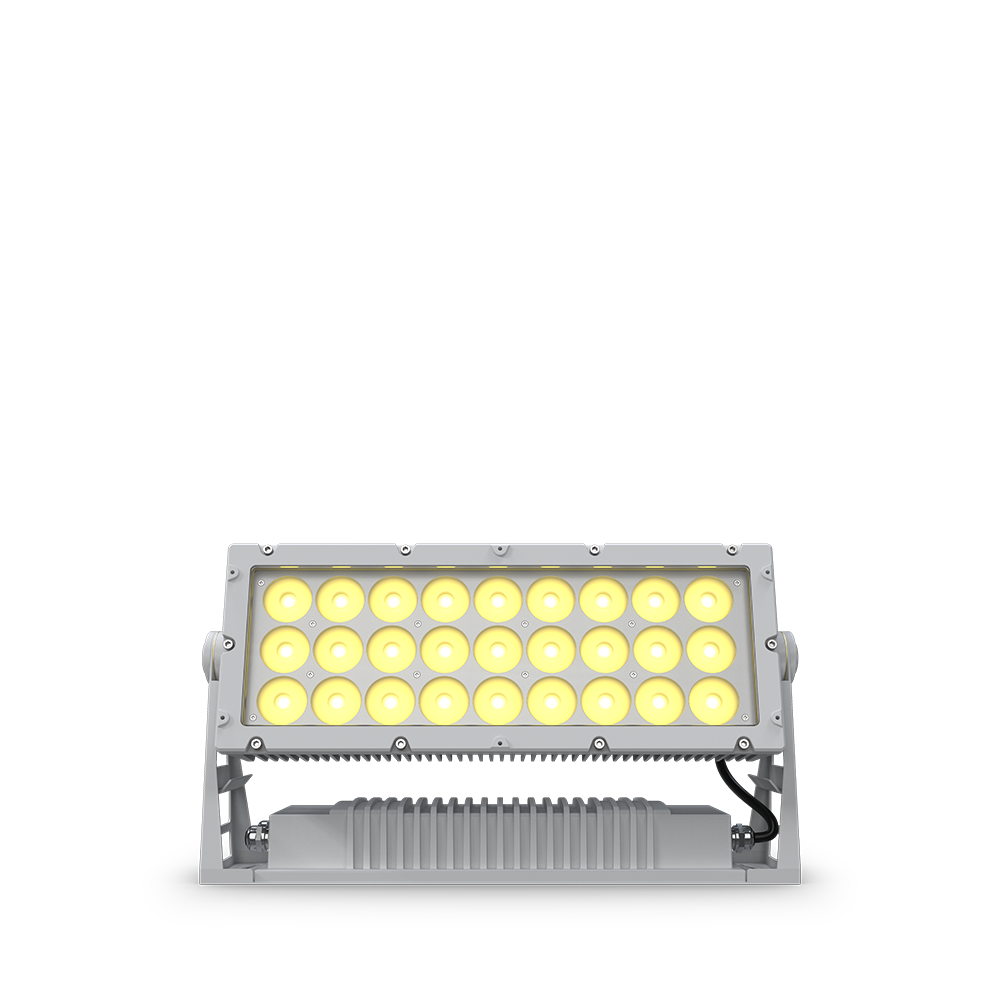

Ilumipanel ML2

Overview
The Ilumipanel ML2 is a mid-size LED wash panel in Iluminarc's Ilumipanel range, built around 27 quad-color (RGBL) LEDs at 20 W each in an IP67, IK10-rated housing. It delivers high lumen output in a more compact chassis than the full-size LL panel.

Best for
Architectural and façade washing where a narrow standard beam and high impact resistance are needed in a mid-size fixture.

Highlights

• 27 quad-color (RGBL) LEDs at 20 W each
• IP67 and IK10 rated housing for outdoor, impact-resistant installations
• USITT DMX-512a/RDM control
• Accepts optional spread filters (filter frame included)
• Wide operating temperature range, –40°F to 113°F

Key Specs

• Light source: 27 x 20 W quad-color (RGBL) LEDs
• Output: 11,884 lumens with installed optics
• Beam angle: 8° standard (20.8°–40° with optional filters)
• IP rating: IP67, IK10 impact rated
• Control: USITT DMX-512a, RDM
• Power: 100–277 VAC, 50/60 Hz, 255–315 W
• Weight: 25.4 lb (11.5 kg)
