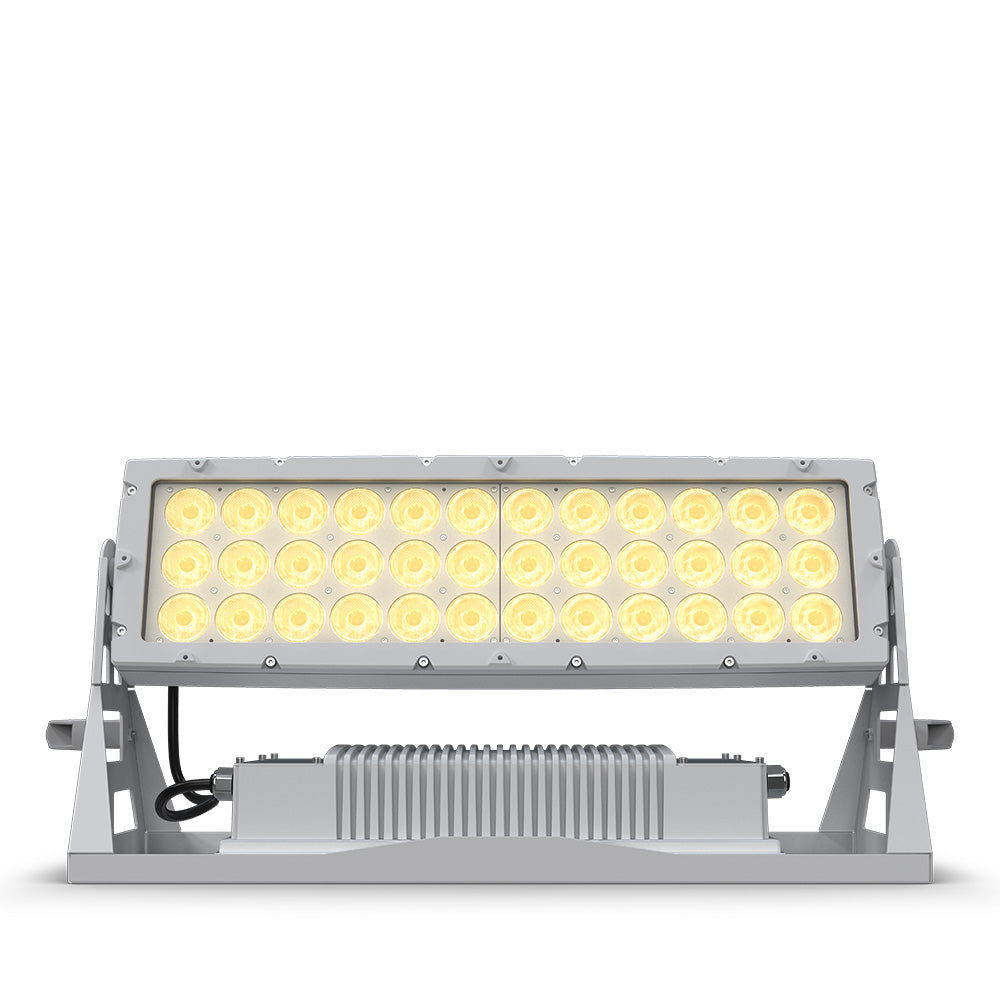

Ilumipanel LL

Overview
The Ilumipanel LL is a large-format LED wash panel from Iluminarc, built around 36 quad-color (RGBL) LEDs at 20 W each for high-output architectural and event lighting. Its IP67 housing and narrow standard beam make it suited to long-throw façade and building washes.

Best for
Long-throw façade washing, large-scale architectural lighting, and event backdrops that need high output at a distance.

Highlights

• 36 quad-color (RGBL) LEDs at 20 W each for high lumen output
• IP67-rated housing for outdoor and wet-location use
• USITT DMX-512a/RDM control
• Interchangeable spread filters install without breaking the IP seal
• 50,000-hour rated LED life

Key Specs

• Light source: 36 x 20 W quad-color (RGBL) LEDs
• Output: 18,228 lumens with standard optics
• Beam angle: 6.4° standard (19.9°–37° with optional filters)
• IP rating: IP67
• Control: USITT DMX-512a, RDM
• Power: 100–277 VAC, 447–463 W depending on voltage
• Weight: 69 lb (31.3 kg)
